Series 38 Manual winch rigid frame with 2 section rigid S44 Broadacre Stump Jump Harrow. 1.72m. Transport width: 2.68m.
Centre Frame only, no wings, winch, locking pins or hinges included.
Please note that 3 point linkage pins are not supplied.
Designed to fit Category I or II three-point linkage systems, Murray Series 38 Harrow Frames allow transport between paddocks and through smaller sized gates.
Each unit features a top class frame designed and backed by Murrays years of experience.
Simplicity and strength are combined in a compact frame utilising a rigid linkage-mounted centre section and manually folded wings.
Murray Series 38 Harrow Frames suit Category C Harrows including Series 04 Diamond Harrow sections and Series 08 Stump Jump Harrow sections.
Specifications:
- Main Frame 50 x 50 x 5 RHS
- ALKO 350kg Brake Winch. 4 section frame comes with 1 - Brake Winch as standard. 5 and 6 section frames come with 2 Brake Winches as standard.
- Lock out hinge mechanism
- Anchor points to suit desired Harrow
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

MURRAY 2.59M MANUAL RIGID FRAME BROADACRE STUMP JUMP HARROW

2.31m Murray Series 03 Levelling Harrow 4 Rank Deep Sections & Standard Drawbar, Light Duty. Complete Set.
3501 - 2.31m (7ft 7in) 2/12 Tine, 1/16 Tine - 40kg.
Murray Levelling Harrows are an excellent choice to complement sowing or cultivation implements. Designed to level soil and seedbeds, the flexible frame design provides durability in all soil types. 3 and 4 rank versions are suitable for use to cover seed in light to medium soils in conjunction with combines and seed drills. The 5 rank model is used in heavier soils to counter weed growth and break down large clods. It is a popular implement that complements cultivators, scarifiers or chisel plows.
If you require additional weight to work your land, a Heavy version of our Series 03 Levelling Harrows is available. Made from heavier High Carbon Steel, the Tine Spacing remains the same as the standard version.
The Series 03 Levelling Harrow is available in either 3 or 4 row widths allowing extensions in increments of 235mm (9 ¼) to suit primary machines of almost any width. This allows a combination of harrow sections to be configured to suit your application.
A full range of standard and heavy duty drawbars are available to correctly match your soil conditions and available working width of your equipment. Harrow sets complete with drawbars range from 2.31m (77) to 5.58m (184) in width.
Specifications:
- Tine Spacing 76mm (3in).
- Tine Length 190mm (7 1/2in) approx.
- Centre to centre of Front Hooks 235mm (9 1/4in).
Features:
- High Carbon Cut Tines.
- Light models manufactured from 25 x 6mm carbon steel and Heavy models from 32 x 6mm.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY SERIES 03 LEVELLING HARROW 2.31M,4 RANK DEEP SECTIONS & STD DRAWBARS-LIGHT DUTY-COMPLETE SET

Series 08 - 4.31m Stump Jump Harrow 3 Point Linkage Hoist Lift Type (4 point pull) featuring Series 21 Hoist Frame - Complete Set.
Please note 2nd picture shows how harrows are attached to frame, but the harrows in that picture are not stump jump harrows. Picture is for example only.
Complete Set Comprises - Front Lift Drawbar, Harrow sections, Rear Lift Drawbar including Lift Clips and Series 21 3-Point Linkage Hoist Frame.
8031 - 5 section 4.31m (14ft 2in) - 349kg.
If your ground is uneven, roughly cleared or contains light stony areas then the flexible Murray series 08 Stump Jump Harrow is the secondary tillage implement to consider.
Ruggedly constructed using High Carbon Steel, the floating stump jump action is a time tested agricultural implement.
Suitable for breaking down clods, final seed preparation of ground and levelling pugged up or packed down heavy pasture country, Stump Jumps are also ideal for use in the preparation stage of vegetable growing and weed control.
Each Stump Jump section is attached to the drawbar by four hitching points one ahead of each row of tines, to ensure true tracking and correct stump-jump action.
Sets complete with drawbars range from coverage of 1.72mm (5ft 8in) to 8.63m (28ft 4in).
Available as a Lift Type set utilising our Series 21 Three Point Linkage Hoist Frame for ease of transportation. Set includes Front Lift Drawbar, Harrow sections, Rear Lift Drawbar including Lift Clips and Hoist Frame.
100% Australian made and owned.
Specifications:
- Coverage 4.31m (14ft 2in).
- Weight 349kg
- Tine spacing 44mm (1 3/4in).
- Tine length 197mm (7 3/4in) approx.
- Centre to centre of Front Hooks 222mm (8 3/4in).
- 5 Ranks / 20 Tines.
Features:
- 4 Point Pull (4PP). Cut Tine ends, pipe spacers throughout
section.
- Manufactured from 32 x 10mm carbon steel.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 4.31M STUMP JUMP HARROW COMPLETE SET - 3PL HOIST LIFT TYPE (4 POINT PULL)

Farm Aid disc hillers are entirely Australian products Designed and manufactured by our team here in Coopers Plains from Australian Materials.
No corners have been cut in their construction, they are built to serve and built to last!
Model:
FA800 13in with 1 1/4in round shank (Bare)
Bed maker assemblies and components also available.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

FARM-AID 13IN DISC HILLER WITH SHANK ONLY - BARE - FARM AID - FA800

3.02m Murray Series 03 Levelling Harrow 5 Rank Deep Sections & Standard Drawbar, Heavy Duty. Complete Set.
3805 - 3.25m (10ft 8in) 2/15 Tine, 2/20 Tine - 90kg.
Murray Levelling Harrows are an excellent choice to complement sowing or cultivation implements. Designed to level soil and seedbeds, the flexible frame design provides durability in all soil types. 3 and 4 rank versions are suitable for use to cover seed in light to medium soils in conjunction with combines and seed drills. The 5 rank model is used in heavier soils to counter weed growth and break down large clods. It is a popular implement that complements cultivators, scarifiers or chisel plows.
If you require additional weight to work your land, a Heavy version of our Series 03 Levelling Harrows is available. Made from heavier High Carbon Steel, the Tine Spacing remains the same as the standard version.
The Series 03 Levelling Harrow is available in either 3 or 4 row widths allowing extensions in increments of 235mm (9 ¼) to suit primary machines of almost any width. This allows a combination of harrow sections to be configured to suit your application.
A full range of standard and heavy duty drawbars are available to correctly match your soil conditions and available working width of your equipment. Harrow sets complete with drawbars range from 2.31m (77) to 5.58m (184) in width.
Specifications:
- Tine Spacing 76mm (3in).
- Tine Length 190mm (7 1/2in) approx.
- Centre to centre of Front Hooks 235mm (9 1/4in).
Features:
- High Carbon Cut Tines.
- Light models manufactured from 25 x 6mm carbon steel and Heavy models from 32 x 6mm.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY SERIES 03 LEVELLING HARROW 3.25M, 5 RANK DEEP SECTIONS & STD DRAWBARS-HEAVY DUTY-COMPLETE SET

Heavy duty trailing tandem disc plough designed for heavy cultivation in hard conditions. The angle is hydraulically adjusted and has a transport width of under 2.4m.
Features:
Available in 28, 32, 36, 40, 44 and 48 plate models at 9 inch disc spacing's.
Fitted with 24 inch x 6mm or 26 inch x 6mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacturing failure.
All models are fitted with hydraulic gang adjustment which allows the gangs to be folded parallel with the main frame, to be under 2.4m overall width.
Gangs can also be opened right up to no angle at all when only a fine till of the topsoil is required.
Solid cast of spools throughout the gangs provide ballast weight in the gangs, where it counts, rather than in the main frame. Each is individually machined to suit the disc for extra strength.
Flanged disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Buster tine removes centre ridge to create a level finish.
Integrated furrow fillers are standard.
Fitted with four Land Cruiser wheels on a 5 tonne axle. Hydraulic wheel lift is standard.
40mm square high tensile gang bolts.
Fully adjustable drawbar height with parallel lift for better transportation.
Wheelkit locking arms reduce stress on the hydraulics when transporting.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400 psi.
Australian made Eaton cylinders.
Prong type scrapers are standard formed scrapers on request.
Parking jack is standard.
Specifications:
Approx Weight: 3290kg
No. of Bearings: 12
No. of axles: 4
Cutting width: 3.43m (11ft 3inch)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS TH100 HD TRAILING TANDEM DISCS - 28 PLATE X 24 INCH DISCS - 0972

Medium duty offset discs ideal for all agricultural and cropping operations. With hydraulic gang and levelling control.
Manufactured in Italy.
Specifications:
Working width: 3700mm
Discs: 32
Weight: 2900kg
Features:
Hydraulic gang adjustment ( Separate ram for both gangs)
Manual levelling adjustment (Optional hydraulic)
12.5/80-15 PR14 tyres
Hydraulic drawbar offset (Optional manual)
660mm scollped discs
6mm thick disc blades
230mm disc spacing
8 bearings (double taper roller) GB280-320
12 bearings (double taper roller) GB370
Bearing protectors
40mm square shaft
150 x 100 x 8mm chassis and gang beam
Swivel hitch
Options:
Manual drawbar offset
Hydraulic levelling adjustment
Models:
GB280 2.8M 24 DISCS 2280kg
GB320 2.8M 28 DISCS 2550kg
GB370 2.8M 32 DISCS 2900kg
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

GB 3.7M, 32 DISCS (110-150HP) MEDIUM DUTY OFFSET DISCS

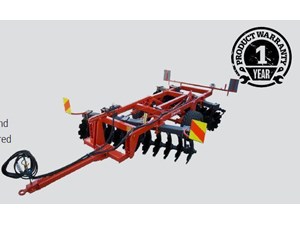

Features:
- 150 x 100 x 8mm chassis
- 200 x 120 x 8mm gang beams
- 28 (710mm) scalloped discs on this CVH-71 model (8mm thick)
- Disc scrapers
- 10 (260mm) disc spacing
- Eight double taper roller bearings with a 5 year warranty
- Reinforced bearing protectors
- Manual gang angle adjustment from 8 - 24 degrees
- Manual fore/aft adjustment with spring
- 40mm square silicon manganese steel disc axles
- 400 / 60 x 15.5 flotation tyres
- Swivel hitch
Super heavy offset discs for demanding agricultural and cropping applications. High quality French manufactured with a 5 year bearing warranty.
Working Width = 4,000 mm
Overall Width = 4,250 mm
Required HP Range = 200 - 250 hp
Weight = 3,100 kg
Number of Discs = 32
Options available:
- Hydraulic fore/aft adjustment
- Hydraulic drawbar adjustment
- Hydraulic gang angle adjustment
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

GB 4M, 32 DISCS (200-250HP) HEAVY DUTY OFFSET DISCS

Series 38 Manual winch rigid frame with 3 section rigid S08 Stump Jump Harrow. 3.45m. Transport width: 3.57m.
Centre Frame only, no wings, winch, locking pins or hinges included.
Please note that 3 point linkage pins are not supplied.
Designed to fit Category I or II three-point linkage systems, Murray Series 38 Harrow Frames allow transport between paddocks and through smaller sized gates.
Each unit features a top class frame designed and backed by Murrays years of experience.
Simplicity and strength are combined in a compact frame utilising a rigid linkage-mounted centre section and manually folded wings.
Murray Series 38 Harrow Frames suit Category C Harrows including Series 04 Diamond Harrow sections and Series 08 Stump Jump Harrow sections.
Specifications:
- Main Frame 50 x 50 x 5 RHS
- ALKO 350kg Brake Winch. 4 section frame comes with 1 - Brake Winch as standard. 5 and 6 section frames come with 2 Brake Winches as standard.
- Lock out hinge mechanism
- Anchor points to suit desired Harrow
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 3.45M (4 SECTION) RIGID FRAME STUMP JUMP HARROW

The RM80 offset disc cultivating plough is designed for extremely tough conditions. It is similar to the RM75 with the main difference being in the greater number of bearings and shorter axles in the disc gang assemblies.
Features:
Ideal for primary and secondary tillage for 75HP-165HP tractors.
Fitted with 24inch x 6mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacturing failure.
Fitted with two 11×16 flotation wheels on a 5 tonne axle. Hydraulic wheel lift is standard. All models fitted with 8inch Australian made Eaton Rams.
40mm square high tensile gang bolts.
Single pressure screw can be adjusted to transfer weight to the rear of the cultivator, resulting in even disc penetration. Option of fixed or floating position.
Flanged disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Fully adjustable drawbar.
Solid cast spools throughout the gangs provide ballast weight in the gangs, where it counts, rather than the main frame. Each is individually machined to suit the disc for extra strength.
9 inch disc spacing.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400 psi.
Prong type scrapers are standard formed scrapers available on request.
Parking jack is standard.
Optional furrow fillers available.
Specifications:
Approx Weight: 2190kg
No of bearings: 12
No of axles: 6
Cutting width: 3.2m (10ft 6inch)
Options:
0953 Optional Furrow filler (not sold separately)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS RM80 HD TRAILING OFFSET 28 PLATE 24 INCH 6MM SCALLOP DISCS - 0862, SUIT 75-165HP

The coil tines are 30mm square, and are used for primary and secondary cultivation.
They are ideal where deep penetration is required without bringing subsoil up to the surface. They are commonly used in market garden operations to penetrate beneath the normal level of cultivation.
The coil allows the tine to move, assisting penetration and reducing horsepower needed. Coil tines do not disturb the surface as much as the wider chisel plough tines. This is useful in operations as pasture renovation and plough or rotary hoe pan breaking.
The finer tine is also good for secondary cultivation where a heavy machine is needed for heavy soils. Overall width of the machine is 9 wider than the cut width ie: 5 tine is 5 9, 7 tine is 7' 9' and so on.
Features
The frame is 100 x 100 x 6mm, similar to the rigid chisel plough
Cat 1 & 2 Linkage
Extra tines can be fitted if required to reduce tine spacing
30mm square high resistance hardened double coil tines.
Available in 5, 7, 9 and 11 tine sizes with tines at 12 adjustable spacings
Horsepower requirements vary widely but 8-10 HP per tine is a rough guide
Excellent underframe trash clearance of 520mm
The wheel kit consists of a pair of 14 Holden wheels, height adjustable, fitted on the outside of the machine (increasing the overall width approx 450mm (18)
Options:
0200 Depth Wheels (Pair Holden)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS COIL TINE CHISEL PLOUGHS 9 TINES - 0206

Murray 8 sections with 2 piece bars & master bar, 7.72m Series 04 Diamond Harrow System. Complete set with standard drawbars.
4108 - 8 sections w/ 2 pce bars & master bar - 7.72m
Suitable for open country and lighter loamy soils, Murray Diamond Harrows are an effective implement used for weed control and final seedbed preparation.
Specialising in shattering soil crusts allowing improved aeration and moisture penetration, it will give your crops every chance of reliable germination and subsequent vigour.
The Diamond frame design is constructed using flat bar material providing the Harrow with strength and rigidity. It features replaceable bolt-in 16mm square section High Carbon Steel tapered tines with a working depth between 50 to 80mm (2 to 3).
Murray Diamond Harrows are supplied in sets complete with drawbars, ranging from 2 sections 2.03m (68) to 10 sections 10.16m (334). Lift type sets using our 3 Point Linkage Hoist Frame (Series 21) are available, making transportation of your Harrows easy and convenient. The complete set is comprised of a Front Lift Drawbar, Harrow Sections, Rear Lift Drawbar and 3 Point Linkage Hoist Frame (Series 21).
Features:
- 2 Point Pull (2PP). Replaceable bolt-in 16mm square section High Carbon Steel tapered tines.
- Manufactured from flat bar material
Specifications:
-30 kg (66lb).
- Coverage 0.97M (38").
- Tine Spacing 51mm (2").
- Tine Length 152mm (6") approx
- Centre to centre of Front Hooks 508mm (20").
- 5 Rank / 20 Tines.
- Tapered Tines with working depth between 50-80mm (2"- 3")
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 7.72M DIAMOND HARROW SYSTEM 8 SECTIONS W/2 PCE BARS & MASTER BAR-COMPLETE SET WITH STD DRAWBAR

Find Tillage AND Seeding For Sale. Browse 972 Tillage AND Seeding listings from Farm Supplies Machinery & Equipment.

New & Used Tillage AND Seeding For Sale in Australia

Farm Supplies Machinery & Equipment

Sale Price

MURRAY 2.59M MANUAL RIGID FRAME BROADACRE STUMP JUMP HARROW

MURRAY SERIES 03 LEVELLING HARROW 2.31M,4 RANK DEEP SECTIONS & STD DRAWBARS-LIGHT DUTY-COMPLETE SET

MURRAY 4.31M STUMP JUMP HARROW COMPLETE SET - 3PL HOIST LIFT TYPE (4 POINT PULL)

FARM-AID 13IN DISC HILLER WITH SHANK ONLY - BARE - FARM AID - FA800

MURRAY SERIES 03 LEVELLING HARROW 3.25M, 5 RANK DEEP SECTIONS & STD DRAWBARS-HEAVY DUTY-COMPLETE SET

JOHN BERENDS TH100 HD TRAILING TANDEM DISCS - 28 PLATE X 24 INCH DISCS - 0972

GB 3.7M, 32 DISCS (110-150HP) MEDIUM DUTY OFFSET DISCS

GB 4M, 32 DISCS (200-250HP) HEAVY DUTY OFFSET DISCS

MURRAY 3.45M (4 SECTION) RIGID FRAME STUMP JUMP HARROW

JOHN BERENDS RM80 HD TRAILING OFFSET 28 PLATE 24 INCH 6MM SCALLOP DISCS - 0862, SUIT 75-165HP

JOHN BERENDS COIL TINE CHISEL PLOUGHS 9 TINES - 0206

MURRAY 7.72M DIAMOND HARROW SYSTEM 8 SECTIONS W/2 PCE BARS & MASTER BAR-COMPLETE SET WITH STD DRAWBAR

Farm Supplies Machinery & Equipment

Dealer Address
