Farm Supplies Machinery & Equipment

Series 35 Forged Tine Levelling Harrow System (Category L) "Extra Heavy" Harrow Sections including optional drawbar.
4 Rank (Length) Deep Harrow Sections (May be used with seeding combines, air seeders, etc.)
Model:
35003 - 12 Tine (3W x 4L deep) 2.3m wide (min) - this listings price. Heavy Duty drawbar options listed below (2.3m - 5.6m wide options).
Note: Picture shown first is 5 Rank (Length).
Information on the Harrow System:
- If you want to level your land and need a Harrow that will stand up to the demands of todays conditions, Murrays manufacture an Extra Heavy Levelling Harrow. Built from heavier High Carbon Steel, each Tine is specially forged revealing a diamond shape designed to level your ground. Tine spacing remains the same as our standard Series 03 version.
- The Series 35 is suitable for heavier clay type soils and is used after primary or secondary tillage. Available in three and four row widths allowing flexibility to build up Harrow Sections to suit the width of your primary machine. 100% Australian made and owned.
Specifications of the Harrow Sections:
- Tine Spacing 76mm (3in)
- Tine length 190mm (7 1/2in) approx.
- Centre to Centre of Front Hooks 235mm (9 3/4in)
Features:
- Forged Tine ends. Manufactured from 25 x 10mm carbon steel.
Heavy Duty Drawbars (only) options:
3074 - 7ft 7in (10 bar anchors) 9kg
3075 - 8ft 5in (11 bar anchors) 10kg
3076 - 9ft 2in (12 bar anchors) 13kg
3077 - 9ft 11in (13 bar anchors) 14kg
3078 - 10ft 8in (14 bar anchors) 15kg
3079 - 11ft 5in 16 row (15 bar anchors) 17kg
3080 - 12ft 2in (16 bar anchors) 21kg
3081 - 13ft (17 bar anchors) 27kg
3082 - 13ft 9in 20 row (18 bar anchors) 29kg
3083 - 14ft 6in (19 bar anchors) 31kg
3084 - 15ft 3in (20 bar anchors) 33kg
3085 - 16ft 24 row (21 bar anchors) 34kg
3073 - 16ft 10in (22 bar anchors) 36kg
3086 - 18ft 4in 28 row (24 bar anchors) 40kg
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 2.3M WIDE (3W X 4L TINES) EXTRA HEAVY DUTY LEVELLING HARROW (2.3M - 5.6M)

Rotavator Blade specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX ROTAVATOR BLADE SQUARE (LH) 90 X 8MM

Landside Short specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX LANDSIDE SHORT - RH & LH (KVERNELAND)

Heavy duty trailing tandem disc plough designed for heavy cultivation in hard conditions. The angle is hydraulically adjusted and has a transport width of under 2.4m.
Features:
Available in 28, 32, 36, 40, 44 and 48 plate models at 9 inch disc spacing's.
Fitted with 24 inch x 6mm or 26 inch x 6mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacturing failure.
All models are fitted with hydraulic gang adjustment which allows the gangs to be folded parallel with the main frame, to be under 2.4m overall width.
Gangs can also be opened right up to no angle at all when only a fine till of the topsoil is required.
Solid cast of spools throughout the gangs provide ballast weight in the gangs, where it counts, rather than in the main frame. Each is individually machined to suit the disc for extra strength.
Flanged disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Buster tine removes centre ridge to create a level finish.
Integrated furrow fillers are standard.
Fitted with four Land Cruiser wheels on a 5 tonne axle. Hydraulic wheel lift is standard.
40mm square high tensile gang bolts.
Fully adjustable drawbar height with parallel lift for better transportation.
Wheelkit locking arms reduce stress on the hydraulics when transporting.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400 psi.
Australian made Eaton cylinders.
Prong type scrapers are standard formed scrapers on request.
Parking jack is standard.
Specifications:
Approx Weight: 3290kg
No. of Bearings: 12
No. of axles: 4
Cutting width: 3.43m (11ft 3inch)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS TH100 HD TRAILING TANDEM DISCS - 28 PLATE X 26 INCH DISCS - 0960

Pigtail Tine specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX PIGTAIL TINE - 35 X 35 X 580 RH

Reversible point specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX REVERSIBLE POINT - 295 X 65 X 8MM

Power Harrow Blade specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX POWER HARROW BLADE - 170MM (RH)

Power Harrow Tine specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX POWER HARROW TINE - 300MM

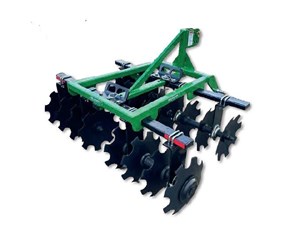

Designed for small to medium size tractors.
Popular cultivation tool used to break up soil for preparing crops or controlling weeds. Discs can cut up and mix in trash, are very hard wearing, long lasting and easy to use.
Fitted with 28mm (1 1/8in) square high tensile gang bolt axles and high quality triple sealed bearings.
14-18 plate models fitted with 75x75x6mm double beam whilst 10-12 plate models are fitted with main single beam and angle support bracket.
Cat 1/2 linkage.
Clamped on by U-bolts for simple adjustment.
Bellota Boron discs are manufactured under strict quality specifications that ensure the right hardness and uniformity throughout the disc. This includes clamp hardening to prevent distortion, lathe turning of the edges and hardened to 50HRc for low wear and long life.
Features:
No of Discs 18
Disc Diameter 550mm (22inch)
Disc Thickness 5mm
HP (min) 40HP
No. Bearings 6
Working Width 2050mm (6ft 9in)
Weight 465kg
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS MEDIUM DUTY OFFSET DISCS - 18 PLATE X 22 INCH DISCS - 0252, MIN 40HP

Round Countersunk Square Hex Bolt & Nut specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX ROUND COUNTERSUNK SQUARE HEX BOLT & NUT - M12 X 30MM

SPAREX ROUND COUNTERSUNK SQUARE HEX BOLT & NUT - 1/2" X 70MM

Tine specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX TINE REPLACEMENT FOR PEGORARO
