4.87m Murray Series 03 Levelling Harrow 4 Rank Deep Sections & Standard Drawbar, Heavy Duty. Complete Set.
3612 - 4.87m (16ft) (24 Row) 3/12 Tine, 3/16 Tine - 118kg.
Murray Levelling Harrows are an excellent choice to complement sowing or cultivation implements. Designed to level soil and seedbeds, the flexible frame design provides durability in all soil types. 3 and 4 rank versions are suitable for use to cover seed in light to medium soils in conjunction with combines and seed drills. The 5 rank model is used in heavier soils to counter weed growth and break down large clods. It is a popular implement that complements cultivators, scarifiers or chisel plows.
If you require additional weight to work your land, a Heavy version of our Series 03 Levelling Harrows is available. Made from heavier High Carbon Steel, the Tine Spacing remains the same as the standard version.
The Series 03 Levelling Harrow is available in either 3 or 4 row widths allowing extensions in increments of 235mm (9 ¼) to suit primary machines of almost any width. This allows a combination of harrow sections to be configured to suit your application.
A full range of standard and heavy duty drawbars are available to correctly match your soil conditions and available working width of your equipment. Harrow sets complete with drawbars range from 2.31m (77) to 5.58m (184) in width.
Specifications:
- Tine Spacing 76mm (3in).
- Tine Length 190mm (7 1/2in) approx.
- Centre to centre of Front Hooks 235mm (9 1/4in).
Features:
- High Carbon Cut Tines.
- Light models manufactured from 25 x 6mm carbon steel and Heavy models from 32 x 6mm.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY SERIES 03 LEVELLING HARROW 4.87M, 4 RANK DEEP SECTIONS & STD DRAWBAR-HEAVY DUTY-COMPLETE SET

CS Series Linkage disc cultivator 1.8m, 16 plate x 22 inch discs.
Designed for light-medium (BS) and medium-heavy (CS) secondary tillage applications, such as orchard and vegetable farming, general farming, weed control and fire breaks.
Features:
- Spring-mounted headstock (BS)
- Square DURAX axles
- Triple sealed, self-aligning bearings
- Gang angle adjustment for tillage control (CS)
Specifications:
- 22 inch discs
- 16 discs
- Weight: 550kg
- 1.8m cut
- 50hp required
- Cat 1 linkage.
Options:
- Trash scraper set
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JARRETT IMPLEMENTS 1.8M LINKAGE DISC CULTIVATOR CS SERIES 22INCH DISCS

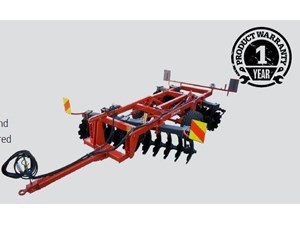

Heavy duty trailing tandem disc plough designed for heavy cultivation in hard conditions. The angle is hydraulically adjusted and has a transport width of under 2.4m.
Features:
Available in 28, 32, 36, 40, 44 and 48 plate models at 9 inch disc spacing's.
Fitted with 24 inch x 6mm or 26 inch x 6mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacturing failure.
All models are fitted with hydraulic gang adjustment which allows the gangs to be folded parallel with the main frame, to be under 2.4m overall width.
Gangs can also be opened right up to no angle at all when only a fine till of the topsoil is required.
Solid cast of spools throughout the gangs provide ballast weight in the gangs, where it counts, rather than in the main frame. Each is individually machined to suit the disc for extra strength.
Flanged disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Buster tine removes centre ridge to create a level finish.
Integrated furrow fillers are standard.
Fitted with four Land Cruiser wheels on a 5 tonne axle. Hydraulic wheel lift is standard.
40mm square high tensile gang bolts.
Fully adjustable drawbar height with parallel lift for better transportation.
Wheelkit locking arms reduce stress on the hydraulics when transporting.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400 psi.
Australian made Eaton cylinders.
Prong type scrapers are standard formed scrapers on request.
Parking jack is standard.
Specifications:
Approx Weight: 3980kg
No. of Bearings: 20
No. of axles: 8
Cutting width: 5.26m (17ft 3inch)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS TH100 HD TRAILING TANDEM DISCS - 44 PLATE X 24 INCH DISCS - 0976

Murray 1.83m, Series 06 Kinked Spring Tine 3 Rank Harrow System - Medium Duty- Complete Unit - 6001.
The Series 06 is a medium duty Spring Tine Harrow System popular with farmers for levelling operations in conjunction with primary and secondary tillage implements.
Series 06 Harrows employ double spring tines available in Kinked or Straight Tines, both 10mm in diameter. The tine angle is adjustable to suit your field conditions.
3 rank versions are available in three sizes ranging from 1.37m (4ft 6in) to 2.28m (7ft 6in). Murrays also manufacture an extra wide 14in (335mm) Rank Spacing Straight Tine units which seeks to provide superior trash flow handling capabilities.
Manual lifting has been eliminated with harrows able to be folded and travel with the principal implement.
Specificatons:
- 1.83m
- Weight: 77.5kg
- Tine Spacing for 3 rank models - 75mm (3in)
- Tine diameter is 10mm, Kinked (standard) or Straight Tine (Optional)
- Tine Length 450mm (17 3/4in) approx
- Rank Spacing 235mm (9 1/4in) STD 3 Rank
- 1 Mount Arm per unit
Features:
- Kinked design Tines as standard.
- Straight design Tines optional.
- This Harrow is designed to fit on to the rear bar of scarifiers, chisel plows, cultivators etc.
- Adjustable Tine angle.
Optional:
- Straight Tines
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

MURRAY 1.83M KINKED SPRING TINE 3 RANK HARROW MEDIUM DUTY COMPLETE UNIT - SERIES 06

Murray 2.28m, Series 06 Kinked Spring Tine 4 Rank Harrow System - Medium Duty- Complete Unit - 6021.
The Series 06 is a medium duty Spring Tine Harrow System popular with farmers for levelling operations in conjunction with primary and secondary tillage implements.
Series 06 Harrows employ double spring tines available in Kinked or Straight Tines, both 10mm in diameter. The tine angle is adjustable to suit your field conditions.
4 rank versions are available in three sizes ranging from 1.37m (4ft 6in) to 2.28m (7ft 6in). Murrays also manufacture an extra wide 14in (335mm) Rank Spacing Straight Tine units which seeks to provide superior trash flow handling capabilities.
Manual lifting has been eliminated with harrows able to be folded and travel with the principal implement.
Specificatons:
- 2.28m
- Weight: 143kg
- Tine Spacing for 4 rank models - 56mm (2 1/4in)
- Tine diameter is 10mm, Kinked (standard) or Straight Tine (Optional)
- Tine Length 450mm (17 3/4in) approx
- Rank Spacing 235mm (9 1/4in) STD 3 Rank
- 2 Mount ArmS per unit
Features:
- Kinked design Tines as standard.
- Straight design Tines optional.
- This Harrow is designed to fit on to the rear bar of scarifiers, chisel plows, cultivators etc.
- Adjustable Tine angle.
Optional:
- Straight Tines
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

MURRAY 2.28M KINKED SPRING TINE 4 RANK HARROW MEDIUM DUTY COMPLETE UNIT - SERIES 06

Heavy duty rotary hoes intended for large farms, specialised operations and contractors. They are designed to work in heavy conditions with a wide choice of accessories.
The versatility allows better tillage results on many ground types.
Features:
170 HP multi speed gearbox with rear PTO (1000 RPM).
2540mm working width.
60 x L blades total.
Side gear drive.
CE safety guards.
Floating front hitches.
Rear door with spring and pin adjustment.
1 3/8in 21 spline PTO with slip clutch.
Features:
170 HP multi speed gearbox with rear PTO (1000 RPM).
2540mm working width.
60 x L blades total.
Side gear drive.
CE safety guards.
Floating front hitches.
Rear door with spring and pin adjustment.
1 3/8in 21 spline PTO with slip clutch.
Specifications:
Connection Type: Linkage
Min Tractor PTO HP: 70-170 HP
Working Width (mm): 2540
Working Depth (mm): 100-200
Product Weight (kg): 990
Total Width (mm): 2740
Weight with Optional Cage Roller:
Product Weight (kg): 1100
Weight with Optional Packer Roller:
Product Weight (kg): 1280
Options:
Front Depth Wheels
Pair of Side Discs
Wheel Track Eradicator
Double Flange
Note: An additional surcharge applies for machinery assembly.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

BREVIGLIERI 2.54M B170 ROTARY HOE (MIN 70-170HP)

9 leg Subsoiler with tines & discs up to 450mm working depth. Made in new Zealand.
304 Auto Reset Panerazers are the ultimate sub soiling machine. Especially when the soils to be aerated are heavy & full of obstructions.
Being auto reset makes your sub soiling job seamless as the legs simply lift over any obstruction & immediately reset automatically so you can continue aerating your soils without stopping. Leaf spring reset has a great advantage over rams, not only do they require less maintenance, but the legs are at the highest point of resistance while in the ground & resistance reduces as they lift.
This ensures the legs do not tip falsely but ensures they do clear obstructions when struck.
Rata Panerazer legs are in a 'V' formation. This reduces drag between the legs making it easier to pull and uses less fuel. V formation also means the legs leave the ground independently at the headlands which eliminates 'heaving'.
They feature a heavy duty build RHS main frame construction with reinforcing to cope with hard conditions. The wear protected legs are also securely bolted into the reset mounts.
Working depth is easily controlled via the rear roller setting and tractor 3 point linkage. The rear roller is secured to the main aerator frame with heavy machine pins.
The rear roller is securely mounted into a sealed bearing to ensure smooth operation with minimal wear. The roller is also kept clean by a scraper mounted just behind it.
An innovative modular leg, foot & point assembly provides maximum flexibility of parts. Cast point provides extra wear protection in the form of bevelled hard wearing plate.
Winged feet are an option on the Rata Panerazer range (see photos attached). These provide extra ground lift when sub soiling to create greater subsoil disturbance.
The auto reset system is powered by heavy duty leaf springs mounted on each leg. Leaf springs reset immediately after tripping & clearing the obstacle unlike other reset systems such as hydraulic. This tension is easily adjusted via the 'tension bolt' mounted on the leg. This enables the operator to adjust the tension to the ideal level required for the ground they're operating in. The tension adjustment spanner is included with the implement.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

RATA 9 LEG (AUTO RESET) SUBSOIL CULTIVATOR (150HP RECOMMENDED)

The Maxi Squalo Rotary Tiller by Valentini is designed for medium and large farms and is compatible with medium-high power tractors. Ideal as a rotary tiller for heavy-duty work, it performs excellently on untilled soil with crop residues or even on stable grasslands. The lateral transmission with 4 gears By Valentini 4G ensures top field results, allowing faster operations and lower fuel consumption. Reinforced frame and mechanics make it suitable for demanding tasks. Its foldable design ensures easy road transport in full compliance with current regulations. Power, strength, and performance: the perfect rotary tiller for heavy-duty work.
Features
- 3 point universal hitch (Category 3).
- Front oscillating bar hitch.
- Ready for attachment of fixed front bars for quick coupler category 3.
- Central anchor.
- Single speed unit, 1000 rpm.
- Reinforced rotor diameter 540 with High Strength Steel flange.
- 6 helical hoes per flange.
- Idle side support in oil bath.
- External scraper blades.
- Central fixed cardan (tractor side fork 1 3/4inch Z20).
- Side cardan with disk clutch.
- In model 3700, hydraulic opening and closing of the bodies with 2 jacks and controlled block valves.
- In models with widths greater than 3700, hydraulic opening and closing of the bodies with 4 jacks and controlled block valves.
- Automatic hydraulic device with safety hooks for transport for model 3700.
- Lateral transmission with gears in oil bath by Valentini-4G.
- Bearing supports with special seals, Labyrinth Bearing Protection by Valentini.
- Adjustable rear sheets with Fast Regulation shock absorbers.
- 510mm Cage Roller
In roller versions
In models with widths greater than 3700. rear rollers regulated by 4 hydraulic jacks with block valves.
Larger roller parallel to the transmission.
Automatic rear roller alignment device by Valentini.
Casing protection cap.
Safety
Rear light bar for road travel.
Manual safety bar for transport.
CE Safety protections.
Anti-intrusion protections for transport.
Road footprint 2470.
Specifications
Power 180 / 340 hp
Power 132 / 250 kW
Working Width ,4250mm
Total Footprint 4,500mm
Blades 96
Working Depth 28cm
Hoe Rotor 259rpm
Blades/Points Rotor 324rpm
Weight Cage Roller 3,000kg
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available
Contact Farm Supplies today for sale or more information
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

VALENTINI 4.25M MAXI SQUALO ROTARY HOE (180 - 340 HP) INC CAGE ROLLER

Series 38 Manual winch folding wing frame with 6 section folding S08 Stump Jump Harrow. 5.18m coverage. Transport width: 4.52m.
Please note that 3 point linkage pins are not supplied.
Murray Series 38 Folding Harrow Frames provide a solution to the transportation of multiple Harrow sections.
Designed to fit Category I or II three-point linkage systems, Murray Series 38 Harrow Frames allow transport between paddocks and through smaller sized gates.
Each unit features a top class frame designed and backed by Murrays years of experience.
Simplicity and strength are combined in a compact frame utilising a rigid linkage-mounted centre section and manually folded wings.
Murray Series 38 Harrow Frames suit Category C Harrows including Series 04 Diamond Harrow sections and Series 08 Stump Jump Harrow sections.
Series 38 Folding Harrow Frames are supplied complete with centre section, wing attachments and all rings and links to suit your harrow type and size.
Specifications:
- Main Frame 50 x 50 x 5 RHS
- ALKO 350kg Brake Winch. 4 section frame comes with 1 - Brake Winch as standard. 5 and 6 section frames come with 2 Brake Winches as standard.
- Lock out hinge mechanism
- Anchor points to suit desired Harrow
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 5.18M MANUAL FOLDING FRAME STUMP JUMP HARROW

The rigid chisel plough is used in a similar fashion to the stump jump as a primary cultivator.
The rigid tine is harder to pull as it has not got the jack hammering effect of the stump jump tine. It should also be used in country which is known to be clean, as the tine is clamped onto the frame and will only shear the clamp bolts under load.
The tines are extremely strong for this reason, using the same tines as the stump jump plough. The machine is ideal for lighter sandy soils where penetration and draft are not a problem.
Features:
5 Tines at 12 adjustable spacings.
Heavy duty 100x100x6mm frame.
Overall width of the machine is 9 wider than the cut width ie 5 tine is 5 9, 7 tine is 79 and so on.
Cat 1 & 2 Linkage.
65mm Reversible Points as standard.
Silicone chrome spring steel shanks.
Available in 5, 7, 9 and 11 tine sizes with tines at 12 adjustable spacings.
Horsepower requirements vary widely but 10 HP per tine is a rough guide.
Excellent underframe trash clearance of 520mm.
Adjustable spring is designed to give a longer, more progressive action, actually chiselling as the machine moves through the ground.
The wheel kit consists of a pair of 14 Holden wheels, height adjustable, fitted on the outside of the machine (increasing the overall width approx 450mm (18).
Options:
0200 Depth Wheels (Pair Holden)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS RIGID TINE CHISEL PLOUGHS 5'9" (1.75M) - 0182

120L APV Seeder for Power Harrows
To suit Breviglieri MF80 and MF100 power harrows. See the MF80 and MF100 Power Harrows for the units these attach to.
Features:
- Working width: 1 - 6 metres with double electric fan, 8 outlets.
- Hopper capacity: 120L
- 12 Volt in cab controller with hectare meter.
- Fine and coarse seed sowing shafts.
- 8 Dispersion plates.
Dimensions:
Height = 90 cm
Width = 60 cm
Depth = 80 cm
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available
Contact Farm Supplies today for sale or more information
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 120L ELECTRIC APV AIR SEEDER

Consuming 100,000 tons of high quality Swedish steel annually, UNIA is the largest manufacturer of agricultural machines in Poland with nearly 25,000 machines sold per year, of which over 10,000 are exported to 60 countries around the world, including right here in Australia.
Designed for pre-sowing and stubble tillage
Based on 2 rows of discs that provide easy cutting of the soil intense mixing any plant residues with hay. Can operate as seedbed combination unit due to the possibility of extending it of a carriage with draw-bar for the semi-mounted version.
High area performance at low fuel consumption and low wearing rate. Possibility of extension to the semi-mounted or Drive versions (on the tyre and transport roller, ø670 mm)
Features:
Weight With Roller: 2,470 KG
Power Demand: 120-150 HP
No. Of Discs: 32
Suspension axle: 70-825/36 mm
2 rows of 560/4 mm CLASSIC toothed discs, protected by 35x190mm or 42×160 mm shock absorbers (version 4H)
Maintenance-free hub with triple lip seals
600 mm pipe roller
Mechanical / Hydraulic adjustment of working depth
Row of spring levelling fingers
Rigid frame (versions 34)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

UNIA ARES XL 4M CUT SPEED DISC CULTIVATOR - UNIA - ARESXL4, 120-150HP

Find Tillage AND Seeding For Sale. Browse 1017 Tillage AND Seeding listings from Farm Supplies Machinery & Equipment.

New & Used Tillage AND Seeding For Sale in Australia

Farm Supplies Machinery & Equipment

Sale Price

MURRAY SERIES 03 LEVELLING HARROW 4.87M, 4 RANK DEEP SECTIONS & STD DRAWBAR-HEAVY DUTY-COMPLETE SET

JARRETT IMPLEMENTS 1.8M LINKAGE DISC CULTIVATOR CS SERIES 22INCH DISCS

JOHN BERENDS TH100 HD TRAILING TANDEM DISCS - 44 PLATE X 24 INCH DISCS - 0976

MURRAY 1.83M KINKED SPRING TINE 3 RANK HARROW MEDIUM DUTY COMPLETE UNIT - SERIES 06

MURRAY 2.28M KINKED SPRING TINE 4 RANK HARROW MEDIUM DUTY COMPLETE UNIT - SERIES 06

BREVIGLIERI 2.54M B170 ROTARY HOE (MIN 70-170HP)

RATA 9 LEG (AUTO RESET) SUBSOIL CULTIVATOR (150HP RECOMMENDED)

VALENTINI 4.25M MAXI SQUALO ROTARY HOE (180 - 340 HP) INC CAGE ROLLER

MURRAY 5.18M MANUAL FOLDING FRAME STUMP JUMP HARROW

JOHN BERENDS RIGID TINE CHISEL PLOUGHS 5'9" (1.75M) - 0182

SILVAN 120L ELECTRIC APV AIR SEEDER

UNIA ARES XL 4M CUT SPEED DISC CULTIVATOR - UNIA - ARESXL4, 120-150HP

Farm Supplies Machinery & Equipment

Dealer Address
