Merbein ploughs consist of left hand and right hand, two or three disc units attached to a range of toolbar sizes, to create just the right bed or channel for your needs.
This item includes:
Two 0522 units with x3 Discs each side plus one 0530 7ft (2.1m) Toolbar.
Please specify left or right hand when ordering. Left hand throws dirt to the left hand side and right hand throws dirt to the right hand side.
Also Available:
0536 Merbein rear coulter (one side only)
Please specify left or right hand when ordering. Left hand throws dirt to the left hand side and right hand throws dirt to the right hand side.
0528 6ft (1.8m) merbein toolbar
0530 7ft (2.1m) merbein toolbar
0532 8ft (2.4m) merbein toolbar
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS MERBEIN PLOUGHS 3 DISCS PER SIDE WITH 7FT TOOLBAR - 0522 X2 INCL 0530

Murray 6 sections with 2 piece bars & master bar, 5.79m Series 04 Diamond Harrow System. Complete set with standard drawbars.
4107 - 6 sections w/ 2 pce bars & master bar - 5.79m
Suitable for open country and lighter loamy soils, Murray Diamond Harrows are an effective implement used for weed control and final seedbed preparation.
Specialising in shattering soil crusts allowing improved aeration and moisture penetration, it will give your crops every chance of reliable germination and subsequent vigour.
The Diamond frame design is constructed using flat bar material providing the Harrow with strength and rigidity. It features replaceable bolt-in 16mm square section High Carbon Steel tapered tines with a working depth between 50 to 80mm (2 to 3).
Murray Diamond Harrows are supplied in sets complete with drawbars, ranging from 2 sections 2.03m (68) to 10 sections 10.16m (334). Lift type sets using our 3 Point Linkage Hoist Frame (Series 21) are available, making transportation of your Harrows easy and convenient. The complete set is comprised of a Front Lift Drawbar, Harrow Sections, Rear Lift Drawbar and 3 Point Linkage Hoist Frame (Series 21).
Features:
- 2 Point Pull (2PP). Replaceable bolt-in 16mm square section High Carbon Steel tapered tines.
- Manufactured from flat bar material
Specifications:
-30 kg (66lb).
- Coverage 0.97M (38").
- Tine Spacing 51mm (2").
- Tine Length 152mm (6") approx
- Centre to centre of Front Hooks 508mm (20").
- 5 Rank / 20 Tines.
- Tapered Tines with working depth between 50-80mm (2" - 3")
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 5.79M DIAMOND HARROW SYSTEM 6 SECTIONS W/2 PCE BARS & MASTER BAR-COMPLETE SET WITH STD DRAWBAR

The rigid chisel plough is used in a similar fashion to the stump jump as a primary cultivator.
The rigid tine is harder to pull as it has not got the jack hammering effect of the stump jump tine. It should also be used in country which is known to be clean, as the tine is clamped onto the frame and will only shear the clamp bolts under load.
The tines are extremely strong for this reason, using the same tines as the stump jump plough. The machine is ideal for lighter sandy soils where penetration and draft are not a problem.
Features:
11 Tines at 12 adjustable spacings.
Heavy duty 100x100x6mm frame.
Overall width of the machine is 9 wider than the cut width ie 5 tine is 5 9, 7 tine is 79 and so on.
Cat 1 & 2 Linkage.
65mm Reversible Points as standard.
Silicone chrome spring steel shanks.
Available in 5, 7, 9 and 11 tine sizes with tines at 12 adjustable spacings.
Horsepower requirements vary widely but 10 HP per tine is a rough guide.
Excellent underframe trash clearance of 520mm.
Adjustable spring is designed to give a longer, more progressive action, actually chiselling as the machine moves through the ground.
The wheel kit consists of a pair of 14 Holden wheels, height adjustable, fitted on the outside of the machine (increasing the overall width approx 450mm (18).
Options:
0200 Depth Wheels (Pair Holden)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS RIGID TINE CHISEL PLOUGHS 11'9" (3.5M) - 0185

Light duty power harrow for tractors up to 80 hp. Suitable for vineyard, orchard and light agricultural applications.
Specifications:
Actual Width: 180cm
Working Width: 175cm
Required HP: 45-80hp
Weight: Cage roller - 460kg, Packer roller - 535kg
No of Blades: 14
Features:
Rated up to 80hp
319 rotor speed
540 rpm
Category one linkage
Manual depth control
260 x 90 x 10mm tines
260mm working depth
Fixed side plates
Shearbolt safety on Driveshaft
Greasable top bearings
Optional levelling bar
Accessories:
Levelling bar
Options:
Roller Options
Cage roller (385mm diameter)
Packer roller (420mm diameter)
Models:
MINIGO100 100cm Working Width 30-80HP 8 tines
MINIGO125 125cm Working Width 35-80HP 10 tines
MINIGO150 150cm Working Width 40-80HP 12 tines
MINIGO175 175cm Working Width 45-80HP 14 tines
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

CELLI 1.75M (45-80 HP) MINI GO POWER HARROW

Series 30 2.13m Mounted Spring Tine Harrow System - Light Duty 2 Rank- Straight Tines.
The Series 30 Light Duty is the perfect implement for sandy to light soils. Specifically designed to increase trash flow using wide spacing between each straight tine, the 2 rank is a lighter duty harrow available in five sizes ranging from 1.78m (510) to 3.20m (106). Each section is supplied complete with two mount arms.
Harrow depth control is adjustable by means of specially designed cam-action fitting within the mount arm.
Specifications:
- Coverage: 2.13m
- Weight: 62kg
- Tine spacing 85mm (3 3/8) 2 Rank.
- Tine Diameter 10mm Straight Tine.
- Tine length 385mm (15) approx.
- Rank Spacing 324mm (12 3/4").
- 2 Mount Arms per unit.
- Mount clamp suits 81mm to 100mm (3 1/4 to 4) square frame positioned on the flat or on the edge (Spacers
required for 75mm [3] square frame).
Features:
- May be attached to the rear bar of light duty cultivators, seeding drills, etc.
- Unit features two Series 30 Mount Arms.
- A cam incorporated in the mount clamp adjusts the height of the Harrow Tine Section.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

MURRAY 2.13M MOUNTED SPRING TINE HARROW SYSTEM - LIGHT DUTY - 2 RANK

Series 08 - 4.31m Stump Jump Harrow 3 Point Linkage Hoist Lift Type (4 point pull) featuring Series 21 Hoist Frame - Complete Set.
Please note 2nd picture shows how harrows are attached to frame, but the harrows in that picture are not stump jump harrows. Picture is for example only.
Complete Set Comprises - Front Lift Drawbar, Harrow sections, Rear Lift Drawbar including Lift Clips and Series 21 3-Point Linkage Hoist Frame.
8031 - 5 section 4.31m (14ft 2in) - 349kg.
If your ground is uneven, roughly cleared or contains light stony areas then the flexible Murray series 08 Stump Jump Harrow is the secondary tillage implement to consider.
Ruggedly constructed using High Carbon Steel, the floating stump jump action is a time tested agricultural implement.
Suitable for breaking down clods, final seed preparation of ground and levelling pugged up or packed down heavy pasture country, Stump Jumps are also ideal for use in the preparation stage of vegetable growing and weed control.
Each Stump Jump section is attached to the drawbar by four hitching points one ahead of each row of tines, to ensure true tracking and correct stump-jump action.
Sets complete with drawbars range from coverage of 1.72mm (5ft 8in) to 8.63m (28ft 4in).
Available as a Lift Type set utilising our Series 21 Three Point Linkage Hoist Frame for ease of transportation. Set includes Front Lift Drawbar, Harrow sections, Rear Lift Drawbar including Lift Clips and Hoist Frame.
100% Australian made and owned.
Specifications:
- Coverage 4.31m (14ft 2in).
- Weight 349kg
- Tine spacing 44mm (1 3/4in).
- Tine length 197mm (7 3/4in) approx.
- Centre to centre of Front Hooks 222mm (8 3/4in).
- 5 Ranks / 20 Tines.
Features:
- 4 Point Pull (4PP). Cut Tine ends, pipe spacers throughout
section.
- Manufactured from 32 x 10mm carbon steel.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 4.31M STUMP JUMP HARROW COMPLETE SET - 3PL HOIST LIFT TYPE (4 POINT PULL)

7 leg Subsoiler with tines & discs up to 450mm working depth. Made in new Zealand.
304 Auto Reset Panerazers are the ultimate sub soiling machine. Especially when the soils to be aerated are heavy & full of obstructions.
Being auto reset makes your sub soiling job seamless as the legs simply lift over any obstruction & immediately reset automatically so you can continue aerating your soils without stopping. Leaf spring reset has a great advantage over rams, not only do they require less maintenance, but the legs are at the highest point of resistance while in the ground & resistance reduces as they lift.
This ensures the legs do not tip falsely but ensures they do clear obstructions when struck.
Rata Panerazer legs are in a 'V' formation. This reduces drag between the legs making it easier to pull and uses less fuel. V formation also means the legs leave the ground independently at the headlands which eliminates 'heaving'.
They feature a heavy duty build RHS main frame construction with reinforcing to cope with hard conditions. The wear protected legs are also securely bolted into the reset mounts.
Working depth is easily controlled via the rear roller setting and tractor 3 point linkage. The rear roller is secured to the main aerator frame with heavy machine pins.
The rear roller is securely mounted into a sealed bearing to ensure smooth operation with minimal wear. The roller is also kept clean by a scraper mounted just behind it.
An innovative modular leg, foot & point assembly provides maximum flexibility of parts. Cast point provides extra wear protection in the form of bevelled hard wearing plate.
Winged feet are an option on the Rata Panerazer range (see photos attached). These provide extra ground lift when sub soiling to create greater subsoil disturbance.
The auto reset system is powered by heavy duty leaf springs mounted on each leg. Leaf springs reset immediately after tripping & clearing the obstacle unlike other reset systems such as hydraulic. This tension is easily adjusted via the 'tension bolt' mounted on the leg. This enables the operator to adjust the tension to the ideal level required for the ground they're operating in. The tension adjustment spanner is included with the implement.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

RATA 7 LEG (AUTO RESET) SUBSOIL CULTIVATOR (150HP RECOMMENDED)

The RM75 offset disc cultivating plough is a tough, rugged machine designed for Australian conditions. The RM75 is similar to the RM80 with the main difference being in the lesser number of bearings and longer axles.
Ideal for primary and secondary tillage for 60-130 HP tractors.
Features:
Fitted with 24 inch x 6mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacture failure.
Fitted with two 750×16 Land Cruiser wheels on a 5 tonne axle. Hydraulic wheel lift is standard. All models fitted with 8 inch Australian made Eaton rams.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400psi.
Twin pressure screws can be adjusted individually to transfer weight to the rear of the plough, resulting in even disc penetration.
40mm square high tensile gang bolts.
Flange disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Fully adjustable drawbar.
Solid cast spools throughout the gangs provide ballast weight in the gangs, where it counts, rather then the main frame. Each is individually machined to suit the disc for extra strength.
9 inch disc spacing.
Fitted with hydraulic lift as standard.
Prong type scrapers are standard formed scrapers on request.
Parking jack is optional.
Optional furrow fillers available.
Specifications:
Approx Weight: 2120kg
No of bearings: 8
No of axles: 4
Cutting width: 3.2m (10ft 6inch)
Options:
0951 Optional jack
0953 Optional Furrow filler (not sold separately)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS RM75 HD TRAILING OFFSET 28 PLATE 6MM DISCS - 0843, SUIT 60-130HP

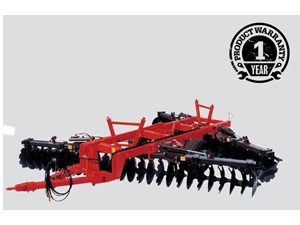

The RM80 offset disc cultivating plough is designed for extremely tough conditions. It is similar to the RM75 with the main difference being in the greater number of bearings and shorter axles in the disc gang assemblies.
Features:
Ideal for primary and secondary tillage for 75-165 HP tractors.
Fitted with 24inch x 6mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacturing failure.
Fitted with two 11×16 flotation wheels on a 5 tonne axle. Hydraulic wheel lift is standard. All models fitted with 8inch Australian made Eaton Rams.
40mm square high tensile gang bolts.
Single pressure screw can be adjusted to transfer weight to the rear of the cultivator, resulting in even disc penetration. Option of fixed or floating position.
Flanged disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Fully adjustable drawbar.
Solid cast spools throughout the gangs provide ballast weight in the gangs, where it counts, rather than the main frame. Each is individually machined to suit the disc for extra strength.
9 inch disc spacing.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400 psi.
Prong type scrapers are standard formed scrapers available on request.
Parking jack is standard.
Optional furrow fillers available.
Specifications:
Approx Weight: 1700kg
No of bearings: 8
No of axles: 4
Cutting width: 2.3m (7ft 6inch)
Options:
0953 Optional Furrow filler (not sold separately)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS RM80 HD TRAILING OFFSET 20 PLATE 24 INCH 6MM SCALLOP DISCS - 0860, SUIT 75-165HP

Made of 32mm semi high tensile steel. The tines are adjustable and fitted with shearbolt protection. Parabolic curved tines allow for easy entry into the ground.
The points or teeth are hardened, and similar to those fitted to the buckets on industrial loaders.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS 0032 5 TINE RIPPER (2.1M DOUBLE FRAME)

2.56m Murray Series 03 Levelling Harrow 4 Rank Deep Sections & Standard Drawbar, Heavy Duty. Complete Set.
3602 - 2.56m (8ft 5in) 1/12 Tine, 2/16 Tine - 56kg.
Murray Levelling Harrows are an excellent choice to complement sowing or cultivation implements. Designed to level soil and seedbeds, the flexible frame design provides durability in all soil types. 3 and 4 rank versions are suitable for use to cover seed in light to medium soils in conjunction with combines and seed drills. The 5 rank model is used in heavier soils to counter weed growth and break down large clods. It is a popular implement that complements cultivators, scarifiers or chisel plows.
If you require additional weight to work your land, a Heavy version of our Series 03 Levelling Harrows is available. Made from heavier High Carbon Steel, the Tine Spacing remains the same as the standard version.
The Series 03 Levelling Harrow is available in either 3 or 4 row widths allowing extensions in increments of 235mm (9 ¼) to suit primary machines of almost any width. This allows a combination of harrow sections to be configured to suit your application.
A full range of standard and heavy duty drawbars are available to correctly match your soil conditions and available working width of your equipment. Harrow sets complete with drawbars range from 2.31m (77) to 5.58m (184) in width.
Specifications:
- Tine Spacing 76mm (3in).
- Tine Length 190mm (7 1/2in) approx.
- Centre to centre of Front Hooks 235mm (9 1/4in).
Features:
- High Carbon Cut Tines.
- Light models manufactured from 25 x 6mm carbon steel and Heavy models from 32 x 6mm.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY SERIES 03 LEVELLING HARROW 2.56M, 4 RANK DEEP SECTIONS & STD DRAWBARS-HEAVY DUTY-COMPLETE SET

Series 38 Manual winch folding wing frame with 4 section folding S04 Diamond Harrow. 3.86m coverage. Transport width: 2.95m.
Please note that 3 point linkage pins are not supplied.
Murray Series 38 Folding Harrow Frames provide a solution to the transportation of multiple Harrow sections.
Designed to fit Category I or II three-point linkage systems, Murray Series 38 Harrow Frames allow transport between paddocks and through smaller sized gates.
Each unit features a top class frame designed and backed by Murrays years of experience.
Simplicity and strength are combined in a compact frame utilising a rigid linkage-mounted centre section and manually folded wings.
Murray Series 38 Harrow Frames suit Category C Harrows including Series 04 Diamond Harrow sections and Series 08 Stump Jump Harrow sections.
Series 38 Folding Harrow Frames are supplied complete with centre section, wing attachments and all rings and links to suit your harrow type and size.
Specifications:
- Main Frame 50 x 50 x 5 RHS
- ALKO 350kg Brake Winch. 4 section frame comes with 1 - Brake Winch as standard. 5 and 6 section frames come with 2 Brake Winches as standard.
- Lock out hinge mechanism
- Anchor points to suit desired Harrow
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 3.86M MANUAL FOLDING FRAME DIAMOND HARROW

Find Tillage AND Seeding For Sale. Browse 1017 Tillage AND Seeding listings from Farm Supplies Machinery & Equipment.

New & Used Tillage AND Seeding For Sale in Australia

Farm Supplies Machinery & Equipment

Sale Price

JOHN BERENDS MERBEIN PLOUGHS 3 DISCS PER SIDE WITH 7FT TOOLBAR - 0522 X2 INCL 0530

MURRAY 5.79M DIAMOND HARROW SYSTEM 6 SECTIONS W/2 PCE BARS & MASTER BAR-COMPLETE SET WITH STD DRAWBAR

JOHN BERENDS RIGID TINE CHISEL PLOUGHS 11'9" (3.5M) - 0185

CELLI 1.75M (45-80 HP) MINI GO POWER HARROW

MURRAY 2.13M MOUNTED SPRING TINE HARROW SYSTEM - LIGHT DUTY - 2 RANK

MURRAY 4.31M STUMP JUMP HARROW COMPLETE SET - 3PL HOIST LIFT TYPE (4 POINT PULL)

RATA 7 LEG (AUTO RESET) SUBSOIL CULTIVATOR (150HP RECOMMENDED)

JOHN BERENDS RM75 HD TRAILING OFFSET 28 PLATE 6MM DISCS - 0843, SUIT 60-130HP

JOHN BERENDS RM80 HD TRAILING OFFSET 20 PLATE 24 INCH 6MM SCALLOP DISCS - 0860, SUIT 75-165HP

JOHN BERENDS 0032 5 TINE RIPPER (2.1M DOUBLE FRAME)

MURRAY SERIES 03 LEVELLING HARROW 2.56M, 4 RANK DEEP SECTIONS & STD DRAWBARS-HEAVY DUTY-COMPLETE SET

MURRAY 3.86M MANUAL FOLDING FRAME DIAMOND HARROW

Farm Supplies Machinery & Equipment

Dealer Address
