5 Bar Gate - 1500mm. (5ft)
All gates are manufactured from 25NB pipe and are a standard 1170mm high.
Features:
- Perfect as a strong livestock gate
- Available in widths from a 1000mm (3'3") personnel gate to a 4800mm (16') farm gate
- Increased vertical bracing in gates 2400mm (8') and over in length
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available
Contact Farm Supplies today for sale or more information
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

LEMPRET WIRE & SEALANTS 5 BAR GATE - 1500MM (5FT)

249 L/min pump with Male - Male shaft.
All IDS series high pressure diaphragm pumps are built for 540 RPM operation, are self-priming & feature a corrosion resistant cast anodised aluminium body with brass heads and manifold. Tough and reliable they will run dry without risk of damage.
All pumps are supplied with appropriate hose connections, mounting base plates and 1 3/8" six splined shaft.
Specifications:
Pump Size (L/min): 249
Height / Width / Length (mm): 500 / 463 / 357
Product Weight (kg): 76
Max Pressure : 5,000 (kPA)
Shaft: Male - Male
Diaphragms: 6
HP Required at Max pressure: 32.1
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN IDS2600 - HIGH PRESSURE DIAPHRAGM PUMP (249 LPM, MALE - MALE)

Trailed over row P55DSE 2 row 3,500 litre turbowrap sprayer with a hydraulic drive 350 L/min stainless steel pump, 550mm turbine fan, sprayheads, automatic spray rate controller, wide angle shaft and tandem suspension axle.
Ideal for vineyards.
Specifications:
Market: Viticulture.
Tank Size (L): 3,500
Connection Type: Trailed
min PTO hp: 70
Pump Size (L/min): 350
Height / Width / Length (mm): 3630 / 1935 (less head), 2605 (folded) / 5640
Product Weight (kg): 1,100 (dry)
Application: Vineyards
Features:
Head: Two row spraying head: 28 venturi air shear adjustable nozzles with individual metering and on/off taps. Three row spraying head: 42 venturi air shear adjustable nozzles with individual metering and on/off taps. Left & right arms are independent hydraulic folding with adjustable width & centre frame. Boom frame is galvanised.
Pump: Stainless steel, hydraulic drive centrifugal pump, 350 L/min. Stainless steel shaft and Viton/ceramic seal.
Fan Size: P55DSE: 550mm dia. turbine fan, 3700 rpm. Power consumed 50 kw / 67HP.
Nozzles: Air shear.
Gearbox: Multiplication type through multi-grip, multi-vee belt and pulley, over-run free wheeling hub and oil bath fan housing.
Controls: Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.
Frame: Galvanised steel chassis, adjustable drawbar with jockey wheel.
Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and 40L fresh water hand wash tank.
Chem Induction: Suction probe with detachable hose.
Agitation: Venturi agitator.
Filtration: Lid strainer and large capacity suction filter.
Wheel Equipment: Tandem simplicity suspension with 10 x 15" wheels & tyres. (2000L) or 11.5 x 15.3" wheels & tyres (3500L)
PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.
HP Required: Minimum 70 PTO HP (2 row), Minimum 90 PTO HP (3 row).
Options:
- Quick turning hitch (D99-170)
- Hydraulic row width/height adjustment
- Bravo 180S spray rate controller with hydraulic controls (in lieu) (J99-180)
- Road kit (D99-151)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 3,500L (2 ROW) P55DSE TRAILED TURBOWRAP - MIN 70PTO HP

A simple solution to the rattles.
Sick and tired of a loose rattling gate?
Our galvanised saddle attachments work with your top saddle to ensure a nice tight clean swinging gate.
Price quoted is for one attachment only.
Discounts apply for bulk purchases of 10+
Specifications:
- 32NB gate
- 1 x saddle attachment to suit TS32HD
- Galvanised
Features:
- Strong
- Provides a clean swinging gate
- Rust resistant
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

ROTECH RURAL SADDLE ATTACHMENT 32NB (SUIT TS32HD) - SA32

Cuts fodder into ideal digestible lengths. Great for a small hobby farms, pony clubs and vets
Hansa Chippers shared a close relationship with Streamline Feed Systems. Manfred Vogel, Hansas founder, and John Turner, Streamlines founder, shared the passion for innovation and quality products. They shared ideas, collaborated and even joined sites back in the early stages of their businesses for Fieldays.
When John Turner retired, the Streamline chaff cutters one of the brands bestselling products became discontinued. Sharing Hansas values, Ben Turner, Johns grandson has now joined the Hansa team, and together we are bringing back an old favorite re-engineered for the modern age.
Features:
Inlet folds for storage
Suits catch bag with opening circumference of 970mm or more
Wheels for transport and handles for maneuvering
Solid construction with steel body
Powder-coated for a durable finish
Safe operation guarded belts, guarded inlet with PET safety shield, E-stop & lock out switches
Easy-feeding system
Technical Specifications:
Engine: 2h.p. electric motor
Max Power: 2h.p.
Dimensions: 1650x1505x850 [in folded state: 1030x1205x850]
Weight: 148kg
Fuel Type: Electricity
Wheels: 270mm pneumatic
Reel: 12 blade spiral reel
Belts: 2x Z53 belts
Start: Electric
Outlet Dimensions: 330×110 (383×155 outer edge circumference 970mm)
Manufactured by :
Hansa Products Ltd 36 Tawn Place,
PO Box 10323, Hamilton 3200 New Zealand
Provide the best feed for your animals using the Streamline chaff cutter by Hansa. It has the most refined cutting mechanism of any machine on the market, creating the most consistent output chaff.
The streamline chaff cutter can cut various types of hay, lucerne and grasses, saving you money and time by producing your own chaff, knowing what the output feed contains.
The machines safety features including safety switches on guarding and emergency stop button provides peace of mind for any operator. Its compact size, with folding inlet chute makes for easy storage.
While servicing and maintenance requirements are minimal, its design lends itself to easy cutting reel removal for sharpening and setting to anvil.
Hansa Products has a policy of continuous improvement, therefore specifications may change without notice. The F3 comes with a 2 year warranty, conditions apply.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

HANSA CHAFF CUTTER - HANSA - F3

Ideally suited for a variety of farming purposes including digging post holes and tree planting on lifestyle, medium acreage, broadacre, viticulture and horticultural farms.
Note: Augers are NOT supplied with the Post Hole Digger
Specifications:
Connection Type: Linkage
Min PTO HP: 75
PTO: 40 - 75HP: Series 4.
Product Weight (kg): 126
Gearbox Ratio: 23.18:1 clockwise rotation.
Clutch: 2 x 150mm friction plates (40/50HP), 2 x 200mm friction plates (75HP).
Main Frame: 75 x 75 x 4mm RHS (158PHD30), 100 x 100 x 5mm RHS.
Moutning: Cat. I TPL with Cat. II bushes supplied.
Effective Digging Depth: 1m.
Options:
DCA6 - 6"auger
DCA8 - 8" auger
DCA10 - 10" auger
DCA12 - 12" auger
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 75HP POST HOLE DIGGER (AUGERS NOT INCL)

Silvan 131 Heavy Duty Slasher - 2.1m (7ft) - Centre Mount.
Suit Min 60-75HP.
Suited to large acreage applications including clearance, firebreaks, private roadsides or where major cutting & clearing is required.
Features:
- Construction: Welded 6mm top deck plate, welded steel side plates with adjustable skids.
- Gearbox: 75HP, Series 6, 1:1.93 ratio. Optional 100HP.
- PTO Shaft Rating: 540 RPM
- Head Stock: Collapsible floating hitch.
- Mounting: Cat. II TPL attachment. Centre mount.
- Clutch: 75HP: 8in 2 plate friction clutch, (optional) 100HP: 8in 4 plate friction clutch.
- Finish: Long lasting galvanised top deck.
- Skids: Adjustable from 50 -150mm cutting height.
- Blades: 3 leaf rotor bar with hardened bushes and 2 Boron step down blades.
- Instructions: Operators manual and holder supplied.
- Stone Guards: Front and rear rubber stone guards.
Specifications:
- Market: Turf, Ag Lifestyle
- Connection Type: Linkage
- Min PTO HP: 60-75 HP
- Working Width (mm): 2,100
- Product Weight (kg): 572
Options:
- Spring Steel Rotor
- 100 HP Gearbox Upgrade
- Height Control Wheel (Two recommended for 7ft models)
- Heavy Duty Height Control Wheel (Two recommended for 7ft models)
- Front and Rear Chain Guards (In lieu of rubber guards)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 2.1M 131 HEAVY DUTY SLASHER (MIN 60-75HP)

Linkage air assist Suntuff 200 litre sprayer with a 67 L/min diaphragm pump and 600mm fan. Ideal for smaller vineyards or orchards and smaller horsepower tractors.
Specifications:
Market: Viticulture. Horticulture
Tank Size (L): 200
Connection Type: Linkage
Min PTO HP: 20
Pump Size (L/min): 67
Height / Width / Length (mm): 1060 / 1000 / 1070
Product Weight (kg): 90
Application: Vineyards and Orchards
Features:
Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body. APS71: 67L/min. capacity 5000kPa pressure. APS96: 88L/min. capacity 5000kPa pressure.
Fan Size: Axial flow type, fan with curved nylon reinforced blades, galvanised cowling and protective mesh cover. 600mm with 8 blades on 200L unit. 700mm with 8 blades on 400L unit. 800mm with 10 blades on 500L unit
Nozzles: Flip-over type for dilute/concentrate spraying, ceramic jets, stainless steel swirl-plates. 200L unit: 10 single nozzles (5 per side) twist on/off. 400L unit: 12 flip over nozzles (6 per side) twist on/off. 500L unit: 14 flip over nozzles (7 per side) twist on/off.
Gearbox: Single-speed with neutral position, oil-bath type.
Controls: 3 outlet with pressure regulator. 400/500L models standard with extra length hoses - for tractor control mount.
Tank: Polytuff, impact resistant, polyethylene construction with litre calibrations, non-spill screw-down lid.
Frame: Galvanised steel, suit cat I & II linkage (200L cat I linkage only).
Agitation: 200L: bypass, 400L / 500L: dual bypass.
Pressure Gauge: Glycerine filled gauge, located on the control valve.
Filtration: Lid strainer, suction line strainer and stainless steel nozzle filters.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
HP Required: 200/400L: Minimum 20 PTO HP, 500L: Minimum 40 PTO HP.
Fitment Options:
- Two sided deflector (600mm fan size)
- Two sided deflector (700mm fan size)
- Two sided conveyor (700mm / 800mm fan size)
- Two sided deflector (800mm fan size)
- Bottom air deflectors (600mm / 700mm / 800mm fan size)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 200L SUNTUFF LINKAGE SPRAYER - MIN 20PTO HP

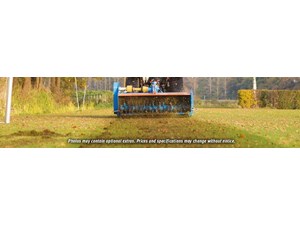

The Nobili rear mount BPR series mulchers are multi-purpose machines ideal for pasture topping with double hitch that fits to the front or rear of the tractor and hydraulic side shift. Suited to tractors up to 175HP with cutting height maintained by rear roller.
Features:
Suggested Use: Grass mowing and green prunings up to 75mm in diameter.
Construction: Low profile body, no opening tailboard.
Drive Line: PTO drive shaft with durable safety cover, heavy duty oil bath gearbox with over running clutch, taper locked pulleys and electronically balanced 8 row rotor.
Control: Hydraulic side shift.
Attachment: Cat. II three point linkage, floating top link.
Height Control: Roller (standard fitment).
Specifications:
Connection Type: Linkage
Tractor HP: 90-150 HP
Blades (Cast Hammers): 28
Working Width (mm): 2793
Product Weight (kg): 990
Dimensions WxHxD (mm): 2970W 550H 1300D
NOTE: There is a $770.00 surcharge for machinery assembly and blade changes (Excludes price of blades).
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

NOBILI 2.79M BPR MULCHERS (90-150HP)

Strong, Long Lasting Gate Pin 27mm.
Looking for an easy to install and strong bottom pin for your gate? Our zinc plated nylon gudgeons allow you to firmly secure your farm gate.
Our 25NB nylon gudgeons suit most popular farm gate sizes. It can be welded or bolted on to the bottom of your post, ready for you to sit your gate on top.
The hinge is made up of a nylon gudgeon, rather than a steel pin.
This gives a long lasting smooth swinging gate.
These nylon gudgeons are zinc plated to allow for ease of welding onto the steel post, yet still maintain a solid rust resistant coating. The backing plate has a hole above the pin and a hole below; this is a slightly stronger configuration compared to that of the long plate gudgeons, which has both holes above the pin.
Paired with a top saddle, you can expect a smooth gate swing.
Price quoted is for one pin.
Discounts apply for bulk purchases of 10+
Contact dealer for bulk pricing.
Specifications:
- 25NB gate
- 27mm pin
- Zinc plated
Features:
- Strong
- Weld on
- Bolt-on
- Long lasting
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

ROTECH RURAL BOLT-ON GUDGEON WITH BUSH 25NB -BOG25

Linkage 400 litre Super sprayer with 58 L/min pump, without boom. Ideal for spraying pasture and ag lifestyle use.
Specifications:
Market: Dairy & Livestock
Tank Size (L): 400
Connection Type: Linkage
Pump Size (L/min): 58
Height / Width / Length (mm): 1200 / 1020 / 930
Product Weight (kg): 90
Application: Pasture spraying.
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP60/20: 58L/min. capacity 2000kPa pressure. BP130/20: 132 L/min. capacity 2000kPa pressure.
Controls: 3 outlet manual control valve with pressure regulator.
Tank: Low profile, 400 and 600L Polytuff impact resistant polyethylene construction, external
sightline with floating ball and non-spill offset screw-down lid with single breather. 15L freshwater tank with screw-down lid and on/off tap. 4L toolbox with polyethylene lid.
Frame: Galvanised steel with adjustable cat I & II hitch on 400L and cat II hitch on 600L. Vertical boom channel for positioning the boom at the optimum spray height.
Agitation: Bypass agitation.
Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer, suction line strainer with stop valve fitted at the side of the tank to enable ease of filter maintenance.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Options:
- 6m Field boom
- 8m Field boom
- 10m Field boom
- 12m Fieldmaster boom with suspension (600L only)
- 6m Hydraulic fold boom
- 8m Devil boom with hydraulic fold
- 8 Jet vine boom
- 10 Jet vine boom
- Olive boom (Used with BP130/20 pump only)
- Undervine and mid row boom
- Boomless nozzle mounting kit (brass nozzle not included)
- 70L flush tank kit to flush the filter, spraylines and nozzles (600L only)
- 14L foam marker (single side)
- 16L foam marker (double side)
- 57L Paddock marker foam marker
- Economy hose reel, 20m hose (12mm ID) with Jetpro spray gun
- Reel tuff 12V remote reel with Turbo 400 spray gun (600L only) (inc. APS41 pump upgrade)
- Electric on/off control 3 section
- Electric control 3 section with in cab pressure adjustment
- Bravo 180S automatic rate controller
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 400L SUPER SERIES LINKAGE SPRAYER - BP60/20 PUMP, NO BOOM

The Wheel Riser series ramps are the latest addition to the Climaxx Aluminium Ramp range. As with all the Climaxx ramps, they are made from Aluminium, ensuring ease of positioning and transport. These service ramps are built for raising Heavy Vehicles off the ground for a variety of uses.
The Wheel Riser series ramps are specifically designed for applications where access to the underside of heavy vehicles is either difficult or restricted. The Climaxx Wheel Riser Ramps are suited but not limited to the following applications:
- Service Centres
- Loading Docks
- Heavy Vehicle Wash Bays
- Heavy Vehicle Inspection Areas
The Wheel Riser ramps are built to comply with the Australian Standard AS. 2640:2016. Released in 2016, this standard outlines stringent requirements in which portable ramps are to be designed and manufactured in accordance with. This standard was released as a result of sub-standard products being used which resulted in fatal injuries.
With over 40 years of experience manufacturing Loading Ramp solutions, we have designed a safe and compliant service ramp product to meet the industry requirements.
Specifications: A, B, C & D shown in picture diagram.
Rated Capacity per Axle: 7,500kg
Ramp Length (A): 1.42m
Raised Bed Length (B): 770mm
Height of Raised Bed (C): 250mm
Height of Raised Bed Including Ramp (D): 302mm
Ramp Tread Width: 600mm
Overall Ramp Width: 700mm
Models:
WR7522-40 - 7,500kg Rated Capacity, 1.42m Ramp Length, 770mm Raised Bed Length, 250mm Height of Raised Bed, 302mm Height of Raised Bed Including Ramp, 400mm Ramp Tread Width, 500mm Overall Ramp Width.
WR7522-60 - 7,500kg Rated Capacity, 1.42m Ramp Length, 770mm Raised Bed Length, 250mm Height of Raised Bed, 302mm Height of Raised Bed Including Ramp, 600mm Ramp Tread Width, 700mm Overall Ramp Width.
WR7536-60 - 7,500kg Rated Capacity, 1.42m Ramp Length, 2,170mm Raised Bed Length, 250mm Height of Raised Bed, 302mm Height of Raised Bed Including Ramp, 600mm Ramp Tread Width, 700mm Overall Ramp Width.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available.
Contact Farm Supplies today for sale or more information.
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SUREWELD 7.5 TONNE WHEEL RISER RAMP WITH 77CM BED, 1.42M RAMP (70CM RAMP WIDTH)

Find Farm Machinery For Sale. Browse 7653 listings from Farm Supplies Machinery & Equipment.

New & Used Farm Machinery For Sale

Farm Supplies Machinery & Equipment

Sale Price

LEMPRET WIRE & SEALANTS 5 BAR GATE - 1500MM (5FT)

SILVAN IDS2600 - HIGH PRESSURE DIAPHRAGM PUMP (249 LPM, MALE - MALE)

SILVAN 3,500L (2 ROW) P55DSE TRAILED TURBOWRAP - MIN 70PTO HP

ROTECH RURAL SADDLE ATTACHMENT 32NB (SUIT TS32HD) - SA32

HANSA CHAFF CUTTER - HANSA - F3

SILVAN 75HP POST HOLE DIGGER (AUGERS NOT INCL)

SILVAN 2.1M 131 HEAVY DUTY SLASHER (MIN 60-75HP)

SILVAN 200L SUNTUFF LINKAGE SPRAYER - MIN 20PTO HP

NOBILI 2.79M BPR MULCHERS (90-150HP)

ROTECH RURAL BOLT-ON GUDGEON WITH BUSH 25NB -BOG25

SILVAN 400L SUPER SERIES LINKAGE SPRAYER - BP60/20 PUMP, NO BOOM

SUREWELD 7.5 TONNE WHEEL RISER RAMP WITH 77CM BED, 1.42M RAMP (70CM RAMP WIDTH)

Farm Supplies Machinery & Equipment

Dealer Address
