Series 38 Manual winch folding wing frame with 6 section folding S08 Stump Jump Harrow. 5.18m coverage. Transport width: 4.52m.
Please note that 3 point linkage pins are not supplied.
Murray Series 38 Folding Harrow Frames provide a solution to the transportation of multiple Harrow sections.
Designed to fit Category I or II three-point linkage systems, Murray Series 38 Harrow Frames allow transport between paddocks and through smaller sized gates.
Each unit features a top class frame designed and backed by Murrays years of experience.
Simplicity and strength are combined in a compact frame utilising a rigid linkage-mounted centre section and manually folded wings.
Murray Series 38 Harrow Frames suit Category C Harrows including Series 04 Diamond Harrow sections and Series 08 Stump Jump Harrow sections.
Series 38 Folding Harrow Frames are supplied complete with centre section, wing attachments and all rings and links to suit your harrow type and size.
Specifications:
- Main Frame 50 x 50 x 5 RHS
- ALKO 350kg Brake Winch. 4 section frame comes with 1 - Brake Winch as standard. 5 and 6 section frames come with 2 Brake Winches as standard.
- Lock out hinge mechanism
- Anchor points to suit desired Harrow
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 5.18M MANUAL FOLDING FRAME STUMP JUMP HARROW

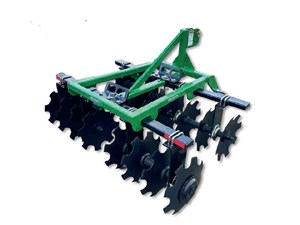

Murray Series 32 20 Disc Harrow - Offset Tandem 2.28m..
The Murray Series 32 Disc Harrow is an excellent choice for soil preparation and breaking up virgin land. Built heavy duty, the tandem disc setup combines rugged capabilities with smart features.
The durable box frame is built in two parts, with a pivot point that is able to be locked providing different working configurations. It supports four gangs of discs two front and two rear. Gang angles can be individually adjusted by way of crank screws to suit different conditions. The angle can be adjusted between 0 and 20 degrees to vary the aggression of cultivation. Disc gangs are mounted on sealed-for-life bearings set in rubber. No greasing is required which minimises unproductive maintenance downtime.
In a standard form the Series 32 is a four gang Disc Harrow for use with light to medium powered tractors. By removing the rear frame section and gangs, the Series 32 becomes a handy two-gang implement for light work. Alternatively, the rear frame section and gangs can be pivoted upwards to provide additional weight for penetration by the leading two gangs in heavier conditions. Under uneven ground conditions, the rear frame section and gangs can be allowed to float over undulations for even cultivation.
The Murray Series 32 Disc Harrow is a three-point linkage mounted implement suitable for Cat II hitches. It is supplied complete with fittings and fasteners including linkage pins and clips. Available in two popular sizes 16 discs covering around 1.83 metres (6ft) and a 20 disc model covering 2.28 metres (7ft 6in) approx.
Under certain conditions Disc Harrows can throw up a furrow between the inner discs. The option of a centre spring tine is available which will maintain a level finished behind the harrow in these situations. Optional sets of blade scrapers are also available to keep discs clean and working efficiently in wet or sticky conditions.
Features:
- Available in 16 Disc or 20 Disc models
- Suitable for Cat II systems
- Adjustable gangs from 0 20 degrees
- Sealed for life bearings
- 559mm (22 inch) scalloped discs
- Removable/ pivot rear frame section
Specifications:
- Coverage (m): 2.28
- Coverage (ft in): 7.6
- Power Requirement: 40 to 65 hp
- Standard Discs: 22 Scalloped Flatback Discs
- Weight (kg): 552
Optional Equipment:
- Scraper set: 16 Disc- 43kg
- Scraper set: 20 Disc - 54kg
- Spring Tooth Centre Tine assembly (1)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

MURRAY 2.28M 20 DISC HARROW - OFFSET TANDEM

Merbein ploughs consist of left hand and right hand, two or three disc units attached to a range of toolbar sizes, to create just the right bed or channel for your needs.
This item includes:
Two 0522 units with x3 Discs each side plus one 0528 6ft (1.8m) Toolbar.
Please specify left or right hand when ordering. Left hand throws dirt to the left hand side and right hand throws dirt to the right hand side.
Also Available:
0536 Merbein rear coulter (one side only)
Please specify left or right hand when ordering. Left hand throws dirt to the left hand side and right hand throws dirt to the right hand side.
0528 6ft (1.8m) merbein toolbar
0530 7ft (2.1m) merbein toolbar
0532 8ft (2.4m) merbein toolbar
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS MERBEIN PLOUGHS 3 DISCS PER SIDE WITH 6FT TOOLBAR - 0522 X2 INCL 0528

The RM80 offset disc cultivating plough is designed for extremely tough conditions. It is similar to the RM75 with the main difference being in the greater number of bearings and shorter axles in the disc gang assemblies.
Features:
Ideal for primary and secondary tillage for 75-165 HP tractors.
Fitted with 24inch x 5mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacturing failure.
Fitted with two 11×16 flotation wheels on a 5 tonne axle. Hydraulic wheel lift is standard. All models fitted with 8inch Australian made Eaton Rams.
40mm square high tensile gang bolts.
Single pressure screw can be adjusted to transfer weight to the rear of the cultivator, resulting in even disc penetration. Option of fixed or floating position.
Flanged disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Fully adjustable drawbar.
Solid cast spools throughout the gangs provide ballast weight in the gangs, where it counts, rather than the main frame. Each is individually machined to suit the disc for extra strength.
9 inch disc spacing.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400 psi.
Prong type scrapers are standard formed scrapers available on request.
Parking jack is standard.
Optional furrow fillers available.
Specifications:
Approx Weight: 1970kg
No of bearings: 12
No of axles: 6
Cutting width: 2.74m (9ft)
Options:
0953 Optional Furrow filler (not sold separately)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

JOHN BERENDS RM80 HD TRAILING OFFSET 24 PLATE 24 INCH 5MM SCALLOP DISCS - 0851, SUIT 75-165HP

5.58m Murray Series 03 Levelling Harrow 3 Rank Deep Sections & Standard Drawbar, Heavy Duty. Complete Set.
3414 - 5.58m (18ft 4in) (28 Row) 6/12 Tine - 114kg.
Murray Levelling Harrows are an excellent choice to complement sowing or cultivation implements. Designed to level soil and seedbeds, the flexible frame design provides durability in all soil types. 3 and 4 rank versions are suitable for use to cover seed in light to medium soils in conjunction with combines and seed drills. The 5 rank model is used in heavier soils to counter weed growth and break down large clods. It is a popular implement that complements cultivators, scarifiers or chisel plows.
If you require additional weight to work your land, a Heavy version of our Series 03 Levelling Harrows is available. Made from heavier High Carbon Steel, the Tine Spacing remains the same as the standard version.
The Series 03 Levelling Harrow is available in either 3 or 4 row widths allowing extensions in increments of 235mm (9 ¼) to suit primary machines of almost any width. This allows a combination of harrow sections to be configured to suit your application.
A full range of standard and heavy duty drawbars are available to correctly match your soil conditions and available working width of your equipment. Harrow sets complete with drawbars range from 2.31m (77) to 5.58m (184) in width.
Specifications:
- Tine Spacing 76mm (3in).
- Tine Length 190mm (7 1/2in) approx.
- Centre to centre of Front Hooks 235mm (9 1/4in).
Features:
- High Carbon Cut Tines.
- Light models manufactured from 25 x 6mm carbon steel and Heavy models from 32 x 6mm.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY SERIES 03 LEVELLING HARROW 5.58M, 3 RANK DEEP SECTIONS & STD DRAWBAR-HEAVY DUTY-COMPLETE SET

The RM80 offset disc cultivating plough is designed for extremely tough conditions. It is similar to the RM75 with the main difference being in the greater number of bearings and shorter axles in the disc gang assemblies.
Features:
Ideal for primary and secondary tillage for 75-165 HP tractors.
Fitted with 24inch x 5mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacturing failure.
Fitted with two 11×16 flotation wheels on a 5 tonne axle. Hydraulic wheel lift is standard. All models fitted with 8inch Australian made Eaton Rams.
40mm square high tensile gang bolts.
Single pressure screw can be adjusted to transfer weight to the rear of the cultivator, resulting in even disc penetration. Option of fixed or floating position.
Flanged disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Fully adjustable drawbar.
Solid cast spools throughout the gangs provide ballast weight in the gangs, where it counts, rather than the main frame. Each is individually machined to suit the disc for extra strength.
9 inch disc spacing.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400 psi.
Prong type scrapers are standard formed scrapers available on request.
Parking jack is standard.
Optional furrow fillers available.
Specifications:
Approx Weight: 1700kg
No of bearings: 8
No of axles: 4
Cutting width: 2.3m (7ft 6inch)
Options:
0953 Optional Furrow filler (not sold separately)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS RM80 HD TRAILING OFFSET 20 PLATE 24 INCH 5MM SCALLOP DISCS - 0850, SUIT 75-165HP

Heavy duty trailing tandem disc plough designed for heavy cultivation in hard conditions. The angle is hydraulically adjusted and has a transport width of under 2.4m.
Features:
Available in 28, 32, 36, 40, 44 and 48 plate models at 9 inch disc spacing's.
Fitted with 24 inch x 6mm or 26 inch x 6mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacturing failure.
All models are fitted with hydraulic gang adjustment which allows the gangs to be folded parallel with the main frame, to be under 2.4m overall width.
Gangs can also be opened right up to no angle at all when only a fine till of the topsoil is required.
Solid cast of spools throughout the gangs provide ballast weight in the gangs, where it counts, rather than in the main frame. Each is individually machined to suit the disc for extra strength.
Flanged disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Buster tine removes centre ridge to create a level finish.
Integrated furrow fillers are standard.
Fitted with four Land Cruiser wheels on a 5 tonne axle. Hydraulic wheel lift is standard.
40mm square high tensile gang bolts.
Fully adjustable drawbar height with parallel lift for better transportation.
Wheelkit locking arms reduce stress on the hydraulics when transporting.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400 psi.
Australian made Eaton cylinders.
Prong type scrapers are standard formed scrapers on request.
Parking jack is standard.
Specifications:
Approx Weight: 4130kg
No. of Bearings: 24
No. of axles: 12
Cutting width: 5.71m (18ft 9inch)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS TH100 HD TRAILING TANDEM DISCS - 48 PLATE X 24 INCH DISCS - 0977

3.02m Murray Series 03 Levelling Harrow 3 Rank Deep Sections & Standard Drawbar, Heavy Duty. Complete Set.
3404 - 3.02m (9ft 11in) - 3/9 Tine, 1/12 Tine - 52kg.
Murray Levelling Harrows are an excellent choice to complement sowing or cultivation implements. Designed to level soil and seedbeds, the flexible frame design provides durability in all soil types. 3 and 4 rank versions are suitable for use to cover seed in light to medium soils in conjunction with combines and seed drills. The 5 rank model is used in heavier soils to counter weed growth and break down large clods. It is a popular implement that complements cultivators, scarifiers or chisel plows.
If you require additional weight to work your land, a Heavy version of our Series 03 Levelling Harrows is available. Made from heavier High Carbon Steel, the Tine Spacing remains the same as the standard version.
The Series 03 Levelling Harrow is available in either 3 or 4 row widths allowing extensions in increments of 235mm (9 ¼) to suit primary machines of almost any width. This allows a combination of harrow sections to be configured to suit your application.
A full range of standard and heavy duty drawbars are available to correctly match your soil conditions and available working width of your equipment. Harrow sets complete with drawbars range from 2.31m (77) to 5.58m (184) in width.
Specifications:
- Tine Spacing 76mm (3in).
- Tine Length 190mm (7 1/2in) approx.
- Centre to centre of Front Hooks 235mm (9 1/4in).
Features:
- High Carbon Cut Tines.
- Light models manufactured from 25 x 6mm carbon steel and Heavy models from 32 x 6mm.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY SERIES 03 LEVELLING HARROW 3.02M, 3 RANK DEEP SECTIONS & STD DRAWBARS-HEAVY DUTY-COMPLETE SET

Features:
- 150 x 100 x 8mm chassis
- 200 x 120 x 8mm gang beams
- 28 (710mm) scalloped discs on this CVH-71 model (8mm thick)
- Disc scrapers
- 10 (260mm) disc spacing
- Eight double taper roller bearings with a 5 year warranty
- Reinforced bearing protectors
- Manual gang angle adjustment from 8 - 24 degrees
- Manual fore/aft adjustment with spring
- 40mm square silicon manganese steel disc axles
- 400 / 60 x 15.5 flotation tyres
- Swivel hitch
Super heavy offset discs for demanding agricultural and cropping applications. High quality French manufactured with a 5 year bearing warranty.
Working Width = 3,200 mm
Overall Width = 3,450 mm
Required HP Range = 160 - 220 hp
Weight = 2,840 kg
Number of Discs = 26
Options available:
- Hydraulic fore/aft adjustment
- Hydraulic drawbar adjustment
- Hydraulic gang angle adjustment
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available
Contact Farm Supplies today for sale or more information
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

GB 3.2M, 26 DISCS (160-220HP) HEAVY DUTY OFFSET DISCS

Series 30 2.48m Mounted Spring Tine Harrow System - Light Duty 2 Rank- Straight Tines.
The Series 30 Light Duty is the perfect implement for sandy to light soils. Specifically designed to increase trash flow using wide spacing between each straight tine, the 2 rank is a lighter duty harrow available in five sizes ranging from 1.78m (510) to 3.20m (106). Each section is supplied complete with two mount arms.
Harrow depth control is adjustable by means of specially designed cam-action fitting within the mount arm.
Specifications:
- Coverage: 2.48m
- Weight: 68kg
- Tine spacing 85mm (3 3/8) 2 Rank.
- Tine Diameter 10mm Straight Tine.
- Tine length 385mm (15) approx.
- Rank Spacing 324mm (12 3/4").
- 2 Mount Arms per unit.
- Mount clamp suits 81mm to 100mm (3 1/4 to 4) square frame positioned on the flat or on the edge (Spacers
required for 75mm [3] square frame).
Features:
- May be attached to the rear bar of light duty cultivators, seeding drills, etc.
- Unit features two Series 30 Mount Arms.
- A cam incorporated in the mount clamp adjusts the height of the Harrow Tine Section.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

MURRAY 2.48M MOUNTED SPRING TINE HARROW SYSTEM - LIGHT DUTY - 2 RANK

Medium duty rotary hoe with gear side drive. Suitable for tractors up to 55 hp. (4 Speed)
Specifications:
Actual Width: 200cm
Working Width: 185cm
Required HP: 35hp
Weight: 342kg
No of Blades: 42
Features:
Rated up to 55hp
Single speed gearbox
540 rpm
Side gear drive
70 x 7mm "L" blades
200mm working depth
Side-skids
Foot stand
Slip clutch
Models:
APLHA 155 160cm Working Width 25-55hp 310 kg 36 Blades
APLHA 165 175cm Working Width 25-55hp 322 kg 36 Blades
APLHA 185 185cm Working Width 30-55hp 330 kg 42 Blades
APLHA 155 155cm Working Width 35-55hp 342 kg 42 Blades
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

CELLI 1.85M (55HP GEARBOX) ALPHA ROTARY HOE (4 SPEED)

Lima Bean Seed Disc. 30.5cm spacing.
In addition to lima beans, will also plant peanuts and other large seeds 15.9mm in size
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

EARTHWAY LIMA BEAN (LARGE) SEED PLATE ES-1002-30

Find Tillage AND Seeding For Sale. Browse 972 Tillage AND Seeding listings from Farm Supplies Machinery & Equipment.

New & Used Tillage AND Seeding For Sale in Australia

Farm Supplies Machinery & Equipment

Sale Price

MURRAY 5.18M MANUAL FOLDING FRAME STUMP JUMP HARROW

MURRAY 2.28M 20 DISC HARROW - OFFSET TANDEM

JOHN BERENDS MERBEIN PLOUGHS 3 DISCS PER SIDE WITH 6FT TOOLBAR - 0522 X2 INCL 0528

JOHN BERENDS RM80 HD TRAILING OFFSET 24 PLATE 24 INCH 5MM SCALLOP DISCS - 0851, SUIT 75-165HP

MURRAY SERIES 03 LEVELLING HARROW 5.58M, 3 RANK DEEP SECTIONS & STD DRAWBAR-HEAVY DUTY-COMPLETE SET

JOHN BERENDS RM80 HD TRAILING OFFSET 20 PLATE 24 INCH 5MM SCALLOP DISCS - 0850, SUIT 75-165HP

JOHN BERENDS TH100 HD TRAILING TANDEM DISCS - 48 PLATE X 24 INCH DISCS - 0977

MURRAY SERIES 03 LEVELLING HARROW 3.02M, 3 RANK DEEP SECTIONS & STD DRAWBARS-HEAVY DUTY-COMPLETE SET

GB 3.2M, 26 DISCS (160-220HP) HEAVY DUTY OFFSET DISCS

MURRAY 2.48M MOUNTED SPRING TINE HARROW SYSTEM - LIGHT DUTY - 2 RANK

CELLI 1.85M (55HP GEARBOX) ALPHA ROTARY HOE (4 SPEED)

EARTHWAY LIMA BEAN (LARGE) SEED PLATE ES-1002-30

Farm Supplies Machinery & Equipment

Dealer Address
