5 leg Subsoiler with tines & discs up to 450mm working depth. Made in new Zealand.
304 Auto Reset Panerazers are the ultimate sub soiling machine. Especially when the soils to be aerated are heavy & full of obstructions.
Being auto reset makes your sub soiling job seamless as the legs simply lift over any obstruction & immediately reset automatically so you can continue aerating your soils without stopping. Leaf spring reset has a great advantage over rams, not only do they require less maintenance, but the legs are at the highest point of resistance while in the ground & resistance reduces as they lift.
This ensures the legs do not tip falsely but ensures they do clear obstructions when struck.
Rata Panerazer legs are in a 'V' formation. This reduces drag between the legs making it easier to pull and uses less fuel. V formation also means the legs leave the ground independently at the headlands which eliminates 'heaving'.
They feature a heavy duty build RHS main frame construction with reinforcing to cope with hard conditions. The wear protected legs are also securely bolted into the reset mounts.
Working depth is easily controlled via the rear roller setting and tractor 3 point linkage. The rear roller is secured to the main aerator frame with heavy machine pins.
The rear roller is securely mounted into a sealed bearing to ensure smooth operation with minimal wear. The roller is also kept clean by a scraper mounted just behind it.
An innovative modular leg, foot & point assembly provides maximum flexibility of parts. Cast point provides extra wear protection in the form of bevelled hard wearing plate.
Winged feet are an option on the Rata Panerazer range (see photos attached). These provide extra ground lift when sub soiling to create greater subsoil disturbance.
The auto reset system is powered by heavy duty leaf springs mounted on each leg. Leaf springs reset immediately after tripping & clearing the obstacle unlike other reset systems such as hydraulic. This tension is easily adjusted via the 'tension bolt' mounted on the leg. This enables the operator to adjust the tension to the ideal level required for the ground they're operating in. The tension adjustment spanner is included with the implement.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

RATA 5 LEG (AUTO RESET) SUBSOIL CULTIVATOR (120HP RECOMMENDED)

Note: This model does include a crumbler.
Features:
Standard model features a 50×12 flat frame with 50×50
RHS perimeter frame. The flat section frame allows more vibration through out the machine giving a better cultivating effect.
Adjustable headstock allows machine to be offset for closer cultivation near fences, trees, vines etc.
Four bar assembly allows approx 400mm (16') tine clearance which is extremely important in preventing trash build up.
Please note the actual width of the machine is 125mm wider than the working width, and the optional wheel kit adds an additional 500mm.
Specifications:
No of Tines: 28
Tine Size: 32mm x 10mm
Frame Size: 50mm x 12mm Flat
Tractor HP Guide: 2HP per tine
Headstock: 3 Point Linkage Cat 1/2
Options:
Pair Pneumatic Depth Wheels
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS 2.8M S-TINE (28 TINES) STANDARD CULTIVATOR (WITH CRUMBLER) - MIN 56HP

5 pcs optional Seed Plates for the Earthway Seeder.
Plates are made of durable plastic. Works for Light Carrot, Broccoli, Cucumber, Popcorn and Lima bean.
Optional Seed Plates for the EarthWay® Precision Seeder 1001 B.
Five plates included are...
Light Carrot 18108: (4.5" spacing/11.4cm) - will plant light lettuce, turnip, rutabaga, light cabbage, mustard, kale, and other fine seeds 0.150"/3.8mm.
Broccoli 18109: (1" spacing/2.5cm) - will plant mustard, cabbage, cauliflower, turnip, rutabaga and other fine seeds 0.100"/2.5mm.
Cucumber 18110: (9" spacing/22.9cm) - will plant some pumpkin, gourds, squash and other flat seeds 0.312"/8mm.
Popcorn 18112: (9" spacing/22.9cm) - will plant medium sized seeds of a size less than 0.250"/6.3mm.
Lima Bean 18124: (12"/30.5cm) - will plant peanuts and other large seeds 0.625"/15.9mm.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

EARTHWAY OPTIONAL SEED PLATES - ES-P60010

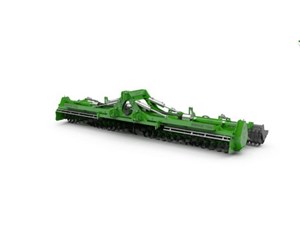

Super heavy duty power harrow for tractors up to 250 hp. For the most demanding agricultural conditions, contractors and large horticultural operations.
Specifications:
Actual Width: 405cm
Working Width: 400cm
Required HP: 180-250hp
Weight: Cage roller - 1580kg, Packer roller - 1790kg
No of Blades: 32
Features:
Rated up to 250hp
Two speed gearbox
1000rpm
Category two linkage
Swinging lower links
Rear levelling bar with winder control and indicator
Tine locking counter plates
Rear levelling bar with winder height control and indicator
Hydraulic depth control
330 x 100 x 18mm tines
Swept back, low hp requirement tines
330mm working depth
45 degree sliding side plates
Cam clutch
Greasable top bearings
Rotor protectors are standard
Accessories:
Oil cooler kit
Track eradicators - fits onto front bar (each)
Tungsten dipped tines
Options:
Roller Options
Cage roller (440mm diameter)
Packer roller (470mm diameter)
Models:
MAXI350 350cm Working Width 160-250HP 28 Tines
MAXI400 400cm Working Width 180-250HP 32 Tines
MAXI450 450cm Working Width 200-250HP 36 Tines
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

CELLI 4M (180-250 HP) MAXI POWER HARROW

CS Series Linkage disc cultivator 2.0m, 18 plate x 20 inch discs.
Designed for light-medium (BS) and medium-heavy (CS) secondary tillage applications, such as orchard and vegetable farming, general farming, weed control and fire breaks.
Features:
- Spring-mounted headstock (BS)
- Square DURAX axles
- Triple sealed, self-aligning bearings
- Gang angle adjustment for tillage control (CS)
Specifications:
- 20 inch discs
- 18 discs
- Weight: 630kg
- 2.0m cut
- 60hp required
- Cat 1/2 linkage.
Options:
- Trash scraper set
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JARRETT IMPLEMENTS 2.0M LINKAGE DISC CULTIVATOR CS SERIES 20INCH DISCS - MIN 60HP REQ

Features:
120 HP multi speed gearbox with rear PTO (540 RPM).
2080mm working width.
48 x L blades total.
Side gear drive.
CE safety guards.
Floating front hitches.
1 3/8in 6 spline PTO with slip clutch.
Specifications:
Model Code: B123V-205
Connection Type: Linkage
Min Tractor PTO HP: 60-120 HP
Working Width (mm): 2080
Working Depth (mm): 100-250
Product Weight (kg): 700
Total Width (mm): 2270
Specifications with Optional Cage Roller
Product Weight (kg): 860
Options:
Front Depth Wheels
Pair of Side Discs
Wheel Track Eradicator
Note: An additional surcharge applies for machinery assembly.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

BREVIGLIERI 2.08M B123 ROTARY HOE (MIN 60-120HP)

Series 38 Manual winch folding wing frame with 6 section folding S44 Stump Jump Harrow. 5.18m coverage. Transport width: 4.60m.
Please note that 3 point linkage pins are not supplied.
Murray Series 38 Folding Harrow Frames provide a solution to the transportation of multiple Harrow sections.
Designed to fit Category I or II three-point linkage systems, Murray Series 38 Harrow Frames allow transport between paddocks and through smaller sized gates.
Each unit features a top class frame designed and backed by Murrays years of experience.
Simplicity and strength are combined in a compact frame utilising a rigid linkage-mounted centre section and manually folded wings.
Murray Series 38 Harrow Frames suit Category C Harrows including Series 04 Diamond Harrow sections and Series 08 Stump Jump Harrow sections.
Series 38 Folding Harrow Frames are supplied complete with centre section, wing attachments and all rings and links to suit your harrow type and size.
Specifications:
- Main Frame 50 x 50 x 5 RHS
- ALKO 350kg Brake Winch. 4 section frame comes with 1 - Brake Winch as standard. 5 and 6 section frames come with 2 Brake Winches as standard.
- Lock out hinge mechanism
- Anchor points to suit desired Harrow
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

MURRAY 5.18M MANUAL FOLDING FRAME STUMP JUMP HARROW

A robust harrow ideal for pasture renovation, landscaping, horse arenas, race tracks, sports fields and for seed/fertiliser incorporation.
Features:
12mm scarifier tines break up manure, loosens hard surfaces and increases aeration which in turn stimulates new growth.
12mm rear smudger bars spread manure and help level the ground.
Simple flexible design follows the ground contours without tangling up.
Self cleaning flexible action.
Trailing design with sturdy 100×50 channel iron draw bar and 12mm towing chain.
Trailing weights 4 on 10ft (3m)
Optional lifting frame available for easy transporting.
Very low maintenance.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS 10FT PASTURE HARROWS - 0404

Heavy duty trailing tandem disc plough designed for heavy cultivation in hard conditions. The angle is hydraulically adjusted and has a transport width of under 2.4m.
Features:
Available in 28, 32, 36, 40, 44 and 48 plate models at 9 inch disc spacing's.
Fitted with 24 inch x 6mm or 26 inch x 6mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacturing failure.
All models are fitted with hydraulic gang adjustment which allows the gangs to be folded parallel with the main frame, to be under 2.4m overall width.
Gangs can also be opened right up to no angle at all when only a fine till of the topsoil is required.
Solid cast of spools throughout the gangs provide ballast weight in the gangs, where it counts, rather than in the main frame. Each is individually machined to suit the disc for extra strength.
Flanged disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Buster tine removes centre ridge to create a level finish.
Integrated furrow fillers are standard.
Fitted with four Land Cruiser wheels on a 5 tonne axle. Hydraulic wheel lift is standard.
40mm square high tensile gang bolts.
Fully adjustable drawbar height with parallel lift for better transportation.
Wheelkit locking arms reduce stress on the hydraulics when transporting.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400 psi.
Australian made Eaton cylinders.
Prong type scrapers are standard formed scrapers on request.
Parking jack is standard.
Specifications:
Approx Weight: 3680kg
No. of Bearings: 16
No. of axles: 8
Cutting width: 4.33m (14ft 3inch)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS TH100 HD TRAILING TANDEM DISCS - 36 PLATE X 24 INCH DISCS - 0974

The RM75 offset disc cultivating plough is a tough, rugged machine designed for Australian conditions. The RM75 is similar to the RM80 with the main difference being in the lesser number of bearings and longer axles. Ideal for primary and secondary tillage for 60HP -130HP tractors.
Features:
Fitted with 24 inch x 5mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacture failure.
Fitted with two 750×16 Land Cruiser wheels on a 5 tonne axle. Hydraulic wheel lift is standard. All models fitted with 8 inch Australian made Eaton rams.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400psi.
Twin pressure screws can be adjusted individually to transfer weight to the rear of the plough, resulting in even disc penetration.
40mm square high tensile gang bolts.
Flange disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Fully adjustable drawbar.
Solid cast spools throughout the gangs provide ballast weight in the gangs, where it counts, rather then the main frame. Each is individually machined to suit the disc for extra strength.
9 inch disc spacing.
Fitted with hydraulic lift as standard.
Prong type scrapers are standard formed scrapers on request.
Parking jack is optional.
Optional furrow fillers available.
Specifications:
Approx Weight: 1725kg
No of bearings: 8
No of axles: 4
Cutting width: 2.5m (8ft 3inch)
Options:
0951 Optional jack
0953 Optional Furrow filler (not sold separately)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS RM75 HD TRAILING OFFSET 22 PLATE 5MM DISCS - 0844, SUIT 60-130HP

4.87m Murray Series 03 Levelling Harrow 5 Rank Deep Sections & Standard Drawbar, Heavy Duty. Complete Set.
3812 - 4.87m (16ft) (24 Row) 3/15 Tine, 3/20 Tine - 142kg.
Murray Levelling Harrows are an excellent choice to complement sowing or cultivation implements. Designed to level soil and seedbeds, the flexible frame design provides durability in all soil types. 3 and 4 rank versions are suitable for use to cover seed in light to medium soils in conjunction with combines and seed drills. The 5 rank model is used in heavier soils to counter weed growth and break down large clods. It is a popular implement that complements cultivators, scarifiers or chisel plows.
If you require additional weight to work your land, a Heavy version of our Series 03 Levelling Harrows is available. Made from heavier High Carbon Steel, the Tine Spacing remains the same as the standard version.
The Series 03 Levelling Harrow is available in either 3 or 4 row widths allowing extensions in increments of 235mm (9 ¼) to suit primary machines of almost any width. This allows a combination of harrow sections to be configured to suit your application.
A full range of standard and heavy duty drawbars are available to correctly match your soil conditions and available working width of your equipment. Harrow sets complete with drawbars range from 2.31m (77) to 5.58m (184) in width.
Specifications:
- Tine Spacing 76mm (3in).
- Tine Length 190mm (7 1/2in) approx.
- Centre to centre of Front Hooks 235mm (9 1/4in).
Features:
- High Carbon Cut Tines.
- Light models manufactured from 25 x 6mm carbon steel and Heavy models from 32 x 6mm.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY SERIES 03 LEVELLING HARROW 4.87M, 5 RANK DEEP SECTIONS & STD DRAWBAR-HEAVY DUTY-COMPLETE SET

3.70m Murray Series 03 Levelling Harrow 5 Rank Deep Sections & Standard Drawbar, Light Duty. Complete Set.
3707 - 3.70m (12ft 2in) 4/15 Tine, 1/20 Tine - 83kg.
Murray Levelling Harrows are an excellent choice to complement sowing or cultivation implements. Designed to level soil and seedbeds, the flexible frame design provides durability in all soil types. 3 and 4 rank versions are suitable for use to cover seed in light to medium soils in conjunction with combines and seed drills. The 5 rank model is used in heavier soils to counter weed growth and break down large clods. It is a popular implement that complements cultivators, scarifiers or chisel plows.
If you require additional weight to work your land, a Heavy version of our Series 03 Levelling Harrows is available. Made from heavier High Carbon Steel, the Tine Spacing remains the same as the standard version.
The Series 03 Levelling Harrow is available in either 3 or 4 row widths allowing extensions in increments of 235mm (9 ¼) to suit primary machines of almost any width. This allows a combination of harrow sections to be configured to suit your application.
A full range of standard and heavy duty drawbars are available to correctly match your soil conditions and available working width of your equipment. Harrow sets complete with drawbars range from 2.31m (77) to 5.58m (184) in width.
Specifications:
- Tine Spacing 76mm (3in).
- Tine Length 190mm (7 1/2in) approx.
- Centre to centre of Front Hooks 235mm (9 1/4in).
Features:
- High Carbon Cut Tines.
- Light models manufactured from 25 x 6mm carbon steel and Heavy models from 32 x 6mm.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY SERIES 03 LEVELLING HARROW 3.70M, 5 RANK DEEP SECTIONS & STD DRAWBAR-LIGHT DUTY-COMPLETE SET

Find Tillage AND Seeding For Sale. Browse 984 Tillage AND Seeding listings from Farm Supplies Machinery & Equipment.

New & Used Tillage AND Seeding For Sale in Australia

Farm Supplies Machinery & Equipment

Sale Price

RATA 5 LEG (AUTO RESET) SUBSOIL CULTIVATOR (120HP RECOMMENDED)

JOHN BERENDS 2.8M S-TINE (28 TINES) STANDARD CULTIVATOR (WITH CRUMBLER) - MIN 56HP

EARTHWAY OPTIONAL SEED PLATES - ES-P60010

CELLI 4M (180-250 HP) MAXI POWER HARROW

JARRETT IMPLEMENTS 2.0M LINKAGE DISC CULTIVATOR CS SERIES 20INCH DISCS - MIN 60HP REQ

BREVIGLIERI 2.08M B123 ROTARY HOE (MIN 60-120HP)

MURRAY 5.18M MANUAL FOLDING FRAME STUMP JUMP HARROW

JOHN BERENDS 10FT PASTURE HARROWS - 0404

JOHN BERENDS TH100 HD TRAILING TANDEM DISCS - 36 PLATE X 24 INCH DISCS - 0974

JOHN BERENDS RM75 HD TRAILING OFFSET 22 PLATE 5MM DISCS - 0844, SUIT 60-130HP

MURRAY SERIES 03 LEVELLING HARROW 4.87M, 5 RANK DEEP SECTIONS & STD DRAWBAR-HEAVY DUTY-COMPLETE SET

MURRAY SERIES 03 LEVELLING HARROW 3.70M, 5 RANK DEEP SECTIONS & STD DRAWBAR-LIGHT DUTY-COMPLETE SET

Farm Supplies Machinery & Equipment

Dealer Address
