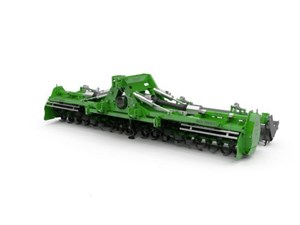

350 series Mekfold Folding Power Harrow with 450mm cage roller.
Specifications:
Tractor HP: 180-350
Working Width: 4960mm
Folded Width for Transport: 2500
Working Depth: 100-300
Blades: 40
Weight: 2870kg
Features:
- Single speed central gearbox (1000 RPM) and multi speed side gearboxes.
- Phased rotors.
- Stone protection system.
- Levelling bar standard.
- Floating side shields.
- Folded width 250cm.
- 450mm Cage roller standard.
- Konic - tapered roller bearings on MEKFOLD350.
- 1 3/4" 20 spline PTO with cam clutch.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

BREVIGLIERI 5M MEKFOLD350 POWER HARROW (180-350HP) WITH 450MM CAGE ROLLER

3.25m Murray Series 03 Levelling Harrow 3 Rank Deep Sections & Standard Drawbar, Heavy Duty. Complete Set.
3405 - 3.25m (10ft 8in) - 2/9 Tine, 2/12 Tine - 58kg.
Murray Levelling Harrows are an excellent choice to complement sowing or cultivation implements. Designed to level soil and seedbeds, the flexible frame design provides durability in all soil types. 3 and 4 rank versions are suitable for use to cover seed in light to medium soils in conjunction with combines and seed drills. The 5 rank model is used in heavier soils to counter weed growth and break down large clods. It is a popular implement that complements cultivators, scarifiers or chisel plows.
If you require additional weight to work your land, a Heavy version of our Series 03 Levelling Harrows is available. Made from heavier High Carbon Steel, the Tine Spacing remains the same as the standard version.
The Series 03 Levelling Harrow is available in either 3 or 4 row widths allowing extensions in increments of 235mm (9 ¼) to suit primary machines of almost any width. This allows a combination of harrow sections to be configured to suit your application.
A full range of standard and heavy duty drawbars are available to correctly match your soil conditions and available working width of your equipment. Harrow sets complete with drawbars range from 2.31m (77) to 5.58m (184) in width.
Specifications:
- Tine Spacing 76mm (3in).
- Tine Length 190mm (7 1/2in) approx.
- Centre to centre of Front Hooks 235mm (9 1/4in).
Features:
- High Carbon Cut Tines.
- Light models manufactured from 25 x 6mm carbon steel and Heavy models from 32 x 6mm.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY SERIES 03 LEVELLING HARROW 3.25M, 3 RANK DEEP SECTIONS & STD DRAWBARS-HEAVY DUTY-COMPLETE SET

Berends Linkage Offset Discs - Medium Duty
10 Plate - 18in x 4mm scallop discs
These medium duty offset discs are designed for small to medium size tractors. They are fitted with 28mm (1 1/8) square high tensile gang bolt axles and high quality triple sealed bearings.
The 10, 12, 14 and 16 plate machines have four bearings whilst the 18 plate has 6 bearings.
The 10 and 12 plate models are supplied with a single boom main frame with a support bar between the gangs whilst the 14-18 plate are supplied with a double boom main frame.
Adjustment is very simple, the U bolts which clamp the gangs on are simply loosened and the gangs can be adjusted laterally and for angle.
The standard set-up for an offset discs is the front gang running at a 21 angle whilst the rear gang is set at 23.
There is an art to setting up a disc, but if you have lateral and full angle adjustment - as these discs have - you are able to set a disc to give a level finish.
Features:
Disc type Scalloped Boron Coated
1 1/8 (28mm) square high tensile axles
Triple sealed bearings
10 and 12 plate models on single bar frame and 14 to 18 plate models on double bar frame.
Model:
0247 - 10 Plate - 18in x 4mm scallop discs
All prices include GST.
Dealer enquiries welcome.
Finance is now available.
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS MEDIUM DUTY OFFSET DISCS - 10 PLATE X 18 INCH DISCS - 0247, MIN 20HP

3.70m Murray Series 03 Levelling Harrow 4 Rank Deep Sections & Standard Drawbar, Light Duty. Complete Set.
3507 - 3.70m (12ft 2in) 4/12 Tine, 1/16 Tine - 67kg.
Murray Levelling Harrows are an excellent choice to complement sowing or cultivation implements. Designed to level soil and seedbeds, the flexible frame design provides durability in all soil types. 3 and 4 rank versions are suitable for use to cover seed in light to medium soils in conjunction with combines and seed drills. The 5 rank model is used in heavier soils to counter weed growth and break down large clods. It is a popular implement that complements cultivators, scarifiers or chisel plows.
If you require additional weight to work your land, a Heavy version of our Series 03 Levelling Harrows is available. Made from heavier High Carbon Steel, the Tine Spacing remains the same as the standard version.
The Series 03 Levelling Harrow is available in either 3 or 4 row widths allowing extensions in increments of 235mm (9 ¼) to suit primary machines of almost any width. This allows a combination of harrow sections to be configured to suit your application.
A full range of standard and heavy duty drawbars are available to correctly match your soil conditions and available working width of your equipment. Harrow sets complete with drawbars range from 2.31m (77) to 5.58m (184) in width.
Specifications:
- Tine Spacing 76mm (3in).
- Tine Length 190mm (7 1/2in) approx.
- Centre to centre of Front Hooks 235mm (9 1/4in).
Features:
- High Carbon Cut Tines.
- Light models manufactured from 25 x 6mm carbon steel and Heavy models from 32 x 6mm.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY SERIES 03 LEVELLING HARROW 3.70M, 4 RANK DEEP SECTIONS & STD DRAWBAR-LIGHT DUTY-COMPLETE SET

Series 08 - 4.31m Stump Jump Harrow 3 Point Linkage Hoist Lift Type (4 point pull) featuring Series 21 Hoist Frame - Complete Set.
Please note 2nd picture shows how harrows are attached to frame, but the harrows in that picture are not stump jump harrows. Picture is for example only.
Complete Set Comprises - Front Lift Drawbar, Harrow sections, Rear Lift Drawbar including Lift Clips and Series 21 3-Point Linkage Hoist Frame.
8031 - 5 section 4.31m (14ft 2in) - 349kg.
If your ground is uneven, roughly cleared or contains light stony areas then the flexible Murray series 08 Stump Jump Harrow is the secondary tillage implement to consider.
Ruggedly constructed using High Carbon Steel, the floating stump jump action is a time tested agricultural implement.
Suitable for breaking down clods, final seed preparation of ground and levelling pugged up or packed down heavy pasture country, Stump Jumps are also ideal for use in the preparation stage of vegetable growing and weed control.
Each Stump Jump section is attached to the drawbar by four hitching points one ahead of each row of tines, to ensure true tracking and correct stump-jump action.
Sets complete with drawbars range from coverage of 1.72mm (5ft 8in) to 8.63m (28ft 4in).
Available as a Lift Type set utilising our Series 21 Three Point Linkage Hoist Frame for ease of transportation. Set includes Front Lift Drawbar, Harrow sections, Rear Lift Drawbar including Lift Clips and Hoist Frame.
100% Australian made and owned.
Specifications:
- Coverage 4.31m (14ft 2in).
- Weight 349kg
- Tine spacing 44mm (1 3/4in).
- Tine length 197mm (7 3/4in) approx.
- Centre to centre of Front Hooks 222mm (8 3/4in).
- 5 Ranks / 20 Tines.
Features:
- 4 Point Pull (4PP). Cut Tine ends, pipe spacers throughout
section.
- Manufactured from 32 x 10mm carbon steel.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 4.31M STUMP JUMP HARROW COMPLETE SET - 3PL HOIST LIFT TYPE (4 POINT PULL)

Series 39 Hydraulic folding wing frame with 5 section folding S08 Stump Jump Harrow. 4.3m coverage. Transport width: 2.9m.
Please note that 3 point linkage pins are not supplied.
Murray Series 39 Hydraulic Folding Harrow Frames provide a solution to the transportation of multiple Harrow sections.
Designed to fit Category I or II three-point linkage systems, Murray Series 39 Harrow Frames allow transport between paddocks and through smaller sized gates.
Each unit features a top class frame designed and backed by Murrays years of experience.
Simplicity and strength are combined in a compact frame utilising a rigid linkage-mounted centre section and hydraulic folded wings.
Murray Series 39 Harrow Frames suit Category C Harrows including Series 04 Diamond Harrow sections and Series 08 Stump Jump Harrow sections.
Series 39 Folding Harrow Frames are supplied complete with centre section, wing attachments and all rings and links to suit your harrow type and size.
Specifications:
- Anchor points to suit desired Harrow
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 4.3M HYDRAULIC FOLDING FRAME STUMP JUMP HARROW

Murray 1.93m, Series 04 Diamond Harrow 3PL hoist lift type system with Series 21 Hoist Frame.
Please note 2nd picture shows how harrows are attached to frame, but the harrows in that picture are not diamond harrows.
4029 - 2 sections - 1.93m.
Complete Set Comprises:
Front Lift Drawbar, Harrow sections, Rear Lift Drawbar and Series 21 3-Point Linkage Hoist Frame.
Suitable for open country and lighter loamy soils, Murray Diamond Harrows are an effective implement used for weed control and final seedbed preparation.
Specialising in shattering soil crusts allowing improved aeration and moisture penetration, it will give your crops every chance of reliable germination and subsequent vigour.
The Diamond frame design is constructed using flat bar material providing the Harrow with strength and rigidity. It features replaceable bolt-in 16mm square section High Carbon Steel tapered tines with a working depth between 50 to 80mm (2 to 3).
Murray Diamond Harrows are supplied in sets complete with drawbars, ranging from 2 sections 2.03m (68) to 10 sections 10.16m (334). Lift type sets using our 3 Point Linkage Hoist Frame (Series 21) are available, making transportation of your Harrows easy and convenient. The complete set is comprised of a Front Lift Drawbar, Harrow Sections, Rear Lift Drawbar and 3 Point Linkage Hoist Frame (Series 21).
Features:
- 2 Point Pull (2PP). Replaceable bolt-in 16mm square section High Carbon Steel tapered tines.
- Manufactured from flat bar material
Specifications:
- 30 kg (66lb).
- Coverage 0.97M (38").
- Tine Spacing 51mm (2").
- Tine Length 152mm (6") approx
- Centre to centre of Front Hooks 508mm (20").
- 5 Rank / 20 Tines.
- Tapered Tines with working depth between 50-80mm (2" - 3")
Model No. 4029 2 section set Rear Lift connectors supplied in lieu of Rear Lift Drawbar
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 1.93M 3PL HOIST LIFT DIAMOND HARROW SYSTEM 2 SECTIONS WITH SERIES 21 HOIST FRAME

Features:
90 HP single speed gearbox.
2050mm working width.
Side gear drive.
CE safety guards.
54 x C Blades.
Cat I or II three point linkage.
1 3/8in 6 spline PTO with slip clutch.
Specifications:
Connection Type: Linkage
Min Tractor PTO HP: 60-90 HP
Working Width: 2050mm
Working Depth: 100-200mm
Product Weight: 585kg
Total Width: 2300mm
Options:
Front Depth Wheels
Note: An additional surcharge applies for machinery assembly.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

BREVIGLIERI 2.05M B85 ROTARY HOE (MIN 60-90HP)

Features Include:
220HP two speed gearbox (1000 RPM).
Phased rotors.
Stone protection system.
Leveling bar standard.
Floating side shields.
4380mm working width.
100 300mm Working depth.
1 3/8in 6 spline PTO with slip clutch.
Phased Rotor Benefits:
Reduces the absorption of power and fuel consumption.
Eliminates vibrations.
Better soil crumbling.
MF220-450CR Specifications (with Cage Roller)
Connection Type: Linkage
Min Tractor PTO HP: 180-220 HP
No. of Blades: 36
Working Width (mm): 4380
Product Weight (kg): 1730
Total Width (mm): 4440
MF220-450PR Specifications (with optional Packer Roller):
Connection Type: Linkage
Min Tractor PTO HP: 180-220 HP
No. of Blades: 36
Working Width (mm): 4380
Product Weight (kg): 1960
Total Width (mm): 4440
Factory Options:
Wheel Track Eradicator
Superfast Blades
Note: An additional surcharge applies for machinery assembly.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

BREVIGLIERI MEKFARMER 220 POWER HARROWS 4.38M - BREVIGLIERI - MF220-450CR, MIN 180-220HP

The coil tines are 30mm square, and are used for primary and secondary cultivation.
They are ideal where deep penetration is required without bringing subsoil up to the surface. They are commonly used in market garden operations to penetrate beneath the normal level of cultivation.
The coil allows the tine to move, assisting penetration and reducing horsepower needed. Coil tines do not disturb the surface as much as the wider chisel plough tines. This is useful in operations as pasture renovation and plough or rotary hoe pan breaking.
The finer tine is also good for secondary cultivation where a heavy machine is needed for heavy soils. Overall width of the machine is 9 wider than the cut width ie: 5 tine is 5 9, 7 tine is 7' 9' and so on.
Features
The frame is 100 x 100 x 6mm, similar to the rigid chisel plough
Cat 1 & 2 Linkage
Extra tines can be fitted if required to reduce tine spacing
30mm square high resistance hardened double coil tines.
Available in 5, 7, 9 and 11 tine sizes with tines at 12 adjustable spacings
Horsepower requirements vary widely but 8-10 HP per tine is a rough guide
Excellent underframe trash clearance of 520mm
The wheel kit consists of a pair of 14 Holden wheels, height adjustable, fitted on the outside of the machine (increasing the overall width approx 450mm (18)
Options:
0200 Depth Wheels (Pair Holden)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS COIL TINE CHISEL PLOUGHS 9 TINES - 0206

Series 08 - 5.18m Stump Jump Harrow System with Standard 4 point pull drawbar - Complete Set.
Complete Set Comprises - Front Lift Drawbar, Harrow sections, Rear Lift Drawbar including Lift Clips and 4 Point Pull Drawbar.
8106 - 6 Section with bar 5.18m (17ft).
If your ground is uneven, roughly cleared or contains light stony areas then the flexible Murray series 08 Stump Jump Harrow is the secondary tillage implement to consider.
Ruggedly constructed using High Carbon Steel, the floating stump jump action is a time tested agricultural implement.
Suitable for breaking down clods, final seed preparation of ground and levelling pugged up or packed down heavy pasture country, Stump Jumps are also ideal for use in the preparation stage of vegetable growing and weed control.
Each Stump Jump section is attached to the drawbar by four hitching points one ahead of each row of tines, to ensure true tracking and correct stump-jump action.
Sets complete with drawbars range from coverage of 1.72mm (5ft 8in) to 8.63m (28ft 4in).
Available as a Lift Type set utilising our Series 21 Three Point Linkage Hoist Frame for ease of transportation. Set includes Front Lift Drawbar, Harrow sections, Rear Lift Drawbar including Lift Clips and Hoist Frame.
100% Australian made and owned.
Specifications:
- Coverage 5.18m (17ft)
- Weight 333kg
- Tine spacing 44mm (1 3/4in).
- Tine length 197mm (7 3/4in) approx.
- Centre to centre of Front Hooks 222mm (8 3/4in).
- 5 Ranks / 20 Tines.
Features:
- 4 Point Pull (4PP). Cut Tine ends, pipe spacers throughout
section.
- Manufactured from 32 x 10mm carbon steel.
* Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

MURRAY 5.18M STUMP JUMP HARROW WITH STD 4 POINT PULL DRAWBAR COMPLETE SET- SERIES 08

The Deep Tillage plough is designed for shattering compact ground with minimal disturbance to the sub soil. Ideal for ripping hard ground prior to cultivation and for aerating pastures, therefore increasing water absorption & improving the profile of the soil.
Can be used to renovate pastures or for bed renovation. Broad acre application and row cropping. High tensile cast shank assembly with 24 underframe clearance with 1 shear pin protection. Replaceable points and shin guards, also available with tungsten tips.
Optional crumbler rollers also available to help create a level surface and reduce crusting in the surface.
Optional coulters available to reduce surface disturbance in pasture (must be ordered with machine).
Specifications:
Heavy duty 100 x 100 x 9mm tine mounting frame.
High tensile cast shank assembly with 24in (610mm) underframe clearance with 1in shear pin protection. Replaceable points and shin guards also available with tungsten tips.
Breakout force approx. 4000 ft. / lbs.
Tine spacing set at 12in (300mm).
Approx 15HP required per tine.
Adjustable pair of Holden wheel for depth control available as an option.
Optional coulters available to reduce surface disturbance in pasture.
Available in 2, 3, 5, 7, 9 or 11 tine models with other sizes made on request. 2 and 3 tine models are fitted on a single row frame. Trailing units also available.
Optional crumbler rollers also available to help create a level surface and reduce crusting in the surface.
Options:
0327 14in Coulters (must be ordered with machine) priced per coulter unit.
0355 Optional Hydraulic Phasing Cylinders to replace ratchets.
0200 Depth Wheels (Pair Holden) optional normally mounted outside frame.
0352 5 Tine Crumbler (ratchet adjustment).
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS DEEP TILLAGE PLOUGHS 5 TINE - 0320, MIN 75HP

Find Tillage AND Seeding For Sale. Browse 975 Tillage AND Seeding listings from Farm Supplies Machinery & Equipment.

New & Used Tillage AND Seeding For Sale in Australia

Farm Supplies Machinery & Equipment

Sale Price

BREVIGLIERI 5M MEKFOLD350 POWER HARROW (180-350HP) WITH 450MM CAGE ROLLER

MURRAY SERIES 03 LEVELLING HARROW 3.25M, 3 RANK DEEP SECTIONS & STD DRAWBARS-HEAVY DUTY-COMPLETE SET

JOHN BERENDS MEDIUM DUTY OFFSET DISCS - 10 PLATE X 18 INCH DISCS - 0247, MIN 20HP

MURRAY SERIES 03 LEVELLING HARROW 3.70M, 4 RANK DEEP SECTIONS & STD DRAWBAR-LIGHT DUTY-COMPLETE SET

MURRAY 4.31M STUMP JUMP HARROW COMPLETE SET - 3PL HOIST LIFT TYPE (4 POINT PULL)

MURRAY 4.3M HYDRAULIC FOLDING FRAME STUMP JUMP HARROW

MURRAY 1.93M 3PL HOIST LIFT DIAMOND HARROW SYSTEM 2 SECTIONS WITH SERIES 21 HOIST FRAME

BREVIGLIERI 2.05M B85 ROTARY HOE (MIN 60-90HP)

BREVIGLIERI MEKFARMER 220 POWER HARROWS 4.38M - BREVIGLIERI - MF220-450CR, MIN 180-220HP

JOHN BERENDS COIL TINE CHISEL PLOUGHS 9 TINES - 0206

MURRAY 5.18M STUMP JUMP HARROW WITH STD 4 POINT PULL DRAWBAR COMPLETE SET- SERIES 08

JOHN BERENDS DEEP TILLAGE PLOUGHS 5 TINE - 0320, MIN 75HP

Farm Supplies Machinery & Equipment

Dealer Address
