Medium duty corrosion resistant hot dip galvanised frame. Breakaway device to protect the boom from obstructions.
Fully folding arms. Stainless steel spraylines. Non drip nozzles. Ideal for linkage or trailer type sprayers.
Nozzles fully shielded from damage and supplied with air induction nozzles
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 10M FIELD BOOM

Trailed 2,500 litre pasture sprayer with 132 L/min pump and 3 section electric valve controls.
Ideal for spraying pasture.
Note: infield image shows 2,500L Pasture sprayer with optional 15m Devil boom, mudguards and hydraulic lift.
Specifications:
Market: Dairy & Livestock
Tank Size (L): 2500
Connection Type: Trailed
Pump Size (L/min): 132
Height / Width / Length (mm): 2500 / 2400 / 4400
Product Weight (kg): 800
Application: Pasture spraying.
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms & corrosion resistant cast anodised aluminium body. BP130/20: 132 L/min. capacity 2000kPa pressure.
Tank: Polytuff impact resistant polyethylene construction with calibrated sight line & non-spill screw down lid.
Chassis: Galvanised RHS steel construction with adjustable drawbar and operator platform.
Axle: 2m track axle with 14.9 x 24" lug tyre (450mm clearance)
Bottom Fill: Bottom fill with 2" camlock coupling.
Filter: Lid strainer, suction line filter.
Controls: 3 section Silvamatic electric controls with pressure compensating direct acting valves. In cab on/off & pressure adjustment with pressure gauge.
Flush Tank: 100L
Fresh Water: Hand wash tap fitted to flush tank.
Options:
- BP200/20 pump, 195 L/min. capacity, 2000kPa pressure
- Hydraulic drive centrifugal pump
- 5 section Silvamatic electric controls (in lieu)
- Bravo 180S automatic rate controller (in lieu)
- Bravo 180S automatic rate controller to suit hydraulic control (in lieu)
- Bravo 400S automatic rate controller with GPS guidance (in lieu)
- IBX 100 ISOBUS controller (in lieu - requires compatible in-cab console)
- Mudguards (to suit 14.9 x 24" wheels)
- Adjustable track axle (minimum 1500mm) with 11.2 x 44" Lug tyres (2500L only)
- Simplicity tandem axle with 15" Lug tyres
- 2m track axle with 31 x 13.5" Turf tyre
- 10m HD Devil boom with self levelling
- 12m HD Devil boom with self levelling
- 14m HD Devil boom with self levelling*
- 15m HD Devil boom with self levelling*
- Hydraulic lift, galvanised single hydraulic system - 10, 12, 14 and 15 HD Devil booms
- Airbag suspension & hydraulic lift (to suit HD Devil boom)
- Parallelogram/airbag suspension (to suit HD Devil boom) - no hydraulic lift
- 57L Paddock Foam Marker
- Venturi suction probe
- Silmix Chemical Hopper
- 3 Section electric over hydraulic control
- 5 Section electric over hydraulic control
* When fitting 14 & 15m HD devil boom 032-40DLAB or 032-40DLAB-3 must be added.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 2,500L TRAILED PASTURE SPRAYER

Trailed air assist Compact Supaflo 1000 litre sprayer with a 93 L/min diaphragm pump, 700mm fan and electric valve controls.
Ideal for narrow vineyards, orchards and trellis tomatoes.
Specifications:
Market: Horticulture. Viticulture
Tank Size (L): 1,000
Connection Type: Trailed
Min PTO HP: 40
Pump Size (L/min): 93
Height / Width / Length (mm): 1500 / 1100 / 2860
Product Weight (kg): 300
Application: Vineyards and Orchards
Features:
Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with brass heads and manifold. IDS960:93L/min. capacity, 5000kPa pressure. IDS1401:135L/min. capacity, 5000kPa pressure.
Fan Size: 700mm axial flow type, 8 bladed fan (or 800mm with 10 blades) with curved nylon reinforced blades and protective mesh cover.
Nozzles: Flip-over type for dilute/concentrate spraying. Ceramic HCI nozzles. 12 double sided nozzles (6 per side) twist on/off (7 per side on 800mm fan).
Gearbox: Single-speed with neutral position, oil-bath type.
Controls: 40 Bar electric section valves, master valve, electric pressure regulator and in-cab controls.
Main Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, flip-top easy open lid, 40mm drain valve.
Flush Tank: 80L flush tank with top fill. Used to flush pump, filter, spray lines and nozzles.
Hand Wash Tank: 15L fresh water hand wash tank.
Frame: Galvanised steel with jockey wheel and adjustable drawbar.
Agitation: Pump bypass plus venturi agitator.
Pressure Gauge: 100mm, 0-60 bar glycerine filled gauge with bar increments.
Filtration: Lid strainer and suction line filter.
Wheel Equipment: 50mm axle with 15" tubeless tyres on painted rims (speed rating 30 km/h).
PTO Driveshaft: Quality driveshaft with quick release pins and safety cover.
HP Required: Minimum 40 PTO HP.
Options:
- IDS1401 pump, 135L/min. capacity, 5000kPa pressure,
- 800mm fan (in lieu)
- Two-sided deflector (700mm fan)
- Two- sided conveyor (700 + 800mm fan)
- Bottom air deflectors
- Wide axle (1650mm)
- Bravo 180S automatic rate controller
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 1,000L COMPACT SUPAFLO TRAILED SPRAYER

Trailed over row 4,000 litre G2E Turbo Scram3 row tri-wrap sprayer with sprayheads, 4 x 320mm fans, 350 L/min Hydraulic drive stainless steel pump, automatic spray rate controller, self contained hydraulic drive system and tandem suspension axle.
Ideal for vineyards.
Note: infield image shows 2000L 2 row Turbo Scram, product image shows G2 model.
Specifications:
Market: Viticulture.
Tank Size (L): 4,000
Connection Type: Trailed
Min PTO HP: 80
Pump Size (L/min): 350
Height / Width / Length (mm): 3300 / 1950 (less head), 2800 (folded) / 5230
Product Weight (kg): 1,820 (dry)
Application: Vineyards
Features:
Head: Two row spraying head: 28 venturi air shear adjustable nozzles with individual metering and on/off taps. Three row spraying head: 42 venturi air shear adjustable nozzles with individual metering and on/off taps. Left & right arms are independent hydraulic folding with adjustable width & centre frame. Boom frame is galvanised.
Pump: Stainless steel, hydraulic drive centrifugal pump, 350 L/min. Stainless steel shaft and Viton/ceramic seal. Driven by tractor remotes.
Fan Size: 320 mm turbine fan, one per air tube, 3600 rpm. Power consumed 29 kw / 38HP
Hydraulic Control: Hitch mounted hydraulic power pack with; 40L oil reservoir with cartridge particulate filter, motors fitted with case drain, hydraulic distribution block incorporates anticavitation and pressure relief valves, 12V oil cooler
Nozzles: Air shear.
Controls: Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.
Frame: Galvanised steel chassis, linkage hitch fitted with hydraulic power pack
Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and hand wash tank. (205L flush tank on 3000L)
Agitation: Venturi agitator.
Filtration: Lid strainer and large capacity suction filter.
Wheel Equipment: Tandem suspension axle with 10 x 15" tyres (3000L) or 11.5 x 15.3" tyres (4000L).
PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.
HP Required: Minimum 65 PTO HP (2 row), Minimum 80 PTO HP (3 row).
Options:
- Bravo 180S spray rate controller with hydraulic controls (in lieu) (J99-180)
- IBX 100 ISOBUS controller (in lieu - requires compatible in-cab console) (J99-181)
- Hydraulic row width/height adjustment
- Hydraulic pump driven through power pack (D99-185)
- 100L flush tank (to suit 4000L) (J99-112)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 4,000L (3 ROW) G2E TRAILED TURBO SCRAM TRI-WRAP - MIN 80PTO HP

Linkage turbomiser 600 litre sprayer with a 140 L/min centrifugal pump and a 500mm fan. Ideal for vineyards, orchards and greenhouses.
Note: spray head not included
Specifications:
Market: Horticulture. Viticulture.
Tank Size (L): 600
Connection Type: Linkage
Min PTO hp: 65
Pump Size (L/min): 140
Height / Width / Length (mm): 1150 / 1450 / 1100
Product Weight (kg): 220 (dry)
Application: Vineyards, orchards, greenhouse
Features:
Pump: CD32 centrifugal pump, 140L/min. constructed from toughened nylon. Stainless steel shaft & viton/ceramic seal
Fan Size: P50E: 500mm dia. turbine fan, 4000 rpm. Power consumed 40 kw / 55HP.
Nozzles: Air shear.
Gearbox: Multiplication type through multi-grip, multi-vee belt and pulley, over-run free wheeling hub and oil bath fan housing.
Controls: Two sided electric on/off control with control box mounted in cabin. Rotary plate distribution regulators with 15 settings and manual pressure adjustment.
Frame: Galvanised RHS steel construction, cat II linkage.
Tank: 400L Polytuff impact resistant polyethylene construction, calibrated sight line, non spill lids, hydro chemical mixer in larger basket, lids with basket strainers, seperate in-built 18L fresh water hand wash tank.
Agitation: Bypass and pneumatic
Pressure Gauge: Protected 100mm glycerine gauge fitted at front of sprayer
Filtration: Lid strainer and suction line strainer
PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.
HP Required: Minimum 65 PTO HP
Options:
- Vineyard head - 4 heads (4 x 4) (GT55-11)
- Super Cannon head (GT55-1)
- Manual turntable for Super Cannon (GT55-4)
- Hydraulic turntable for Super Cannon (GT55-9)
- Bravo 180S automatic rate controller (GT-24)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 600L P50E LINKAGE TURBOMISER - MIN 65PTO HP (SPRAY HEAD NOT INCLUDED)

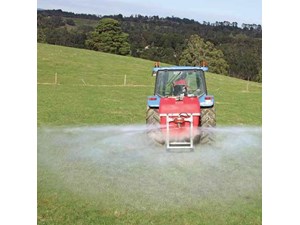

Linkage 600 litre Super sprayer with 58 L/min pump, without boom. Ideal for spraying pasture and ag lifestyle use.
Specifications:
Market: Dairy & Livestock
Tank Size (L): 600
Connection Type: Linkage
Pump Size (L/min): 58
Height / Width / Length (mm): 1300 / 1150 / 1025
Product Weight (kg): 105
Application: Pasture spraying.
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP60/20: 58L/min. capacity 2000kPa pressure. BP130/20: 132 L/min. capacity 2000kPa pressure.
Controls: 3 outlet manual control valve with pressure regulator.
Tank: Low profile, 400 and 600L Polytuff impact resistant polyethylene construction, external
sightline with floating ball and non-spill offset screw-down lid with single breather. 15L freshwater tank with screw-down lid and on/off tap. 4L toolbox with polyethylene lid.
Frame: Galvanised steel with adjustable cat I & II hitch on 400L and cat II hitch on 600L. Vertical boom channel for positioning the boom at the optimum spray height.
Agitation: Bypass agitation.
Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer, suction line strainer with stop valve fitted at the side of the tank to enable ease of filter maintenance.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Options:
- 6m Field boom
- 8m Field boom
- 10m Field boom
- 12m Fieldmaster boom with suspension (600L only)
- 6m Hydraulic fold boom
- 8m Devil boom with hydraulic fold
- 8 Jet vine boom
- 10 Jet vine boom
- Olive boom (Used with BP130/20 pump only)
- Undervine and mid row boom
- Boomless nozzle mounting kit (brass nozzle not included)
- 70L flush tank kit to flush the filter, spraylines and nozzles (600L only)
- 14L foam marker (single side)
- 16L foam marker (double side)
- 57L Paddock marker foam marker
- Economy hose reel, 20m hose (12mm ID) with Jetpro spray gun
- Reel tuff 12V remote reel with Turbo 400 spray gun (600L only) (inc. APS41 pump upgrade)
- Electric on/off control 3 section
- Electric control 3 section with in cab pressure adjustment
- Bravo 180S automatic rate controller
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 600L SUPER SERIES LINKAGE SPRAYER - BP60/20 PUMP, NO BOOM

Specifications:
Market: Viticulture.
Tank Size = 2,000 L
Connection Type: Trailed
Min PTO hp: 60
Pump Size : 500+ LPM
Application: Vineyards
Dimensions - Length measured with linkage hitch:
Length: 4,680 mm
Width Less Head: 1,800 mm
Width Folded: 2,490 mm
Height: 3,330 mm
Weight 990 kg (Dry)
Includes spray heads, independent 320mm hydraulic fans, hydraulic drive stainless steel pump, automatic spray rate controller, self contained hydraulic drive system and tandem suspension axle. Ideal for vineyards.
Model Specifications
- Head Two row spraying head: 28 venturi air shear adjustable nozzles with individual metering and on/off taps. Left and right arms are independent hydraulic folding with adjustable width and centre frame. Boom frame is galvanised.
- Pump Multi-stage hydraulic drive pump, multiple impellers made with highly resistant engineering plastic for excellent chemical compatibility. 500+L/min. Driven by tractor remotes.
- Fan Size 320mm turbine fan, one per air tube, 3600rpm. Power consumed 29kw/38HP.
- Hydraulic Control Hitch mounted hydraulic power pack with: 40L oil reservoir with cartridge particulate filter, motors fitted with case drain, hydraulic distribution block incorporates anti-cavitation and pressure relief valves, 12V oil cooler.
- Nozzles Air shear.
- Controls Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.
- Tank Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and 40L fresh water hand wash tank.
- Frame Galvanised steel chassis, linkage hitch fitted with hydraulic power pack.
- Agitation Venturi agitator.
- Filtration Lid strainer and large capacity suction filter.
- Wheel Equipment Tandem suspension with 10x15inch wheels and tyres.
- PTO Driveshaft Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.
- HP Required Minimum 60 PTO HP
Factory Options
- Hydraulic pump driven through power pack.
- Hydraulic Height Adjustment phased or independent.
- Hydraulic Row width adjustment phased or independent.
- Bravo 180S spray rate controller with hydraulic controls (in lieu) up to 5 sections.
- Bravo 180S spray rate controller with hydraulic controls (in lieu) 7 sections.
- Bravo 400S automatic rate controller with GPS guidance (in lieu) 7 spray sections.
- Bravo 400S automatic rate controller with hydraulic controls, GPS guidance (in lieu) 7 spray sections + 7 hydraulic sections.
- IBX 100 ISOBUS controller (in lieu requires compatible in-cab console).
- Delta 80 Universal Terminal to suit ISOBUS control.
- Quick turning hitch.
- Electric braked tandem suspension axle via trailer plug in lieu of standard axle.
- Hydraulic braked tandem suspension axle in lieu requires compatible tractor remotes.
- 100L Flush Tank
- Road Kit Brake and indicator lights with folding Oversize sign.
- Tail Light Kit Brake and indicator lights via trailer plug.
NOTE: Not all options will fit all models. Extra charges may apply to fitment of some options.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available
Contact Farm Supplies today for sale or more information
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 2,000L (2 ROW) TRAILED SCRAM CROSS - MIN 60PTO HP

Linkage 300 litre Econopak sprayer with 58 L/min pump, reel, hose & gun and 6m Econopak boom. Ideal for spraying pasture.
Specifications:
Tank Size (L): 300
Connection Type: Linkage
Pump Size (L/min): 58
Height / Width / Length (mm): 1070 / 2067 / 1105
Product Weight (kg): 116
Application: Pasture & Ag Lifestyle
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and cast anodised aluminium body. BP60/20: 58 L/min. capacity 2000kPa pressure.
Boom: Econopak boom: 6m with stainless steel spray lines, non-drip nozzle holders, fully galvanised frame and spring loaded safety break back/forward.
Nozzles: Air induction nozzles with strainer in bayonet fit non-drip nozzle holders at 50cm spacings.
Controls: 3 outlet manual control valve with pressure regulator. Mounted forward for easy access.
Tank: Polytuff impact resistant polyethylene construction, moulded litre calibrations and non-spill screw-down lid with single breather.
Frame: Fully galvanised steel, cat I & II linkage.
Agitation: Bypass agitation.
Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer, suction line strainer and nozzle strainers.
Hose Reel: Fitted with rear-mounted Eco hosereel, 30m of 10mm hose and Spotjet spraygun with adjustable spray nozzle.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Options:
- 14L Foam marker (single side)
- 16L foam marker (double side)
All prices include GST. Please allow extra for freight.
Delivery available Australia wide!
Contact Farm Supplies today or sales enquires or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 300L (6M BOOM) ECONOPAK LINKAGE SPRAYER

Linkage 600 litre Casotti sprayer with 71 L/min pump and Casotti kit. Ideal for pasture spraying.
Specifications:
Market: Ag Lifestyle. Dairy & Livestock.
Tank Size (L): 600
Connection Type: Linkage
Pump Size (L/min): 71
Height / Width / Length (mm): 1300 / 1150 / 1025
Product Weight (kg): 105
Application: Pasture spraying
Features:
Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body. APS71: 71L/min. capacity 5000kPa pressure.
Casotti Motor: An electric 12 volt motor is connected to the tractor battery which powers the oscillating movement of the nozzle arms. The arms swing 180º. This movement is symmetrical to the tractors passage.
Controls: 2 outlet brass manual control valve with pressure regulator. Mounted forward for easy access.
Tank: Low profile 600/800/1100L Polytuff impact resistant polyethylene construction, external sightline with floating ball and non-spill offset screw-down lid with single breather. 15L freshwater tank with screw-down lid and on/off tap. 4L toolbox with polythylene lid. 50mm Camlock bottom fill (1100L only).
Frame: Fully galvanised steel, cat II linkage.
Agitation: Bypass agitation.
Pressure Gauge: 0-60 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer, suction line strainer with stop valve fitted at side of tank to enable ease of filter maintenance.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 600L CASOTTI LINKAGE SPRAYER

Linkage 400L Pasturepak sprayer with 58 L/min pump, reel, hose & gun and 6m Field boom. Ideal for pasture spraying.
Specifications:
Market: Dairy & Livestock
Tank Size (L): 400
Connection Type: Linkage
Pump Size (L/min): 58
Height / Width / Length (mm): 1200 / 2067 / 1050
Product Weight (kg): 150
Application: Pasture spraying.
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP60/20: 58 L/min. capacity 2000kPa pressure. BP75/20: 71 L/min. capacity 2000kPa pressure.
Boom: Field boom with stainless steel spray lines, non-drip nozzle holders, fully galvanised frame, nozzle protection and spring loaded safety break back/forward.
Nozzles: Air induction nozzles with strainer in bayonet fit non-drip nozzle holders at 50cm spacings.
Controls: 3 outlet manual control valve with pressure regulator. Mounted forward for easy access.
Tank: Low profile, 400/600/800L polytuff impact resistant polyethylene construction, external sightline with floating ball and non-spill offset screw-down lid with single breather. 15L fresh water tank with screw down lid and on/off tap. 4L toolbox with polyethylene lid.
Frame: Fully galvanised steel, cat I & II linkage on 400L, cat II linkage on 600L and 800L.
Agitation: Bypass agitation.
Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer, suction line strainer and nozzle strainers.
Hose Reel: Fitted with rear-mounted Eco hosereel, 30m of 10mm hose and Spotjet spraygun with adjustable spray nozzle.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Options:
- 14L foam marker (single side)
- 16L foam marker (double side)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 400L (6M BOOM) PASTUREPAK LINKAGE SPRAYER

Tray mount 400 litre Sled turf sprayer with 58 L/min pump with 5.5HP Honda engine, electric controls, economy reel, 20m hose and gun (no boom).
Specifications:
Market: Turf
Tank Size (L): 400
Connection Type: Tray mount
Pump Size (L/min): 58
Application: Turf spraying.
Tray Size: Suited to 1.2m x 1.4m tray
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body. BP60/20: 58 L/min capacity, 2000kPa pressure, direct driven by 5.5HP Honda with 6.1 reduction gear box.
Controls: 3 section electric valves. Control box with pressure adjustment and on/off switches mounted on arm close to operator.
Tank: 400L Polytuff impact resistant polyethylene construction with calibratrated external sightline, non-spill screwdown lid, internal baffle and sump.
Frame: Fully galvanised RHS steel sled frame for fitment into tray body. Removable stand legs when not in use.
Agitation: Bypass action and venturi jet.
Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer and suction line strainer.
Hosereel: Economy hose reel with 20m x 12mm ag hose and Triam 49 spray gun.
Options:
- 6m Field boom
- 6m Hydraulic fold boom
- 16L Paddock foam marker (double sided)
- Bravo 180S automatic rate controller (includes BP125/20 pump upgrade)
- BP125/20 pump, 121 L/min capacity, 2000kPa driven by 5.5HP Honda
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 400L TRAY DE-MOUNTABLE SLED SPRAYER

Trailed over row 2 row 4,000 litre turbowrap turbomiser sprayer with a hydraulic drive 350 L/min stainless steel pump, 500mm turbine fan, sprayheads, automatic spray rate controller, wide angle shaft and tandem suspension axle.
Ideal for vineyards.
Note: pictured is 3,000L Tri-Wrap.
Specifications:
Market: Viticulture.
Tank Size (L): 4,000
Connection Type: Trailed
Min PTO hp: 75
Pump Size (L/min): 350
Application: Vineyards
Features:
Head: Two row spraying head: 28 venturi air shear nozzles with individual metering and on/off taps. Three row spraying head: 42 venturi air shear adjustable nozzles with individual metering and on/off taps. Left & right arms have independent hydraulic folding with adjustable width & centre frame. Boom frame is fully galvanised.
Pump: Stainless steel, hydraulic drive centrifugal pump, 350 L/min. Stainless steel shaft and Viton/ceramic seal.
Fan Size: 500mm twin impeller turbine fan. Power cons. 48 kw/64HP.
Nozzles: Air shear.
Gearbox: 2-speed with neutral position, oil-bath type
Controls: Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.
Main Tank: Polytuff impact resistant polyethylene construction, calibrated sightline, flip top lid, 50mm camlock bottom fill, and hand wash tank. 205L flush tank on 3,000L.
Frame: Galvanised steel chassis, adjustable drawbar with jockey wheel.
Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and 40L fresh water hand wash tank.
Chem Induction: Venturi suction probe.
Agitation: Venturi agitator.
Pressure Gauge: Glycerine filled gauge located on the valve bank.
Filtration: Suction line filter and pressure filter
Wheel Equipment: Tandem suspension axle with 10 x 15" tyres (3000L) or 11.5 x 15.3" tyres (4000L).
PTO Driveshaft: Quality Bondioli & Pavesi constant velocity (wide angle) driveshaft with quick release pins and safety cover.
HP Required: Minimum 75 PTO HP (2 row), Minimum 90 PTO HP (3 row).
Options:
- Quick turning hitch (D99-170)
- Hydraulic row width/height adjustment
- Bravo 180S spray rate controller with hydraulic controls (in lieu) (J99-180)
- Road kit (D99-151)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 4,000L (2 ROW) G2E TRAILED TURBOWRAP - MIN 75PTO HP

Find Sprayers For Sale. Browse 693 Sprayers listings from Farm Supplies Machinery & Equipment.

New & Used Sprayers For Sale in Australia

Farm Supplies Machinery & Equipment

Sale Price

SILVAN 10M FIELD BOOM

SILVAN 2,500L TRAILED PASTURE SPRAYER

SILVAN 1,000L COMPACT SUPAFLO TRAILED SPRAYER

SILVAN 4,000L (3 ROW) G2E TRAILED TURBO SCRAM TRI-WRAP - MIN 80PTO HP

SILVAN 600L P50E LINKAGE TURBOMISER - MIN 65PTO HP (SPRAY HEAD NOT INCLUDED)

SILVAN 600L SUPER SERIES LINKAGE SPRAYER - BP60/20 PUMP, NO BOOM

SILVAN 2,000L (2 ROW) TRAILED SCRAM CROSS - MIN 60PTO HP

SILVAN 300L (6M BOOM) ECONOPAK LINKAGE SPRAYER

SILVAN 600L CASOTTI LINKAGE SPRAYER

SILVAN 400L (6M BOOM) PASTUREPAK LINKAGE SPRAYER

SILVAN 400L TRAY DE-MOUNTABLE SLED SPRAYER

SILVAN 4,000L (2 ROW) G2E TRAILED TURBOWRAP - MIN 75PTO HP

Farm Supplies Machinery & Equipment

Dealer Address
