Suitable for raking, turning and spreading hay crops, silage and grain crop stubble.
Construction: Simple robust construction requiring minimal maintenance.
Drive Line: Ground drive.
Control: Single set hydraulics via tractor remote.
Attachment: Cat. II clevis to tractor drawbar.
Windrow Width: 3 6ft / 0.9 1.8m
Specifications:
Type: Trailed V with Dual Hydraulic Kicker Wheels Standard
Working Width (m): 9.4
Product Weight (kg): 2400
Number of rake wheels (L/R-Splitters): 8/8 +2
Tynes Per Wheel: 40
Rake wheel diameter: 1400mm
Transport width: 2.5m
Number of Ground Wheels/Size: 6 x 205-75/15
Note: Hayrakes Delivered Unassembled
* Maximum working width and speeds depend greatly upon product raked, volume and general conditions.

All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SITREX HYDRAULIC TRAILED MAGNUM V HAYRAKES - 8L/8R+2 RAKE WHEELS - SITREX - HR-MK16

The TTS sprays chemicals where they are needed - up high - both to ensure the chemicals are reaching the relevant parts of the trees but also to minimise potential damage to any buildings or infrastructure which may surround the paddock.
Specifications:
Market: Horticulture
Tank Size (L): 4000
Connection Type: Trailed
Min HP: 100
Pump Size (L/min): 161
Height / Width / Length (mm): 3100 / 1880 / 5550
Product Weight (kg): 1320 (dry)
Application: Orchards
Features:
Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast aluminium body with brass heads & manifolds. IDS1701:161L/min. capacity, 5000kPa pressure.
Fan Size: Dual 450mm diameter twin turbine fans with galvanised frame and spray head. Hydraulic angle adjustment and manual top wing adjustment.
Nozzles: Flip over type with ceramic hollow cone nozzles. 11 nozzles (6 in cannon head, 5 in side of cannon) with twist on/off per cannon.
Gearbox: Oil-bath type, 2-speed with neutral position
Controls: 40 Bar electric section valves with master valve, electric pressure regulator and in cab controls.
Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, non-spill lid. 15L (4000L) or 40L (3500L) fresh water tank. 50mm camlock bottom fill.
Frame: Galvanised steel with jockey wheel (3500L) or stand (4000L) & adjustable drawbar.
Agitation: Pump bypass plus venturi agitator.
Pressure gauge: 100mm, 0-60 bar glycerine filled gauge with bar increments.
Filtration: Lid strainer, suction line strainer and nozzle filters.
Wheel Equipment: Glideflex suspension axle fitted with 11.00 x 16" (3500L) or 13.0/65 x 18" (4000L) wheels (speed rating 30 km/h)
PTO Driveshaft: Quality Bondioli & Pavesi constant velocity driveshaft with quick release pins & safety cover.
HP Required: Min 100HP
Options:
- Bravo 180S automatic rate controller (D99-143)
- Flotation tyres - 558-400/60 - 22.5 (in lieu of standard) (D99-79)
- IDS2600 pump,249L/min. capacity, 5000kPa pressure (D99-149)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 4,000L TTS TRAILED SPRAYER - MIN 100HP

Heavy duty hydraulic folding mulcher suitable for tractors from 100-180 hp. Universal 10mm Y-shaped flails ideal for straw, grass, beet leaves and set aside areas.
Specifications:
Actual Width: 593cm
Working Width: 564cm
Required HP: 160-220cm
Weight: 3300kg
No of Blades: 128 Y shaped flails
Features:
180hp rated gearbox (Scorpio/P)
220 hp rated gearbox (Super Scorpio/P)
Integrated over-run clutch
Floating from linkage (cat 2)
Fixed front counter blades
Replaceable upper counter blades
Double skinned chassis
Side skids
4 x 4 belt side transmission
Opening rear doors
1000 rpm PTO
Front protection flaps
10mm Y-shaped flails with straight flail
Rear lights for road transport
Parking support
Options in lieu of standard:
Spreading fins (each) (400 = 12, 450 = 14, 500 = 16, 560 = 20, 640 = 24)
Rear wheel kit
Rear roller (Scorpio/P400 - P500)
Rear roller (Super Scorpio/P560)
Rear roller (Super Scorpio/P620)
Hydraulic door opening
Hammer flails in lieu "Y" flails (Scorpio)
Hammer flails in lieu "Y" flails (Super Scorpio)
Disc kit
Models:
SCORPIO/P 400 404cm Working width 100-180hp 2296kg 88 Blades
SCORPIO/P 450 454cm Working width 120-180hp 2410kg 96 Blades
SCORPIO/P 500 504cm Working width 140-180hp 2524kg 112 Blades
SUPER SCORPIO/P 564cm Working width 160-220hp 3300kg 128 Blades
SUPER SCORPIO/P 644cm Working width 180-220hp 3771kg 144 Blades
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

CELLI 5.64M (160-220HP) SUPER SCORPIO/P 560 GENERAL PURPOSE MULCHER

Heavy duty trailing tandem disc plough designed for heavy cultivation in hard conditions. The angle is hydraulically adjusted and has a transport width of under 2.4m.
Features:
Available in 28, 32, 36, 40, 44 and 48 plate models at 9 inch disc spacing's.
Fitted with 24 inch x 6mm or 26 inch x 6mm scalloped discs. All discs are European Bellota Boron discs which carry a lifetime warranty against manufacturing failure.
All models are fitted with hydraulic gang adjustment which allows the gangs to be folded parallel with the main frame, to be under 2.4m overall width.
Gangs can also be opened right up to no angle at all when only a fine till of the topsoil is required.
Solid cast of spools throughout the gangs provide ballast weight in the gangs, where it counts, rather than in the main frame. Each is individually machined to suit the disc for extra strength.
Flanged disc bearings designed specifically for severe tillage applications. The bearings are encapsulated in two case hardened zinc plated stampings. Two nitrile O rings are fitted to exclude contaminants and provide a grease seal to ensure lubricant goes directly into the bearing.
Buster tine removes centre ridge to create a level finish.
Integrated furrow fillers are standard.
Fitted with four Land Cruiser wheels on a 5 tonne axle. Hydraulic wheel lift is standard.
40mm square high tensile gang bolts.
Fully adjustable drawbar height with parallel lift for better transportation.
Wheelkit locking arms reduce stress on the hydraulics when transporting.
Australian made Ryco hoses are used with a minimum burst pressure of 20,400 psi.
Australian made Eaton cylinders.
Prong type scrapers are standard formed scrapers on request.
Parking jack is standard.
Specifications:
Approx Weight: 4130kg
No. of Bearings: 24
No. of axles: 12
Cutting width: 5.71m (18ft 9inch)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS TH100 HD TRAILING TANDEM DISCS - 48 PLATE X 26 INCH DISCS - 0965

The double rotor rakes model Tracer 780 has been designed for 2 single swaths or a single side swath. Requires min 70hp.
Trailed tractor hitch.
The working width is hydraulically variable. The rotors are oscillating for better ground adaptation. They are all fitted with oil bath rotors, guaranteeing reliability to the machine.
Thanks to the perfect adaptation to the ground and the soft harvesting work, they preserve the quality of the product.
This rotary rake in the right configuration allows to form a double windrow while always maintaining a working width of 780 cm.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available
Contact Farm Supplies today for sale or more information
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

ENOROSSI 7.8M DOUBLE ROTARY RAKE

Features:
- 150 x 100 x 8mm chassis
- 200 x 120 x 8mm gang beams
- 28 (710mm) scalloped discs on this CVH-71 model (8mm thick)
- Disc scrapers
- 10 (260mm) disc spacing
- Eight double taper roller bearings with a 5 year warranty
- Reinforced bearing protectors
- Manual gang angle adjustment from 8 - 24 degrees
- Manual fore/aft adjustment with spring
- 40mm square silicon manganese steel disc axles
- 400 / 60 x 15.5 flotation tyres
- Swivel hitch
Super heavy offset discs for demanding agricultural and cropping applications. High quality French manufactured with a 5 year bearing warranty.
Working Width = 4,000 mm
Overall Width = 4,250 mm
Required HP Range = 200 - 250 hp
Weight = 3,100 kg
Number of Discs = 32
Options available:
- Hydraulic fore/aft adjustment
- Hydraulic drawbar adjustment
- Hydraulic gang angle adjustment
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

GB 4M, 32 DISCS (200-250HP) HEAVY DUTY OFFSET DISCS

The Premium Plus Trailing Shoe is fully galvanized and features a unique 6-point linkage for optimal ground flotation. Its unique boom geometry allows it to easily follow ground contours.
Hydraulic folding rams protect the hoses during transport, while the vertical folding design minimizes transport width.
A central distributor chops and evenly distributes slurry.
Additionally, Premium Plus Applicators support the use of an umbilical arm.
Features:
- Fully galvanized
- Vertical folding
- Soil engaging shoe with down pressure and float
- Chassis mounted
- Unique design provides significant soil engagement with enhanced contour following
- Distributor with 5 feed pipe, auto reverse and manual change over
- 40mm hosing
- Ballast weights
- Facility for splash plate attachment
- Rear lights
- Includes tanker mounted diverter and in cab switch box controls
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

ABBEY 10.7M TRAILING SPREADER (SLURRY)

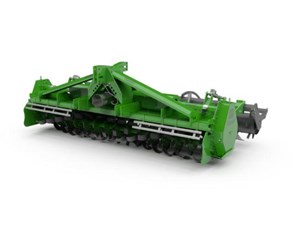

Heavy duty double drive fixed rotary hoe suitable for tractors up to 280 hp.
Specifications:
Actual Width: 463cm
Working Width: 441cm
Required HP: 200-280hp
Weight: 2120kg
No of Blades: 102
Features:
Rated up to 280 hp
Unique central split gearbox system for high horsepower loading and efficient torque distribution
Two speed side gearboxes with available gear speeds of: 208,230,260,284,310,340,375,410
Swinging lower links
Gear side drive
Side drive shafts with automatic safety clutches (CAM)
80 x 8mm 'L' blades
6 blades per flange
250mm working depth
Side skids or rear rollers with hydraulic adjustment
Adjustable , spring loaded tailgates
Options in Lieu of Standard:
Rotor Options
Double flange rotor (c/w 10mm blades)
Spike rotor spike (30x30x195)
Anti-pan rotor (10mm straight blade)
Roller Options
Cage roller (500mm diameter) with hydraulic adjustment
Packer roller (555mm diameter) with hydraulic adjustment
Models:
TIGER 280DD-400 391cm Working Width 180-280hp 2000kg 90 L blades
TIGER 280DD-450 441cm Working Width 200-280hp 2120kg 102 L blades
TIGER 280DD-500 491cm Working Width 220-280hp 2240kg 114 L blades
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

CELLI 4.41M (200-280 HP) TIGER ROTARY HOE

Heavy duty cracker ripper / subsoiler with shearbolt breakout for breaking up pans and compacted soils. Suitable for tractors from 200 to 350 hp.
Specifications:
Working Width: 360cm
Required HP: 220-350hp
Weight: 2475kg
No of Blades: 7
Features:
16mm shearbolt breakout
Double spike roller
Hydraulic depth control
650mm working depth
70 x 18mm point
Foot stands
Category three linkage
Fin clod busters
Options in Lieu of Standard:
Pivoting side plates
Models:
ALCE-P300/7 310cm Working Width 200-350HP 2350kg 7 Points
ALCE-P350/7 360cm Working Width 220-350HP 2475kg 7 Points
ALCE-P350/9 360cm Working Width 240-350HP 2595kg 9 Points
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

CELLI 3.6M (220-350HP) ALCE-P RIPPER / SUBSOILER

Trailed 3,000 litre herbicide sprayer with 132 L/min pump (with under-vine and mid row booms). Designed for spraying herbicide in vineyards.
Specifications:
Market: Viticulture
Tank Size (L): 3000
Connection Type: Trailed
Pump Size (L/min): 132
Height / Width / Length (mm): 3300 / 1800 / 4600
Product Weight (kg): 990
Application: Herbicide sprayer for vineyards
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms & corrosion resistant, cast anodised aluminium body. BP130/20: 132 L/min. capacity 2000kPa pressure.
Controls: Silvamatic 3 section electric valve on/off with in-cab electric pressure adjustment from control box.
Tank: Polytuff impact resistant polyethylene construction, calibrated sight line & flip-top easy open lid.
Frame: Galvanised RHS steel construction, jockey wheel & adjustable tow hitch.
Agitation: Bypass action.
Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer & suction line strainer.
Wheels: SINGLE ROW: 50mm Duraflex axle with 50mm drop and sliding adjustment. 15" tyres on galvanised rims (max. speed rating 30 km/h). 3 ROW: Tandem suspension axle with 10 x 15" wheels.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Options:
- Undervine and mid row boom (to suit JB2000-125)
- Bravo 180S automatic spray rate controller
- Hydraulic drive centrifugal pump
- Hydraulic row width and height adjustment
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 3,000L TRAILED VINEYARD HERBICIDE SPRAYER (3 ROW)

Features:
- 150 x 100 x 8mm chassis
- 200 x 120 x 8mm gang beams
- 28 (710mm) scalloped discs on this CVH-71 model (8mm thick)
- Disc scrapers
- 10 (260mm) disc spacing
- Eight double taper roller bearings with a 5 year warranty
- Reinforced bearing protectors
- Manual gang angle adjustment from 8 - 24 degrees
- Manual fore/aft adjustment with spring
- 40mm square silicon manganese steel disc axles
- 400 / 60 x 15.5 flotation tyres
- Swivel hitch
Super heavy offset discs for demanding agricultural and cropping applications. High quality French manufactured with a 5 year bearing warranty.
Working Width = 3,500 mm
Overall Width = 3,750 mm
Required HP Range = 180 - 240 hp
Weight = 2,930 kg
Number of Discs = 28
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available
Contact Farm Supplies today for sale or more information
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

GB 3.5M, 28 DISCS (180-240HP) HEAVY DUTY OFFSET DISCS

Tiger 250F-355 (180-250hp).
Super heavy duty high clearance rotary hoe suitable for tractors up to 250 hp. Available with three different rotor options-hoe, spike or anti-pan. Spike and anti-pan rotors are supplied with faster rotor speeds.
Specifications:
Actual Width: 382cm
Working Width: 360cm
Required HP: 180-250hp
Weight: 1420kg
No of Blades: 84
Features:
Rated up to 250 hp
Three speed gearbox
1000rpm
Oil cooler
Swinging lower links
Gear side drive
80 x 10mm "L" blades
6 blades per flange
Welded double flanges
16mm Blade bolts
250mm working depth
Side skids
Two piece adjustable, spring loaded frangor tailgates
Foot stand
Cam clutch
Options in Lieu Standard:
Rotor Options
Spike rotor spike (30x30x170)
Anti-pan rotor (straight blade)
Roller Options
Cage roller (440mm diameter)
Packer roller (470mm diameter)
Models:
TIGER 250F-305 310cm Working width 155-250hp 1300kg 72 Blades
TIGER 250F-355 360cm Working width 180-250hp 1420kg 84 Blades
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

CELLI 3.6M (180-250HP) TIGER ROTARY HOE

Find Farm Machinery For Sale from $50,000 to $100,000. Browse 141 listings from Farm Supplies Machinery & Equipment.

Farm Machinery For Sale from $50,000 to $100,000

Farm Supplies Machinery & Equipment

Sale Price

SITREX HYDRAULIC TRAILED MAGNUM V HAYRAKES - 8L/8R+2 RAKE WHEELS - SITREX - HR-MK16

SILVAN 4,000L TTS TRAILED SPRAYER - MIN 100HP

CELLI 5.64M (160-220HP) SUPER SCORPIO/P 560 GENERAL PURPOSE MULCHER

JOHN BERENDS TH100 HD TRAILING TANDEM DISCS - 48 PLATE X 26 INCH DISCS - 0965

ENOROSSI 7.8M DOUBLE ROTARY RAKE

GB 4M, 32 DISCS (200-250HP) HEAVY DUTY OFFSET DISCS

ABBEY 10.7M TRAILING SPREADER (SLURRY)

CELLI 4.41M (200-280 HP) TIGER ROTARY HOE

CELLI 3.6M (220-350HP) ALCE-P RIPPER / SUBSOILER

SILVAN 3,000L TRAILED VINEYARD HERBICIDE SPRAYER (3 ROW)

GB 3.5M, 28 DISCS (180-240HP) HEAVY DUTY OFFSET DISCS

CELLI 3.6M (180-250HP) TIGER ROTARY HOE

Farm Supplies Machinery & Equipment

Dealer Address
