U Bolt.
Specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX U BOLT - M16 X 120MM, 235MM LENGTH

The Grow-Master aerator can turn your tired, life-less soil into productive, high yielding pastures. This versatile implement will aerate, cultivate and renovate your soils.
The specially designed tines shatter the compact ground, increasing the absorption of water and air which in turn encourages root growth. The tines have a slight twist in them which cracks the ground in a sideways and downwards motion. This allows water, air and nutrients to move readily through the soil profile making them more available for plant roots.
The grow-master is fitted with double rollers which are angled in opposite directions. This reduces sideway drag on the tractor when ground engaging. Each roller can be adjusted for various degrees of angle from 2.5 to a maximum of 10 (four positions).
The maximum offset position is the most aggressive and is most often used for cultivation and for over-sowing new pasture seed. Ballast weight added to the frame will ensure that the tines are buried down to the hub.
Horsepower requirement is quite low with a minimum of only 35Hp required for the 2m unit. A tow hook is mounted on the back for dragging pasture harrows. 2 bolt gang adjustable to alter rotor angle.
Large floor plate deck for carrying ballast (weight) 100x100x6mm RHS Perimeter frame. Heavy Duty 2 triple sealed bearings. Double rollers allow machine to be angle for more aggressive cultivation.
Easy adjust mounting stands. Solid 75mm rotor. Roller is fitted with the same 2 heavy duty bearings used on the Berends Rotary Drain digger for over 30 years. The patented Shatter tines are 8 long and have a unique angle providing a much superior finish to conventional straight tines.
Product Specifications
Aerate, Renovate and Maintain 00 Neutral Setting
The axle is straight
This is used when the soil structure is very friable.
The tines will usually penetrate their full depth.
This setting is usually used to maintain the soil structure, possibly once a year in a maintenance program.
Aerate and Renovate 2.5 Setting
The axle has 2.5 degrees of angle
This is ideal for your first use of the aervator.
If your ground is hard the tines may not penetrate very far, maybe only 25-50 mm.
Dont worry, this is normal. Aeration is not a quick fix.
Aerate and Renovate 50 Setting
The axle has 5 degrees of angle
Use this setting for subsequent uses of the aervator.
With each pass you should change the direction of travel.
Across then diagonally is ideal.
Cultivate and Renovate 7.5 Setting
The axle has 7.5 degrees of angle
On this setting the aervator starts to get aggressive.
You may require additional weight or ballast to acheive maximum depth.
This setting is best used after previous passes and will fracture any compaction layer.
If used on extremely hard ground the tines will probably not penetrate very far.
Cultivate 100 Setting
The axle has 10 degrees of angle
On this setting the aervator is very aggressive.
Again use weight.
This setting is best used after previous passes and will fracture any compaction layer.
If used on hard ground the tines will probably not penetrate very far.
Optional
Trailing Wheelkit includes wheels, drawbar and hydraulic lift (0190)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS GROWMASTER 3600 AERATORS - DOUBLE ROTOR - 0186

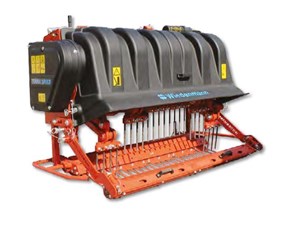

The Wiedenmann Terra Slit 160 is a powerful and versatile deep-aeration machine, purpose built for professional turf care on golf courses, sports fields, and other high-performance turf areas.
Designed to break up soil compaction and improve root development, it ensures healthy, resilient playing surfaces year-round.
Overall Width = 1.96m
Working Width = 1.3m
Weight = 260kg
Min HP = 30hp
Linkage = Cat I or II
Features:
- Deep Aeration Performance: Capable of penetrating to depths of up to 20 cm, the Terra Slit effectively eliminates soil compaction, encouraging deeper root growth and improved absorption of water and nutrients.
- Knife and Tine Versatility: Depending on soil conditions, the machine can be equipped with low- or high-lift knives for tailored aeration. For fine slitting up to 15 cm, specialised slitting knives are available, while hollow tines allow for dethatching and aerating up to 8 cm.
- Customisable Row Spacing: The distance between tine rows can be set at 7.5cm or 15 cm, offering flexibility to meet varying turf care requirements.
- High Output Efficiency: With hollow tines fitted, the Terra Slit produces up to 80 holes per square metre in a single pass, making it an ideal solution for quick and effective dethatching or surface aeration.
- Weight Adjustment Options: The integrated ballast frame can be loaded with additional weights for highly compacted soils. An optional hydraulic weight transfer system (suitable for 3-point Cat. I) is available for enhanced performance.
- Tractor Compatibility: The Terra Slit mounts easily to the rear 3-point linkage (Cat. I/II) and is also available in a trailed version for added flexibility.
Optional Extra:
- Low-heave knives (200 mm): 76 required at 75 mm spacing or 40 required at 150 mm spacing
- High-heave knives (200 mm): 76 required at 75 mm spacing or 40 required at 150 mm spacing
- Fine slitting knives (200 mm): 76 required at 75 mm spacing or 40 required at 150 mm spacing
- Disc set for mounting coring tines or slitting knives: 1 set for 150 mm spacing or 2 sets for 75 mm spacing
- Coring tines Ø25 mm (160 pcs.): approx. 80 holes/m², 1 set for 150 mm spacing or 2 sets for 75 mm spacing
- Slitting knives 130 mm (80 pcs.): 1 set for 150 mm spacing or 2 sets for 75 mm spacing
- Triangular fine slitting knives 80 mm, sharpened (80 pcs.): 1 set for 150 mm spacing or 2 sets for 75 mm spacing
- Bogey Wheel Set
- Ballast weight, approx. 48 kg (maximum 3 units)
- Rear Roller
- Overseeder
- Spring Tines for Overseeder
- Mounting Parts for Overseeder
- Hydraulic Weight Transfer System Unpressurized Return Line Required
- Additional Heaving Rotor Includes Flanged Bearings
- Additional Year Warranty Extension (24 months total)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available
Contact Farm Supplies today for sale or more information
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

WIEDENMANN 1.96M WIDE 3PL DEEP AERATOR (30HP+) OVALS & FIELDS

Pear Linch Pin (pack of 5).
Suits tractor models shown in images.
Specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX PEAR LINCH PIN (5 PCS. AGRIPAK) (9.5MM PIN DIA, 44.5MM TOTAL LENGTH)

Burders under axle and over axle blade operates similarly with the exception of the over axle blade having more ground clearance.
The blades are suited for heavy duty work and there are several blade options to choose from.
Specifications:
Model: 740
Blade Width: 2.7m
HP Range: 60-100
Options:
Hyd Angle (push off to either side)
Hyd Tilt (camber on road)
Hyd Forward Tilt
Wings
Depth Skids
Mesh Guards
Flip Down Root Rack
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

BURDER 2.7M (9FT) 740 MODEL STRAIGHT OVER AXLE BLADE

CBM Lower Link Plate.
Specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

CBM LOWER LINK PLATE (23MM HOLE DIA)

Counterweights are important in maintaining the stability of the tractor when using front end loaders. With a front end loader fitted onto a tractor, the centre of gravity shifts forward. The centre of gravity is further amplified when the loader lifts a load thus putting pressure on the tyres, axle and rims.
To eliminate such risks, a 3 point linkage should be used. The counterweight is hooked up with a 3 point linkage set behind the rear axle. This is the best method to improve stability and it reduces the amount of pressure placed on the tyres, axle and rims.
Specifications:
Capacity: 1,500kg
Fill: Steel
Shape: T
Category: Cat 2
LxWxH: 1200 x 520 x 750
Features:
- Robust design
- Australian steel
- Steel casing and concrete filled
- Quality 2 pack paint
Safe & User Friendly:
- Engineered for maximum safety and efficiency
- Simple to use
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

BURDER 1,500KG STEEL FILLED COUNTER WEIGHT (3PL)

Red Handle Hitch Pin with Chain & Linch Pin.
Specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX RED HANDLE HITCH PIN WITH CHAIN & LINCH PIN (1/2" PIN DIA, 92MM WORKING LENGTH)

Suitable for CAB.
The Burder loader series are built to be tough, agile and performs well even under extensive usage.
The Burder loader series comes with a multitude of features such as return to level, soft ride and quick change. These features helps to promote safety, efficiency and productivity in the work environment. As the industry evolves, consumers require more complex features in the loaders in order to enhance productivity in the work environment.
Burder invests resources in R&D to ensure consumer demands are met as well as constantly creating designs that exceed expectations.
Specifications (refer to images to see A, B, C, D & E):
Front Tyre Max: 18.4x30
Volume: 0.98m³
Tractor HP: 150-200
Bucket Width: 2.4m
Rated Capacity (std Bkt): 1500kg
A. Lift Height to Pin: 4500mm
B. Dump Height: 3170mm
C. Dig Depth: 150mm
D. Crowd Angle: 50°
E. Dump Angle: 70°
FEL Weight Incl Std Bucket: 1250kg
Features:
Mechanical Self Level
2 Bank Valve and Joystick Control (cable for CAB Tractors)
Choice of Euro or Burder Hitch at no Extra Cost
Deluxe Quick Detach Loader
Heavy Duty Gravel Bucket
Full Mesh Grille Guard
Vesconite Wear Bushes at all Pivot Points
Adjustable Level Indicator
Plated Greasable Pins
2 Pack Epoxy Paint
Choice of Colour for Loader Arms
24 Month Limited Warranty
* Burder 8000, 9000 and 10000 Series have Soft Ride as Standard
* Burder 9050 and above have 3rd Function as Standard

Options:
2 circuit remote (CAB)
Double Rear Diverter (2 circuit)
Electric front remote (1 circuit)
Hydraulic quick coupler (4 port)
Hydraulic Dampeners Manual Shut off
3rd bank & Front Remotes 6, 8, & 9000 ROPS
3rd bank & Front Remotes 3000 ROPS
Detent per Spool
Front Remotes to plug into Tractor Remotes
Multi Doc-Front Remotes Male & Female
Multi Doc-Front Remotes Male Only
6 Port Hydraulic Quick Coupler
Hydraulic Dampeners Electric Upgrade
Eco-pro Joystick Upgrade
Hydraulic Quick Change (Upgrade Optional) - Requires 3rd function to operate (Additional cost)
4th Function
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

BURDER 2.4M BURDER FRONT END LOADER (150-200 HP)

Suitable for ROPS and CAB (optional).
Titan products like Burder products are made with the same principles in mind. The products are built to be tough, efficient and suits even the most budget conscious.
Specifications (refer to images to see A, B, C, D & E):
Front Tyre Max: 14.9x24
Volume: 0.55m³
Tractor HP: 70-100
Bucket Width: 2.1m
Rated Capacity (std Bkt): 1200kg
A. Lift Height to Pin: 3720mm
B. Dump Height: 2920mm
C. Dig Depth: 150mm
D. Crowd Angle Ground Level: 44° Max Crowd Angle: 44°
E. Dump Angle: 55°
FEL Weight Incl Std Bucket: 900kg
Features:
Mechanical Self Level
2 Bank Valve and Joystick Control (cable for CAB Tractors)
Adjustable Level Indicator
Quick Detach Loader
Gravel Bucket
Rams Horns Bump guard (Option for Full Mesh Grill Guard in Lieu of Rams Horns)
Choice of Titan 2 Pin Euro, or Titan "Burder" Quick Change at no Extra Cost
Plated Greasable Pins
Australian Made
2 Pack Epoxy Paint
Tractor Colour or Charcoal Paint Scheme
12 Month Limited Warranty
Options:
2 circuit remote (ROPS and CAB)
Double Rear Diverter (2 circuit)
Electric front remote (1 circuit)
Hydraulic quick coupler (4 port dump line single QRC)
Hydraulic Dampeners Manual Shut Off
Full Mesh Grill Guard in Lieu of Rams Horns
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

BURDER 2.1M TITAN FRONT END LOADER (70-100HP - 4 CYL ONLY)

CBM Levelling Box Assembly.
Specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

CBM LEVELLING BOX ASSEMBLY (590MM MIN ADJUST)

To suit telehandler. Stick Rake with wings for FEL (Front End Loader) -3m.
The stick rake is suitable for use in clearing sticks, branches and scrub from an unused area or your paddock.
Specifications:
- Height (mm): 1025
- Width (mm): 3000
Optional extras:
- Mesh in-fill
- Mesh top guard
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

BURDER TELEHANDLER 3M FEL STICK RAKE WITH WINGS

Find Tractor Attachments For Sale. Browse 1830 Tractor Attachments listings from Farm Supplies Machinery & Equipment.

New & Used Tractor Attachments For Sale in Australia

Farm Supplies Machinery & Equipment

Sale Price

SPAREX U BOLT - M16 X 120MM, 235MM LENGTH

JOHN BERENDS GROWMASTER 3600 AERATORS - DOUBLE ROTOR - 0186

WIEDENMANN 1.96M WIDE 3PL DEEP AERATOR (30HP+) OVALS & FIELDS

SPAREX PEAR LINCH PIN (5 PCS. AGRIPAK) (9.5MM PIN DIA, 44.5MM TOTAL LENGTH)

BURDER 2.7M (9FT) 740 MODEL STRAIGHT OVER AXLE BLADE

CBM LOWER LINK PLATE (23MM HOLE DIA)

BURDER 1,500KG STEEL FILLED COUNTER WEIGHT (3PL)

SPAREX RED HANDLE HITCH PIN WITH CHAIN & LINCH PIN (1/2" PIN DIA, 92MM WORKING LENGTH)

BURDER 2.4M BURDER FRONT END LOADER (150-200 HP)

BURDER 2.1M TITAN FRONT END LOADER (70-100HP - 4 CYL ONLY)

CBM LEVELLING BOX ASSEMBLY (590MM MIN ADJUST)

BURDER TELEHANDLER 3M FEL STICK RAKE WITH WINGS

Farm Supplies Machinery & Equipment

Dealer Address
