Linkage Drawbar (Cat. 3) No. holes: 7.
Specifications:
Category: 3
Linch pin diameter (mm): 16
Hole diameter (mm): 32
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX LINKAGE DRAWBAR (CAT 3) (7 HOLES)

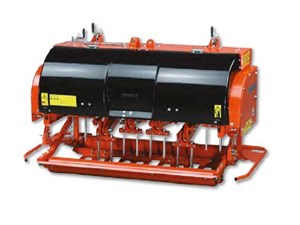

The Wiedenmann Terra Slit 160 is a powerful and versatile deep-aeration machine, purpose built for professional turf care on golf courses, sports fields, and other high-performance turf areas.
Designed to break up soil compaction and improve root development, it ensures healthy, resilient playing surfaces year-round.
Overall Width = 1.96m
Working Width = 1.3m
Weight = 260kg
Min HP = 30hp
Linkage = Cat I or II
Features:
- Deep Aeration Performance: Capable of penetrating to depths of up to 20 cm, the Terra Slit effectively eliminates soil compaction, encouraging deeper root growth and improved absorption of water and nutrients.
- Knife and Tine Versatility: Depending on soil conditions, the machine can be equipped with low- or high-lift knives for tailored aeration. For fine slitting up to 15 cm, specialised slitting knives are available, while hollow tines allow for dethatching and aerating up to 8 cm.
- Customisable Row Spacing: The distance between tine rows can be set at 7.5cm or 15 cm, offering flexibility to meet varying turf care requirements.
- High Output Efficiency: With hollow tines fitted, the Terra Slit produces up to 80 holes per square metre in a single pass, making it an ideal solution for quick and effective dethatching or surface aeration.
- Weight Adjustment Options: The integrated ballast frame can be loaded with additional weights for highly compacted soils. An optional hydraulic weight transfer system (suitable for 3-point Cat. I) is available for enhanced performance.
- Tractor Compatibility: The Terra Slit mounts easily to the rear 3-point linkage (Cat. I/II) and is also available in a trailed version for added flexibility.
Optional Extra:
- Low-heave knives (200 mm): 76 required at 75 mm spacing or 40 required at 150 mm spacing
- High-heave knives (200 mm): 76 required at 75 mm spacing or 40 required at 150 mm spacing
- Fine slitting knives (200 mm): 76 required at 75 mm spacing or 40 required at 150 mm spacing
- Disc set for mounting coring tines or slitting knives: 1 set for 150 mm spacing or 2 sets for 75 mm spacing
- Coring tines Ø25 mm (160 pcs.): approx. 80 holes/m², 1 set for 150 mm spacing or 2 sets for 75 mm spacing
- Slitting knives 130 mm (80 pcs.): 1 set for 150 mm spacing or 2 sets for 75 mm spacing
- Triangular fine slitting knives 80 mm, sharpened (80 pcs.): 1 set for 150 mm spacing or 2 sets for 75 mm spacing
- Bogey Wheel Set
- Ballast weight, approx. 48 kg (maximum 3 units)
- Rear Roller
- Overseeder
- Spring Tines for Overseeder
- Mounting Parts for Overseeder
- Hydraulic Weight Transfer System Unpressurized Return Line Required
- Additional Heaving Rotor Includes Flanged Bearings
- Additional Year Warranty Extension (24 months total)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available
Contact Farm Supplies today for sale or more information
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

WIEDENMANN 1.96M WIDE 3PL DEEP AERATOR (30HP+) OVALS & FIELDS

Stick Rake for FEL (Front End Loader) 9000 Series - 3.00m. (Mesh is not included in this price).
The stick rake is suitable for use in clearing sticks, branches and scrub from an unused area or your paddock.
180mm tine spacing gfd.
Specifications:
- Width (m): 3.00m
- Height (mm): 850
- HP Range: 150+
Optional extras:
- wings
- mesh in-fill
- mesh top
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

BURDER FEL STICK RAKE 9000 SERIES 3.00M - 150+ HP RANGE

Specifications:
Connection Type: Linkage
Min PTO HP: 40
PTO: 40 - 75HP: Series 4.
Product Weight (kg): 95
Gearbox Ratio: 23.18:1 clockwise rotation.
Clutch: 2 x 150mm friction plates (40/50HP), 2 x 200mm friction plates (75HP).
Main Frame: 75 x 75 x 4mm RHS (158PHD30), 100 x 100 x 5mm RHS.
Mounting: Cat. I TPL with Cat. II bushes supplied.
Effective Digging Depth: 1m.
Options:
DCA6 - 6"auger
DCA8 - 8" auger
DCA10 - 10" auger
DCA12 - 12" auger
Ideally suited for a variety of farming purposes including digging post holes and tree planting on lifestyle, medium acreage, broadacre, viticulture and horticultural farms.
Note: Augers are NOT SUPPLIED with the Post Hole Digger.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 40HP POST HOLE DIGGER (AUGERS NOT INCL)

CBM Lower Link Lift Arm.
Specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

CBM LOWER LINK LIFT ARM (CAT 3/3) (985MM LENGTH, RH FITTING)

The Grow-Master aerator can turn your tired, life-less soil into productive, high yielding pastures. This versatile implement will aerate, cultivate and renovate your soils.
The specially designed tines shatter the compact ground, increasing the absorption of water and air which in turn encourages root growth. The tines have a slight twist in them which cracks the ground in a sideways and downwards motion. This allows water, air and nutrients to move readily through the soil profile making them more available for plant roots.
The grow-master is fitted with double rollers which are angled in opposite directions. This reduces sideway drag on the tractor when ground engaging. Each roller can be adjusted for various degrees of angle from 2.5 to a maximum of 10 (four positions).
The maximum offset position is the most aggressive and is most often used for cultivation and for over-sowing new pasture seed. Ballast weight added to the frame will ensure that the tines are buried down to the hub.
Horsepower requirement is quite low with a minimum of only 35Hp required for the 2m unit. A tow hook is mounted on the back for dragging pasture harrows. 2 bolt gang adjustable to alter rotor angle.
Large floor plate deck for carrying ballast (weight) 100x100x6mm RHS Perimeter frame. Heavy Duty 2 triple sealed bearings. Double rollers allow machine to be angle for more aggressive cultivation.
Easy adjust mounting stands. Solid 75mm rotor. Roller is fitted with the same 2 heavy duty bearings used on the Berends Rotary Drain digger for over 30 years. The patented Shatter tines are 8 long and have a unique angle providing a much superior finish to conventional straight tines.
Product Specifications
Aerate, Renovate and Maintain 00 Neutral Setting
The axle is straight
This is used when the soil structure is very friable.
The tines will usually penetrate their full depth.
This setting is usually used to maintain the soil structure, possibly once a year in a maintenance program.
Aerate and Renovate 2.5 Setting
The axle has 2.5 degrees of angle
This is ideal for your first use of the aervator.
If your ground is hard the tines may not penetrate very far, maybe only 25-50 mm.
Dont worry, this is normal. Aeration is not a quick fix.
Aerate and Renovate 50 Setting
The axle has 5 degrees of angle
Use this setting for subsequent uses of the aervator.
With each pass you should change the direction of travel.
Across then diagonally is ideal.
Cultivate and Renovate 7.5 Setting
The axle has 7.5 degrees of angle
On this setting the aervator starts to get aggressive.
You may require additional weight or ballast to acheive maximum depth.
This setting is best used after previous passes and will fracture any compaction layer.
If used on extremely hard ground the tines will probably not penetrate very far.
Cultivate 100 Setting
The axle has 10 degrees of angle
On this setting the aervator is very aggressive.
Again use weight.
This setting is best used after previous passes and will fracture any compaction layer.
If used on hard ground the tines will probably not penetrate very far.
Optional
Trailing Wheelkit includes wheels, drawbar and hydraulic lift (0190)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS GROWMASTER 2400 AERATORS - DOUBLE ROTOR - 0176

Fitted with high quality European gearboxes and drive shafts. All shafts are fitted with a torque limiting clutch (tractor end) which is more effective than a slip clutch
Features:
Digs to a maximum 4ft (1200mm) depth if ground conditions permit.
Standard model is suitable for augers from 4in to 12in diameter.
All models are fitted with jib hook and transport chain as standard. Heavy duty model is also fitted with auger control handle for easy positioning.
Specifications:
PTO Shaft: Series 3/L2 torque limiting clutch
Gearbox: 40HP
Main frame: 89x89x5mm RHS
Tractor Hp Required: 20-50HP
Nett Weight less auger: 95kg
Options:
0279 4'auger
0265 6' auger
0267 8' auger
0269 10' auger
0271 12' auger
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

JOHN BERENDS POST HOLE DIGGERS STANDARD - 0259

The Wiedenmann SUPER 500 is a versatile, high performance turf maintenance machine designed for use on sports fields, golf courses, public parks, and recreational areas. Its multifunctional capabilities
- sweeping, flail mowing, verticutting, and debris collection - make it an indispensable tool for maintaining pristine turf conditions.
Key Features:
- Consistent Ground Following: The float-mounted cleaning head adapts excellently to ground unevenness, ensuring consistent performance across varied terrains.
- High-Lift Dumping: The hydraulic high-lift dumping mechanism enables debris to be emptied at heights up to 2.1 metres, facilitating easy transfer into standard containers.
- Tool-Free Conversion: Operators can easily switch between wind paddles, brushes, flail blades, and verticutting knives without the need for tools, minimising downtime and enhancing productivity.
- Large Capacity: The 2.5 m³ hopper allows for extended operation periods, reducing the frequency of unloading.
- Multi-Purpose Head: Suitable for verticutting, flail-type mowing, and debris collection.
Standard Build Inclusions:
- 1230026 Floating Axle with 4 Tyres (18x8.50) without Brakes
- 1231330 Low Hitch with Rotating Head with PTO Above
Overall Width = 2m
Working Width = 1.6m
Weight = 1,000kg
Min HP = 35hp
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available
Contact Farm Supplies today for sale or more information
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

WIEDENMANN 2M WIDE - 35HP+ MULTI TURF MACHINE (SWEEPING, MOWING, COLLECTING)

CBM Lower Link Hook Repair Kit.
Specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

CBM LOWER LINK HOOK REPAIR KIT (CAT 4)

Red Handle Hitch Pin with Chain & Linch Pin.
Specifications shown in images.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SPAREX RED HANDLE HITCH PIN WITH CHAIN & LINCH PIN (3/4" PIN DIA, 165.1MM WORKING LENGTH)

Burders under axle and over axle blade operates similarly with the exception of the over axle blade having more ground clearance.
The blades are suited for heavy duty work and there are several blade options to choose from.
Specifications:
Model: 760
Blade Width: 3m
HP Range: 100-150
Options:
Hyd Angle (push off to either side)
Hyd Tilt (camber on road)
Hyd Forward Tilt
Wings
Depth Skids
Mesh Guards
Flip Down Root Rack
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

BURDER 3M (10FT) 760 MODEL STRAIGHT UNDER AXLE BLADE

Suitable for CAB.
The Burder loader series are built to be tough, agile and performs well even under extensive usage.
The Burder loader series comes with a multitude of features such as return to level, soft ride and quick change. These features helps to promote safety, efficiency and productivity in the work environment. As the industry evolves, consumers require more complex features in the loaders in order to enhance productivity in the work environment.
Burder invests resources in R&D to ensure consumer demands are met as well as constantly creating designs that exceed expectations.
Specifications (refer to images to see A, B, C, D & E):
Front Tyre Max:16.9x28
Volume: 0.85m³
Tractor HP: 100-150
Bucket Width: 2.1m
Rated Capacity (std Bkt): 1500kg
A. Lift Height to Pin: 4250mm
B. Dump Height: 2950mm
C. Dig Depth: 150mm
D. Crowd Angle: 50°
E. Dump Angle: 70°
FEL Weight Incl Std Bucket: 1100kg
Features:
Mechanical Self Level
2 Bank Valve and Joystick Control (cable for CAB Tractors)
Choice of Euro or Burder Hitch at no Extra Cost
Deluxe Quick Detach Loader
Heavy Duty Gravel Bucket
Full Mesh Grille Guard
Vesconite Wear Bushes at all Pivot Points
Adjustable Level Indicator
Plated Greasable Pins
2 Pack Epoxy Paint
Choice of Colour for Loader Arms
24 Month Limited Warranty
* Burder 8000, 9000 and 10000 Series have Soft Ride as Standard
* Burder 9050 and above have 3rd Function as Standard

Options:
2 circuit remote (CAB)
Double Rear Divertor (2 circuit)
Electric front remote (1 circuit)
Hydraulic quick coupler (4 port)
Hydraulic Dampeners Manual Shut off
3rd bank & Front Remotes 6, 8, & 9000 ROPS
3rd bank & Front Remotes 3000 ROPS
Detent per Spool
Front Remotes to plug into Tractor Remotes
Multi Doc-Front Remotes Male & Female
Multi Doc-Front Remotes Male Only
6 Port Hydraulic Quick Coupler
Hydraulic Dampeners Electric Upgrade
Eco-pro Joystick Upgrade
Hydraulic Quick Change (Upgrade Optional) - Requires 3rd function to operate (Additional cost)
4th Function
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

BURDER 2.1M BURDER FRONT END LOADER (100-150HP)

Find Tractors For Sale. Browse 1848 Tractors listings from Farm Supplies Machinery & Equipment.

New & Used Tractors For Sale in Australia

Farm Supplies Machinery & Equipment

Sale Price

SPAREX LINKAGE DRAWBAR (CAT 3) (7 HOLES)

WIEDENMANN 1.96M WIDE 3PL DEEP AERATOR (30HP+) OVALS & FIELDS

BURDER FEL STICK RAKE 9000 SERIES 3.00M - 150+ HP RANGE

SILVAN 40HP POST HOLE DIGGER (AUGERS NOT INCL)

CBM LOWER LINK LIFT ARM (CAT 3/3) (985MM LENGTH, RH FITTING)

JOHN BERENDS GROWMASTER 2400 AERATORS - DOUBLE ROTOR - 0176

JOHN BERENDS POST HOLE DIGGERS STANDARD - 0259

WIEDENMANN 2M WIDE - 35HP+ MULTI TURF MACHINE (SWEEPING, MOWING, COLLECTING)

CBM LOWER LINK HOOK REPAIR KIT (CAT 4)

SPAREX RED HANDLE HITCH PIN WITH CHAIN & LINCH PIN (3/4" PIN DIA, 165.1MM WORKING LENGTH)

BURDER 3M (10FT) 760 MODEL STRAIGHT UNDER AXLE BLADE

BURDER 2.1M BURDER FRONT END LOADER (100-150HP)

Farm Supplies Machinery & Equipment

Dealer Address
