Specifications:
Market: Viticulture.
Tank Size = 4,000 L
Connection Type: Trailed
Rows = 3
Min PTO hp: 80
Pump Size : 500+ LPM
Application: Vineyards
Dimensions - Length measured with linkage hitch:
Length: 5,340 mm
Width Less Head: 1,935 mm
Width Folded: 2,490 mm
Height: 3,160 mm
Weight 1,820 kg (Dry)
Includes spray heads, independent 320mm hydraulic fans, hydraulic drive stainless steel pump, automatic spray rate controller, self contained hydraulic drive system and tandem suspension axle. Ideal for vineyards.
Model Specifications
- Head Two row spraying head: 28 venturi air shear adjustable nozzles with individual metering and on/off taps. Left and right arms are independent hydraulic folding with adjustable width and centre frame. Boom frame is galvanised.
- Pump Multi-stage hydraulic drive pump, multiple impellers made with highly resistant engineering plastic for excellent chemical compatibility. 500+L/min. Driven by tractor remotes.
- Fan Size 320mm turbine fan, one per air tube, 3600rpm. Power consumed 29kw/38HP.
- Hydraulic Control Hitch mounted hydraulic power pack with: 40L oil reservoir with cartridge particulate filter, motors fitted with case drain, hydraulic distribution block incorporates anti-cavitation and pressure relief valves, 12V oil cooler.
- Nozzles Air shear.
- Controls Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.
- Tank Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and 40L fresh water hand wash tank.
- Frame Galvanised steel chassis, linkage hitch fitted with hydraulic power pack.
- Agitation Venturi agitator.
- Filtration Lid strainer and large capacity suction filter.
- Wheel Equipment Tandem suspension with 10x15inch wheels and tyres.
- PTO Driveshaft Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.
- HP Required Minimum 60 PTO HP
Factory Options
- Hydraulic pump driven through power pack.
- Hydraulic Height Adjustment phased or independent.
- Hydraulic Row width adjustment phased or independent.
- Bravo 180S spray rate controller with hydraulic controls (in lieu) up to 5 sections.
- Bravo 180S spray rate controller with hydraulic controls (in lieu) 7 sections.
- Bravo 400S automatic rate controller with GPS guidance (in lieu) 7 spray sections.
- Bravo 400S automatic rate controller with hydraulic controls, GPS guidance (in lieu) 7 spray sections + 7 hydraulic sections.
- IBX 100 ISOBUS controller (in lieu requires compatible in-cab console).
- Delta 80 Universal Terminal to suit ISOBUS control.
- Quick turning hitch.
- Electric braked tandem suspension axle via trailer plug in lieu of standard axle.
- Hydraulic braked tandem suspension axle in lieu requires compatible tractor remotes.
- 100L Flush Tank
- Road Kit Brake and indicator lights with folding Oversize sign.
- Tail Light Kit Brake and indicator lights via trailer plug.
NOTE: Not all options will fit all models. Extra charges may apply to fitment of some options.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available
Contact Farm Supplies today for sale or more information
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 4,000L (3 ROW) TRAILED SCRAM CROSS - MIN 60PTO HP

Trailed 3,000 litre herbicide sprayer with 132 L/min pump (with under-vine and mid row booms). Designed for spraying herbicide in vineyards.
Specifications:
Market: Viticulture
Tank Size (L): 3000
Connection Type: Trailed
Pump Size (L/min): 132
Height / Width / Length (mm): 3300 / 1800 / 4600
Product Weight (kg): 990
Application: Herbicide sprayer for vineyards
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms & corrosion resistant, cast anodised aluminium body. BP130/20: 132 L/min. capacity 2000kPa pressure.
Controls: Silvamatic 3 section electric valve on/off with in-cab electric pressure adjustment from control box.
Tank: Polytuff impact resistant polyethylene construction, calibrated sight line & flip-top easy open lid.
Frame: Galvanised RHS steel construction, jockey wheel & adjustable tow hitch.
Agitation: Bypass action.
Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer & suction line strainer.
Wheels: SINGLE ROW: 50mm Duraflex axle with 50mm drop and sliding adjustment. 15" tyres on galvanised rims (max. speed rating 30 km/h). 3 ROW: Tandem suspension axle with 10 x 15" wheels.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Options:
- Undervine and mid row boom (to suit JB2000-125)
- Bravo 180S automatic spray rate controller
- Hydraulic drive centrifugal pump
- Hydraulic row width and height adjustment
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 3,000L TRAILED VINEYARD HERBICIDE SPRAYER (3 ROW)

Specifications:
Market: Viticulture.
Tank Size (L): 1,500
Connection Type: Trailed
Min PTO hp: 60
Pump Size (L/min): 500+
Height / Width / Length (mm): 3330 / 1800 (less head), 2490 (folded) / 4570
Product Weight (kg): 890 (dry)
Application: Vineyards
Includes spray heads, independent 320mm hydraulic fans, hydraulic drive stainless steel pump, automatic spray rate controller, self contained hydraulic drive system and tandem suspension axle. Ideal for vineyards.
Model Specifications
- Head Two row spraying head: 28 venturi air shear adjustable nozzles with individual metering and on/off taps. Left and right arms are independent hydraulic folding with adjustable width and centre frame. Boom frame is galvanised.
- Pump Multi-stage hydraulic drive pump, multiple impellers made with highly resistant engineering plastic for excellent chemical compatibility. 500+L/min. Driven by tractor remotes.
- Fan Size 320mm turbine fan, one per air tube, 3600rpm. Power consumed 29kw/38HP.
- Hydraulic Control Hitch mounted hydraulic power pack with: 40L oil reservoir with cartridge particulate filter, motors fitted with case drain, hydraulic distribution block incorporates anti-cavitation and pressure relief valves, 12V oil cooler.
- Nozzles Air shear.
- Controls Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.
- Tank Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and 40L fresh water hand wash tank.
- Frame Galvanised steel chassis, linkage hitch fitted with hydraulic power pack.
- Agitation Venturi agitator.
- Filtration Lid strainer and large capacity suction filter.
- Wheel Equipment Tandem suspension with 10x15inch wheels and tyres.
- PTO Driveshaft Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.
- HP Required Minimum 60 PTO HP
Dimensions - Length measured with linkage hitch:
Length: 4570mm
Width Less Head: 1800mm
Width Folded: 2490mm
Height: 3330mm
Weight 890kg (Dry)
Factory Options
- Hydraulic pump driven through power pack.
- Hydraulic Height Adjustment phased or independent.
- Hydraulic Row width adjustment phased or independent.
- Bravo 180S spray rate controller with hydraulic controls (in lieu) up to 5 sections.
- Bravo 180S spray rate controller with hydraulic controls (in lieu) 7 sections.
- Bravo 400S automatic rate controller with GPS guidance (in lieu) 7 spray sections.
- Bravo 400S automatic rate controller with hydraulic controls, GPS guidance (in lieu) 7 spray sections + 7 hydraulic sections.
- IBX 100 ISOBUS controller (in lieu requires compatible in-cab console).
- Delta 80 Universal Terminal to suit ISOBUS control.
- Quick turning hitch.
- Electric braked tandem suspension axle via trailer plug in lieu of standard axle.
- Hydraulic braked tandem suspension axle in lieu requires compatible tractor remotes.
- 100L Flush Tank
- Road Kit Brake and indicator lights with folding Oversize sign.
- Tail Light Kit Brake and indicator lights via trailer plug.
NOTE: Not all options will fit all models. Extra charges may apply to fitment of some options.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 1,500L (2 ROW) TRAILED SCRAM CROSS - MIN 60PTO HP

Linkage air assist Suntuff 500 litre sprayer with a 88 L/min diaphragm pump and 800mm fan.
Ideal for smaller vineyards or orchards and smaller horsepower tractors.
Specifications:
Market: Viticulture. Horticulture
Tank Size(L): 500
Connection Type: Linkage
Min PTO hp: 40
Pump Size (L/min): 88
Height / Width / Length (mm): 1325 / 1190 / 1400
Product Weight (kg): 140
Application: Vineyards and Orchards
Features:
Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body. APS71: 67L/min. capacity 5000kPa pressure. APS96: 88L/min. capacity 5000kPa pressure.
Fan Size: Axial flow type, fan with curved nylon reinforced blades, galvanised cowling and protective mesh cover. 600mm with 8 blades on 200L unit. 700mm with 8 blades on 400L unit. 800mm with 10 blades on 500L unit
Nozzles: Flip-over type for dilute/concentrate spraying, ceramic jets, stainless steel swirl-plates. 200L unit: 10 single nozzles (5 per side) twist on/off. 400L unit: 12 flip over nozzles (6 per side) twist on/off. 500L unit: 14 flip over nozzles (7 per side) twist on/off.
Gearbox: Single-speed with neutral position, oil-bath type.
Controls: 3 outlet with pressure regulator. 400/500L models standard with extra length hoses - for tractor control mount.
Tank: Polytuff, impact resistant, polyethylene construction with litre calibrations, non-spill screw-down lid.
Frame: Galvanised steel, suit cat I & II linkage (200L cat I linkage only).
Agitation: 200L: bypass, 400L / 500L: dual bypass.
Pressure Gauge: Glycerine filled gauge, located on the control valve.
Filtration: Lid strainer, suction line strainer and stainless steel nozzle filters.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
HP Required: 200/400L: Minimum 20 PTO HP, 500L: Minimum 40 PTO HP.
Fitment Options:
- Two sided deflector (600mm fan size)
- Two sided deflector (700mm fan size)
- Two sided conveyor (700mm / 800mm fan size)
- Two sided deflector (800mm fan size)
- Bottom air deflectors (600mm / 700mm / 800mm fan size)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 500L SUNTUFF LINKAGE SPRAYER - MIN 40PTO HP

Linkage 400 litre Slimline sprayer with 58 L/min pump, NO boom.
Specifications:
Market: Ag Lifestyle. Dairy & Livestock.
Tank Size (L): 400
Connection Type: Linkage
Pump Size (L/min): 58
Height / Width / Length (mm): 1310 / 740 / 1105
Product Weight (kg): 75
Application: Pasture and Ag Lifestyle spraying.
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body. BP20/15: 20L/min. capacity 1500kPa pressure. BP60/20: 58L/min. capacity 2000kPa pressure.
Controls: BP20/15: 2 outlet control valve with pressure regulation. BP60/20: 3 outlet control valve with pressure regulation.
Tank: Polytuff impact resistant polyethylene construction, moulded litre calibrations and non-spill screw-down lid with single breather.
Frame: Fully galvanised steel, cat. I & II linkage.
Agitation: Bypass agitation.
Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer, suction line strainer.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Options:
- 6m Field boom
- 8m Field boom
- 8 Jet vine boom (Used with BP60/20 pump only)
- 10 Jet vine boom (Used with BP60/20 pump only)
- Undervine & mid row boom
- Boomless nozzle mounting kit (brass nozzle not included)

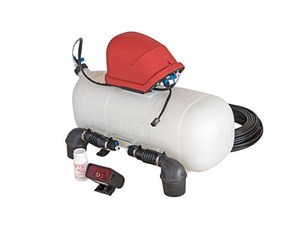

- 14L foam marker (single side)
- 16L foam marker (double side)
- Economy hosereel, 30m hose (12mm ID), PA spray gun & extension lance
- Electric on/off control-3 section (GOYEN solenoids)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 400L SLIMLINE LINKAGE SPRAYER - BP60/20 PUMP, NO BOOM

Trailed air assist 5,000 litre sprayer with 161 L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft and Radak conveyor with 1000mm fan. Ideal for orchards with trees up to 5 metres high.
Specifications:
Market: Horticulture
Tank Size (L): 5000
Connection Type: Trailed
Min PTO hp: 95
Pump Size (L/min): 161
Height / Width / Length (mm): 2300 / 1880 / 5400
Product Weight (kg): 1,220 (dry)
Application: Orchards
Features:
Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast aluminium body with brass heads & manifolds. IDS1701:161L/min. capacity, 5000kPa pressure.
Fan Size: 920mm or 1000mm axial flow type, 10 bladed fan with curved nylon reinforced blades, centrifugal clutch for soft engagement / disengagement and protective mesh cover.
Nozzles: 24 flip-over nozzle bodies for dilute/concentrate spraying with on/off. 12 Ceramic hollow cone nozzles per side and 12 ceramic jets with stainless steel swirl plates per side. (16 per side with the Radak conveyor).
Gearbox: Oil-bath type, 2-speed with neutral position
Controls: 40 Bar electric section valves with master valve, electric pressure regulator and in cab controls.
Main Tank: Polytuff impact resistant polyethylene construction with calibrated sight line. 50mm Camlock top & bottom fill.
Hand Wash Tank: 15L polytuff tank filled through cap. Located next to bottom fill.
Chemical Induction: Venturi suction probe.
Frame: Galvanised steel, heavy duty stand & adjustable drawbar.
Agitation: Pump bypass plus venturi agitator.
Pressure gauge: Glycerine filled gauge located on valve bank.
Filtration: Suction line filter, pressure filter, nozzle cap strainers.
Wheel Equipment: Glideflex axle fitted with 558-400/60 - 22.5" flotation tyres (speed rating 30 km/h)
PTO Driveshaft: Quality Bondioli & Pavesi constant velocity driveshaft with quick release pins & safety cover.
HP Required: Min 95 PTO HP
Options:
- Hydraulic kit for Radak Conveyor (top wings) (D99-155B)
- SCRAM Jet (to suit Radak conveyor) (D99-180)
- AVO Jet (to suit Radak conveyor) (D99-187)
- Leaf guard (to suit Powerhead & Radak) (D99-176)
- Double spray lines (Powerhead - includes upgrade to 1000mm fan) (D99-189)
- Double spray lines (Radak) (D99-190)
- Bravo 180S automatic rate controller (D99-143)
- Tandem suspnsion axle with 13.0/65 - 18" implement tyres (D99-191)
- IDS2001 pump,182L/min. capacity, 5000kPa pressure (D99-148)
- IDS2600 pump,249L/min. capacity, 5000kPa pressure (D99-149)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 5,000L SUPAFLO TRAILED SPRAYER WITH RADAK FAN - MIN 95PTO HP

Linkage air assist Oktopus 1,000 litre sprayer with a 93 L/min diaphragm pump, 10 outlets (five per side) for targeted spraying and electric valve controls. Ideal for vineyards and berries. Note: images shown are of the Oktopus 2000L.
Specifications:
Market: Horticulture, Viticulture
Tank Size (L): 1,000
Connection Type: Trailed
Min PTO HP: 50
Pump Size (L/min): 93
Height / Width / Length (mm): 2500 / 1540 / 2860
Product Weight (kg): 350 (dry)
Application: Vineyards and Berries.
Features:
Pump: Silvan oil-backed diaphragm type with nitrile diaphragms, corrosion resistant, cast anodised aluminium body. IDS121: 93L/min. capacity, 5000kPa pressure
Fan size: 450mm diameter turbine fan, 10 fishtail outlets.
Nozzles: Flip-over type for dilute/concentrate spraying with ceramic hollow cone nozzles and 10 nozzles (5 per side) twist on/off.
Gearbox: Two speed with neutral position, oil-bath type.
Control: 40 bar electric section valves, master valve, electric pressure regulator and in cab controls.
Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, non-spill lid. 80L flush tank and 15L hand wash tank fitted to 1,000L unit. 40L fresh water tank fitted to 2,000L unit.
Frame: 1,000L: Galvanised steel with jockey wheel & adjustable drawbar.
Agitation: 1,000L & 2,000L: Pump bypass plus venturi agitator
Pressure Gauge: 63mm, 0-60 bar glycerine filled gauge (500L unit)
Filtration: Lid strainer and suction line strainer
Trailed Wheel Equipment: 1,000L: 50mm axle with 15" tubeless tyres on painted rims
PTO Driveshaft: Quality driveshaft with quick release pins and safety cover
HP Required: 50PTO HP
Options:
- Bravo 180S automatic rate controller (D99-143)
- Narrow Oktopus fan (D99-82)
- Flotation tyres - 400/60 x 15.5" with fixed axle (in lieu of standard singles) (D99-80)
- Quick turning hitch (2000L only) (D99-170)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 1,000L TRAILED OKTOPUS SPRAYER - MIN 50PTO HP

3,000L Turbo Scram Trailed 3 Row Tri-Wrap: Includes sprayheads 6 x 320mm fans, Hydraulic drive stainless steel pump, automatic spray rate controller, self contained hydraulic drive system, tandem suspension axle
Specifications:
Market: Horticulture.
Tank Size (L): 3,000
Connection Type: Trailed
Min PTO HP: 80
Pump Size (L/min): 350
Application: Vineyards
Features:
Head: Two row spraying head: 28 venturi air shear adjustable nozzles with individual metering and on/off taps. Three row spraying head: 42 venturi air shear adjustable nozzles with individual metering and on/off taps. Left & right arms are independent hydraulic folding with adjustable width & centre frame. Boom frame is galvanised.
Pump: Stainless steel, hydraulic drive centrifugal pump, 350 L/min. Stainless steel shaft and Viton/ceramic seal. Driven by tractor remotes.
Fan Size: 320 mm turbine fan, one per air tube, 3600 rpm. Power consumed 29 kw / 38HP
Hydraulic Control: Hitch mounted hydraulic power pack with; 40L oil reservoir with cartridge particulate filter, motors fitted with case drain, hydraulic distribution block incorporates anticavitation and pressure relief valves, 12V oil cooler
Nozzles: Air shear.
Controls: Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.
Frame: Galvanised steel chassis, linkage hitch fitted with hydraulic power pack
Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and hand wash tank. (205L flush tank on 3000L)
Agitation: Venturi agitator.
Filtration: Lid strainer and large capacity suction filter.
Wheel Equipment: Tandem suspension axle with 10 x 15" tyres (3000L) or 11.5 x 15.3" tyres (4000L).
PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.
HP Required: Minimum 65 PTO HP (2 row), Minimum 80 PTO HP (3 row).
Options:
- Bravo 180S spray rate controller with hydraulic controls (in lieu) (J99-180)
- IBX 100 ISOBUS controller (in lieu - requires compatible in-cab console) (J99-181)
- Hydraulic row width/height adjustment
- Hydraulic pump driven through power pack (D99-185)
- 100L flush tank (to suit 4000L) (J99-112)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 3,000L (3 ROW) TRAILED TURBO SCRAM TRI-WRAP - MIN 80PTO HP

Linkage 800 litre Slimline sprayer with 132 L/min pump, NO boom.
Specifications:
Market: Ag Lifestyle. Dairy & Livestock.
Tank Size (L): 800
Connection Type: Linkage
Pump Size (L/min): 132
Height / Width / Length (mm): 1370 / 980 / 1330
Product Weight (kg): 120
Application: Pasture and Ag Lifestyle spraying.
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount (1000L only). BP60/20: 58L/min. capacity 2000kPa pressure. BP130/20: 132 L/min. capacity 2000kPa pressure.
Controls: BP60/20: 3 outlet control valve with pressure regulation. BP130/20: 1 lever, 4 outlet control valve with pressure regulation.
Tank: Polytuff impact resistant polyethylene construction, moulded litre calibrations and non spill screw-down lid with single breather.
Frame: 800L model: Galvanised steel, cat. 1 & II linkage. 1000L model: Galvanised steel with adjustable cat II hitch system. Vertical boom channel for positioning the boom at the optimum spray height.
Agitation: Bypass agitation.
Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer, suction line strainer.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Options:
- 6m Field boom
- 8m Field boom
- 10m Field boom
- 12m Fieldmaster boom with suspension (1000L only)
- 6m Hydraulic fold boom
- 8m Devil boom with hydraulic fold
- 10m HD Devil boom with hydraulic fold
- 12m HD Devil boom with hydraulic fold
- 14mHD Devil boom with hydraulic fold
- 15m HD Devil boom with hydraulic fold
- Hydraulic lift, galvanised single hydraulic system - 10, 12, 14 & 15m devil booms
- Hydraulic lift, with airbag suspension - 10, 12, 14 & 15m HD devil booms
- Parellelogram airbag suspension - 10, 12, 14 & 15m HD devil booms (no hydraulic lift)
- 8 Jet vine boom
- 10 Jet vine boom
- Olive boom (Used with BP130/20 pump only)
- Undervine & mid row boom
- 70L flush tank kit to flush the filter, spraylines and nozzles (1000L only)
- 16L foam marker (double side)
- 57L Paddock marker foam marker
- Economy hosereel, 20m hose (12mm ID) & Jetpro spraygun
- Electric control 3 section with in cab pressure adj
- Bravo 180S automatic rate controller
- Silmix chemical hopper
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 800L SLIMLINE LINKAGE SPRAYER - BP130/20 PUMP, NO BOOM

Trailed over row P55DSE 2 row 3,500 litre turbowrap sprayer with a hydraulic drive 350 L/min stainless steel pump, 550mm turbine fan, sprayheads, automatic spray rate controller, wide angle shaft and tandem suspension axle.
Ideal for vineyards.
Specifications:
Market: Viticulture.
Tank Size (L): 3,500
Connection Type: Trailed
min PTO hp: 70
Pump Size (L/min): 350
Height / Width / Length (mm): 3630 / 1935 (less head), 2605 (folded) / 5640
Product Weight (kg): 1,100 (dry)
Application: Vineyards
Features:
Head: Two row spraying head: 28 venturi air shear adjustable nozzles with individual metering and on/off taps. Three row spraying head: 42 venturi air shear adjustable nozzles with individual metering and on/off taps. Left & right arms are independent hydraulic folding with adjustable width & centre frame. Boom frame is galvanised.
Pump: Stainless steel, hydraulic drive centrifugal pump, 350 L/min. Stainless steel shaft and Viton/ceramic seal.
Fan Size: P55DSE: 550mm dia. turbine fan, 3700 rpm. Power consumed 50 kw / 67HP.
Nozzles: Air shear.
Gearbox: Multiplication type through multi-grip, multi-vee belt and pulley, over-run free wheeling hub and oil bath fan housing.
Controls: Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.
Frame: Galvanised steel chassis, adjustable drawbar with jockey wheel.
Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and 40L fresh water hand wash tank.
Chem Induction: Suction probe with detachable hose.
Agitation: Venturi agitator.
Filtration: Lid strainer and large capacity suction filter.
Wheel Equipment: Tandem simplicity suspension with 10 x 15" wheels & tyres. (2000L) or 11.5 x 15.3" wheels & tyres (3500L)
PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.
HP Required: Minimum 70 PTO HP (2 row), Minimum 90 PTO HP (3 row).
Options:
- Quick turning hitch (D99-170)
- Hydraulic row width/height adjustment
- Bravo 180S spray rate controller with hydraulic controls (in lieu) (J99-180)
- Road kit (D99-151)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 3,500L (2 ROW) P55DSE TRAILED TURBOWRAP - MIN 70PTO HP

Medium-duty corrosion resistant hot dip galvanised frame with 8 metre spraying width.
Features break back device that protects boom if an obstruction is hit.
Specifications:
Nozzle Quantity : 12
Boom Width (m) : 5.5
Spray Width (m) : 6
Nozzle Spacing (m) : 0.5
Min Boom Height (mm) : 500
Weight (kg) : 35
Folding Position : Horizontal
Features:
- fully folding arms with stainless steel spraylines & non-drip nozzle assembly
- ideal for linkage or trailer type sprayers
- supplied with air induction nozzles
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 6M ECONOPAK BOOM

Linkage 600 litre Super sprayer with 132 L/min pump, without boom. Ideal for spraying pasture and ag lifestyle use.
Specifications:
Market: Dairy & Livestock
Tank Size (L): 600
Connection Type: Linkage
Pump Size (L/min): 132
Height / Width / Length (mm): 1300 / 1150 / 1025
Product Weight (kg): 105
Application: Pasture spraying.
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP60/20: 58L/min. capacity 2000kPa pressure. BP130/20: 132 L/min. capacity 2000kPa pressure.
Controls: 3 outlet manual control valve with pressure regulator.
Tank: Low profile, 400 and 600L Polytuff impact resistant polyethylene construction, external
sightline with floating ball and non-spill offset screw-down lid with single breather. 15L freshwater tank with screw-down lid and on/off tap. 4L toolbox with polyethylene lid.
Frame: Galvanised steel with adjustable cat I & II hitch on 400L and cat II hitch on 600L. Vertical boom channel for positioning the boom at the optimum spray height.
Agitation: Bypass agitation.
Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer, suction line strainer with stop valve fitted at the side of the tank to enable ease of filter maintenance.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Options:
- 6m Field boom
- 8m Field boom
- 10m Field boom
- 12m Fieldmaster boom with suspension (600L only)
- 6m Hydraulic fold boom
- 8m Devil boom with hydraulic fold
- 8 Jet vine boom
- 10 Jet vine boom
- Olive boom (Used with BP130/20 pump only)
- Undervine and mid row boom
- Boomless nozzle mounting kit (brass nozzle not included)
- 70L flush tank kit to flush the filter, spraylines and nozzles (600L only)
- 14L foam marker (single side)
- 16L foam marker (double side)
- 57L Paddock marker foam marker
- Economy hose reel, 20m hose (12mm ID) with Jetpro spray gun
- Reel tuff 12V remote reel with Turbo 400 spray gun (600L only) (inc. APS41 pump upgrade)
- Electric on/off control 3 section
- Electric control 3 section with in cab pressure adjustment
- Bravo 180S automatic rate controller
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 600L SUPER SERIES LINKAGE SPRAYER - BP130/20 PUMP, NO BOOM

Find Sprayers For Sale. Browse 692 Sprayers listings from Farm Supplies Machinery & Equipment.

New & Used Sprayers For Sale in Australia

Farm Supplies Machinery & Equipment

Sale Price

SILVAN 4,000L (3 ROW) TRAILED SCRAM CROSS - MIN 60PTO HP

SILVAN 3,000L TRAILED VINEYARD HERBICIDE SPRAYER (3 ROW)

SILVAN 1,500L (2 ROW) TRAILED SCRAM CROSS - MIN 60PTO HP

SILVAN 500L SUNTUFF LINKAGE SPRAYER - MIN 40PTO HP

SILVAN 400L SLIMLINE LINKAGE SPRAYER - BP60/20 PUMP, NO BOOM

SILVAN 5,000L SUPAFLO TRAILED SPRAYER WITH RADAK FAN - MIN 95PTO HP

SILVAN 1,000L TRAILED OKTOPUS SPRAYER - MIN 50PTO HP

SILVAN 3,000L (3 ROW) TRAILED TURBO SCRAM TRI-WRAP - MIN 80PTO HP

SILVAN 800L SLIMLINE LINKAGE SPRAYER - BP130/20 PUMP, NO BOOM

SILVAN 3,500L (2 ROW) P55DSE TRAILED TURBOWRAP - MIN 70PTO HP

SILVAN 6M ECONOPAK BOOM

SILVAN 600L SUPER SERIES LINKAGE SPRAYER - BP130/20 PUMP, NO BOOM

Farm Supplies Machinery & Equipment

Dealer Address
