A 20L self-contained compact portable sprayer with its own power supply. Compact design but heavy duty construction frame with removable handle and extra wide wheels and solid metal axle.
It has a 12V Smoothflo pump, 7 litres per min open flow (max 120psi) with Spotspray Jolly gun, adjustable nozzle and 6M of hose.
Features:
- Portable sprayer with its own 12V battery
- heavy duty construction frame with removable handle
- impact resistant polyethylene UV stabilised tank
- 240V battery recharger
- smoothflo 12V diaphragm pump max 7L/min open flow 120psi
- pressure regulator to accurately apply chemicals
- spotjet 600mm stainless steel lance with 6m hose and adjustable nozzle
Options:
WP2-T - optional boom
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 20L RECHARGEABLE UPRIGHT TROLLEY SPRAYER

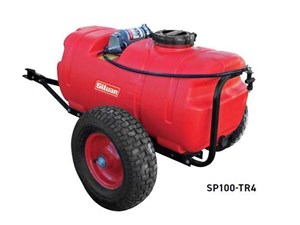

Converts 55L redline into a trailed sprayer for spraying larger areas.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN TRAILER KIT (TO SUIT 55L REDLINE SPRAYER)

Linkage turbomiser 400 litre sprayer with a 140 L/min centrifugal pump and a 420mm fan. Ideal for vineyards and greenhouses. Note: spray head not included
Specifications:
Market: Horticulture. Viticulture.
Tank Size (L): 400
Connection Type: Linkage
Min PTO HP: 25
Pump Size (L/min): 140
Height / Width / Length (mm): 1150 / 1100 / 1000
Product Weight (kg): 207 (dry)
Application: Vineyards, greenhouse
Features:
Pump: CD32 centrifugal pump 140L/min constructed from toughened nylon. Stainless steel shaft & viton/ceramic seal.
Fan Size: P42E: 420 mm dia. turbine fan, 3900 rpm. Power consumed 18 kw / 35HP. P45E: 450mm dia. turbine fan, 4500 rpm. Power consumed 34 kw / 45HP.
Nozzles: Air shear.
Gearbox: Multiplication type through multi-grip, multi-vee belt and pulley, over-run free wheeling hub and oil bath fan housing.
Controls: Two sided electric on/off control with control box mounted in cabin. Rotary plate distribution regulators with 15 settings and manual pressure adjustment.
Frame: Galvanised RHS steel construction, cat II linkage.
Tank: 400L Polytuff impact resistant polyethylene construction, calibrated sight line, non spill lids, hydro chemical mixer in larger basket, lids with basket strainers, seperate in-built 18L fresh water hand wash tank.
Agitation: Bypass and pneumatic
Pressure Gauge: Protected 100mm glycerine gauge fitted at front of sprayer
Filtration: Lid strainer and suction line strainer
PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.
HP Required: Minimum 25PTO HP (P42), 45 PTO HP (P45)
Options:
- Super cannon for P42E (GT42-1)
- Super cannon for P45E (GT45-1)
- Manual turntable for Super Cannon (GT55-4)
- Hydraulic turntable for Super Cannon (GT55-9)
- Double sided diffuser head (5 outlets per side) for P42E (GT40-2)
- Double sided diffuser head (5 outlets per side) for P45E (GT45-2)
- Vineyard head - 4 heads (4x4) for P45E (GT45-11)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 400L P42E LINKAGE TURBOMISER - MIN 25PTO HP (SPRAY HEAD NOT INCLUDED)

Diaphragm Kit (Viton) to suit 8000 series pump
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN DIAPHRAGM KIT (VITON) TO SUIT 8000 SERIES PUMP

Specifications:
Market: Viticulture.
Tank Size (L): 1,500
Connection Type: Trailed
Min PTO hp: 60
Pump Size (L/min): 500+
Height / Width / Length (mm): 3330 / 1800 (less head), 2490 (folded) / 4570
Product Weight (kg): 890 (dry)
Application: Vineyards
Includes spray heads, independent 320mm hydraulic fans, hydraulic drive stainless steel pump, automatic spray rate controller, self contained hydraulic drive system and tandem suspension axle. Ideal for vineyards.
Model Specifications
- Head Two row spraying head: 28 venturi air shear adjustable nozzles with individual metering and on/off taps. Left and right arms are independent hydraulic folding with adjustable width and centre frame. Boom frame is galvanised.
- Pump Multi-stage hydraulic drive pump, multiple impellers made with highly resistant engineering plastic for excellent chemical compatibility. 500+L/min. Driven by tractor remotes.
- Fan Size 320mm turbine fan, one per air tube, 3600rpm. Power consumed 29kw/38HP.
- Hydraulic Control Hitch mounted hydraulic power pack with: 40L oil reservoir with cartridge particulate filter, motors fitted with case drain, hydraulic distribution block incorporates anti-cavitation and pressure relief valves, 12V oil cooler.
- Nozzles Air shear.
- Controls Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.
- Tank Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and 40L fresh water hand wash tank.
- Frame Galvanised steel chassis, linkage hitch fitted with hydraulic power pack.
- Agitation Venturi agitator.
- Filtration Lid strainer and large capacity suction filter.
- Wheel Equipment Tandem suspension with 10x15inch wheels and tyres.
- PTO Driveshaft Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.
- HP Required Minimum 60 PTO HP
Dimensions - Length measured with linkage hitch:
Length: 4570mm
Width Less Head: 1800mm
Width Folded: 2490mm
Height: 3330mm
Weight 890kg (Dry)
Factory Options
- Hydraulic pump driven through power pack.
- Hydraulic Height Adjustment phased or independent.
- Hydraulic Row width adjustment phased or independent.
- Bravo 180S spray rate controller with hydraulic controls (in lieu) up to 5 sections.
- Bravo 180S spray rate controller with hydraulic controls (in lieu) 7 sections.
- Bravo 400S automatic rate controller with GPS guidance (in lieu) 7 spray sections.
- Bravo 400S automatic rate controller with hydraulic controls, GPS guidance (in lieu) 7 spray sections + 7 hydraulic sections.
- IBX 100 ISOBUS controller (in lieu requires compatible in-cab console).
- Delta 80 Universal Terminal to suit ISOBUS control.
- Quick turning hitch.
- Electric braked tandem suspension axle via trailer plug in lieu of standard axle.
- Hydraulic braked tandem suspension axle in lieu requires compatible tractor remotes.
- 100L Flush Tank
- Road Kit Brake and indicator lights with folding Oversize sign.
- Tail Light Kit Brake and indicator lights via trailer plug.
NOTE: Not all options will fit all models. Extra charges may apply to fitment of some options.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 1,500L (2 ROW) TRAILED SCRAM CROSS - MIN 60PTO HP

Female Thread = 1/2" BSP
Thread Length = 13 mm
Maintaining a leak free and smooth liquid flow by using quality components and fittings is essential for maximum performance from all installations.
Selectas range of fittings are manufactured from high quality polypropylene and are compatible with fungicides, herbicides, chemical fertilisers etc, and will withstand temperatures of up to 100ºC.
Standard BSP male and female threads can be used in conjunction with each other to construct assorted types and sizes of inlets, outlets, suction fittings and hose unions or they can be used with standard brass, galvanised and other fittings.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 1/2" BACK NUT (FEMALE)

Trailed air assist 3,000 litre Orchard sprayer with 182 L/min diaphragm pump, electric controls, a Glideflex axle upgrade, wide angle shaft and Radak conveyor with 920mm fan.
Ideal for orchards with trees up to 5 metres high.
Note: the image featured shows the Powerhead fan.
Specifications:
Market: Horticulture
Tank Size (L): 3000
Connection Type: Trailed
Min PTO hp: 75
Pump Size (L/min): 182
Height / Width / Length (mm): 1800 / 1755 / 3995
Product Weight (kg): 1,000 approx. (dry)
Application: Orchards
Features:
Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast aluminium body with brass heads and manifolds. IDS2001: 182L/min. capacity 5000kPa pressure.
Fan Size: 920mm or 1000mm axial flow type, 10 bladed fan with curved nylon reinforced blades, centrifugal clutch for soft engagement / disengagement and protective mesh cover.
Nozzles: 24 flip-over nozzle bodies for dilute/concentrate spraying with on/off. 12 ceramic hollow cone nozzles per side and 12 ceramic jets with stainless steel swirl-plates per side. (16 per side with Radak conveyor).
Gearbox: Oil-bath type, 2-speed with neutral position
Controls: 40 Bar electric section valves with master valve, electric pressure regulator and in cab controls.
Main Tank: 3400L polytuff impact resistant polyethylene construction, calibrated sightline, flip top lid, 50mm camlock bottom fill.
Flush Tank: 205L polytuff tank with top fill. Used to flush pump, filter, spray lines and nozzles.
Hand Wash Tank: 15L polytuff tank with top fill.
Chemical Induction: Venturi suction probe.
Frame: Galvanised steel, heavy duty stand & adjustable drawbar.
Agitation: Pump bypass plus venturi agitator
Pressure gauge: Glycerine filled gauge located on valve bank.
Filtration: Suction line filter, pressure filter, nozzle cup strainers.
Wheel Equipment: Glideflex axle with 16" implement tyres (speed rating 30 km/h)
PTO Driveshaft: Quality Bondioli & Pavesi constant velocity driveshaft with quick release pins & safety cover.
HP Required: Min 80PTO HP (920mm fan), minimum 90 PTO HP (1000mm fan)
Options:
- Hydraulic kit for Radak Conveyor (top wings) (D99-155B)
- SCRAM Jet (to suit Radak conveyor) (D99-180)
- Leaf guard (to suit Powerhead & Radak) (D99-175)
- Double spray lines (Powerhead - includes upgrade to 1000mm fan) (D99-189)
- Double spray lines (Radak) (D99-190)
- Bravo 180S automatic rate controller (D99-143)
- BKT flotation tyres - 558-400/55 - 22.5 (in lieu of standard singles) (D99-79)
- IDS2600 pump,249L/min. capacity, 5000kPa pressure (D99-149)
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 3,000L TRAILED ORCHARD SPRAYER WITH RADAK FAN - MIN 90PTO HP

Linkage 800 litre Super sprayer with 71 L/min pump, without boom. Ideal for pasture spraying.
Specifications:
Market: Dairy & Livestock
Tank Size (L): 800
Connection Type: Linkage
Pump Size (L/min): 71
Height / Width / Length (mm): 1315 / 1395 / 1350
Product Weight (kg): 145
Application: Pasture and ag lifestyle.
Features:
Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP75/20: 71L/min. capacity 2000kPa pressure. BP130/20: 132 L/min. capacity 2000kPa pressure.
Controls: 3 outlet manual control valve with pressure regulator.
Tank: Low profile, 800 and 1100L Polytuff impact resistant polyethylene construction, external sightline with floating ball and non-spill offset screw-down lid with single breather. 15L freshwater tank with screw-down lid and on/off tap. 4L toolbox with polyethylene lid. 50mm Camlock bottom fill (1100L only).
Frame: Galvanised steel, with adjustable cat II hitch. Vertical boom channel positions boom at optimum spray height.
Chemical Induction: 1100L: Venturi suction probe with detachable hose.
Agitation: Bypass agitation.
Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.
Filtration: Lid strainer, suction line strainer with stop valve fitted at the side of the tank to enable ease of filter maintenance.
PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.
Options:
- 6m Field boom
- 8m Field boom
- 10m Field boom
- 12m Fieldmaster boom with suspension
- 6m Hydraulic fold boom
- 8m Devil boom with hydraulic fold
- 10m HD Devil boom with hydraulic fold
- 12m HD Devil boom with hydraulic fold
- 14m HD Devil boom with hydraulic fold
- 15m HD Devil boom with hydraulic fold
- Hydraulic lift, galvanised single hydraulic system - 10, 12, 14 & 15m Devil booms
- 8 Jet vine boom (Used with BP60/20 pump only)
- 10 Jet vine boom (Used with BP60/20 pump only)
- Olive boom (Used with BP130/20 pump only)
- Undervine and mid row boom
- Boomless nozzle mounting kit (brass nozzle not included)
- 70L flush tank kit to flush the filter, spraylines and nozzles (600L only)
- 16L foam marker (double side)
- 57L Paddock marker foam marker
- Economy hose reel, 20m hose (12mm ID) with Jetpro spray gun
- Reel tuff 12V remote reel with Turbo 400 spray gun (600L only) (inc. APS41 pump upgrade)
- Electric on/off control 3 section
- Electric control 3 section with in cab pressure adjustment
- Bravo 180S automatic rate controller
- IBX 100 ISOBUS controller (in lieu - requires compatible in-cab console)
- Silmix chemical hopper
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN 800L SUPER SERIES LINKAGE SPRAYER - BP75/20 PUMP, NO BOOM

Spraying hose reel complete with 30 metres of 10mm AG hose.
- Powder coated steel
- Supplied with 30m of 3/8 ag hose
- Lockable hub with locking pin
- Common foot print suits 300L Lighfoot and 400L/800L Squatpak tanks
Specifications:
Max Pressure: 20 Bar / 290 psi
Product Weight (kg): 10
Height / Width / Length (mm): 390 / 375 / 330
Hose: 30m of 10mm Ag hose
Features:
- powder coated steel
- supplied with 30m of 3/8" ag hose
- lockable hub with locking pin
- common foot print suits 300L lightfoot and 400L/800L squatpak tanks
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 30M ECO HOSE REEL (SUITS 300L LIGHTFOOT, 400L & 800L SQUATPAK TANKS)

Lightweight, corrosion resistant ergonomical design sprays from straight stream to conical mist.
Has adjustable spray pattern.
Specifications:
Max pressure: 40 Bar / 600 psi
Product Weight (kg): 0.50
Length (mm): 293
Hose Sizes I.D. : 10mm / 12.5mm
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.

SILVAN VARIJET SPRAY GUN MKII

Suction line filters provide filtration to remove larger particles of grit and are ideally mounted between the tank and pump. Featuring 8mm threaded brass inserts for easy adaptation to frames and chassis etc. Screw off bowl for easy cleaning.
Supplied with mesh elements and replacement elements are available.
Filter Type = SAR1
Mesh Size = 32
Flow Rate up to 100 L/min
Port Size = 1 1/4"
Mount inserts = 2
Width = 107 mm
Height = 213 mm
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN G8074007 STAGE B SUCTION FILTER

Male Thread - 1/2 "
Female Thread = 1/2 "
Maintaining a leak free and smooth liquid flow by using quality components and fittings is essential for maximum performance from all installations.
Selectas range of fittings are manufactured from high quality polypropylene and are compatible with fungicides, herbicides, chemical fertilisers etc, and will withstand temperatures of up to 100ºC.
Standard BSP male and female threads can be used in conjunction with each other to construct assorted types and sizes of inlets, outlets, suction fittings and hose unions or they can be used with standard brass, galvanised and other fittings.
All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!
Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE

SILVAN 1/2" (MALE / FEMALE) ELBOW

Find Sprayers For Sale. Browse 697 Sprayers listings from Farm Supplies Machinery & Equipment.

New & Used Sprayers For Sale in Australia

Farm Supplies Machinery & Equipment

Sale Price

SILVAN 20L RECHARGEABLE UPRIGHT TROLLEY SPRAYER

SILVAN TRAILER KIT (TO SUIT 55L REDLINE SPRAYER)

SILVAN 400L P42E LINKAGE TURBOMISER - MIN 25PTO HP (SPRAY HEAD NOT INCLUDED)

SILVAN DIAPHRAGM KIT (VITON) TO SUIT 8000 SERIES PUMP

SILVAN 1,500L (2 ROW) TRAILED SCRAM CROSS - MIN 60PTO HP

SILVAN 1/2" BACK NUT (FEMALE)

SILVAN 3,000L TRAILED ORCHARD SPRAYER WITH RADAK FAN - MIN 90PTO HP

SILVAN 800L SUPER SERIES LINKAGE SPRAYER - BP75/20 PUMP, NO BOOM

SILVAN 30M ECO HOSE REEL (SUITS 300L LIGHTFOOT, 400L & 800L SQUATPAK TANKS)

SILVAN VARIJET SPRAY GUN MKII

SILVAN G8074007 STAGE B SUCTION FILTER

SILVAN 1/2" (MALE / FEMALE) ELBOW

Farm Supplies Machinery & Equipment

Dealer Address
