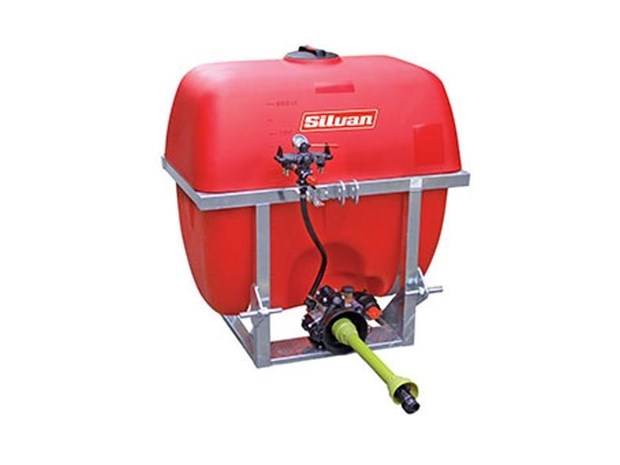

Linkage 800 litre Slimline sprayer with 132 L/min pump, NO boom.

Specifications:

Market: Ag Lifestyle. Dairy & Livestock.
Tank Size (L): 800
Connection Type: Linkage
Pump Size (L/min): 132
Height / Width / Length (mm): 1370 / 980 / 1330
Product Weight (kg): 120
Application: Pasture and Ag Lifestyle spraying.

Features:

Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount (1000L only). BP60/20: 58L/min. capacity 2000kPa pressure. BP130/20: 132 L/min. capacity 2000kPa pressure.

Controls: BP60/20: 3 outlet control valve with pressure regulation. BP130/20: 1 lever, 4 outlet control valve with pressure regulation.

Tank: Polytuff impact resistant polyethylene construction, moulded litre calibrations and non spill screw-down lid with single breather.

Frame: 800L model: Galvanised steel, cat. 1 & II linkage. 1000L model: Galvanised steel with adjustable cat II hitch system. Vertical boom channel for positioning the boom at the optimum spray height.

Agitation: Bypass agitation.

Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.

Filtration: Lid strainer, suction line strainer.

PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.

Options:

- 6m Field boom
- 8m Field boom
- 10m Field boom
- 12m Fieldmaster boom with suspension (1000L only)
- 6m Hydraulic fold boom
- 8m Devil boom with hydraulic fold
- 10m HD Devil boom with hydraulic fold
- 12m HD Devil boom with hydraulic fold
- 14mHD Devil boom with hydraulic fold
- 15m HD Devil boom with hydraulic fold
- Hydraulic lift, galvanised single hydraulic system - 10, 12, 14 & 15m devil booms
- Hydraulic lift, with airbag suspension - 10, 12, 14 & 15m HD devil booms
- Parellelogram airbag suspension - 10, 12, 14 & 15m HD devil booms (no hydraulic lift)
- 8 Jet vine boom
- 10 Jet vine boom
- Olive boom (Used with BP130/20 pump only)
- Undervine & mid row boom
- 70L flush tank kit to flush the filter, spraylines and nozzles (1000L only)
- 16L foam marker (double side)
- 57L Paddock marker foam marker
- Economy hosereel, 20m hose (12mm ID) & Jetpro spraygun
- Electric control 3 section with in cab pressure adj
- Bravo 180S automatic rate controller
- Silmix chemical hopper
