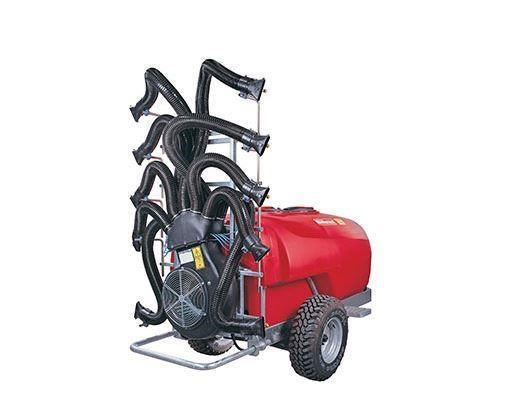

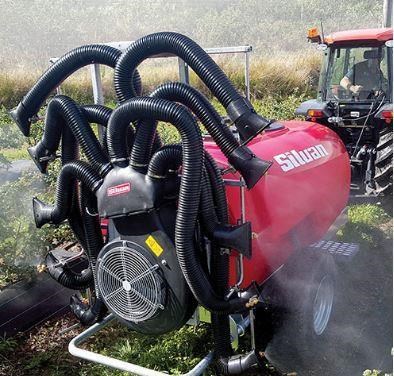

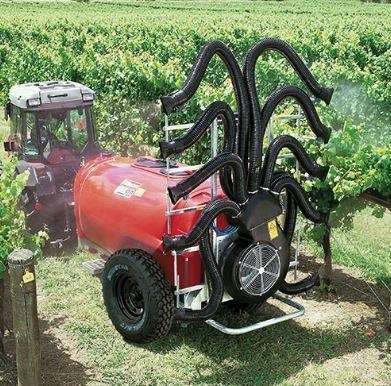

SILVAN 2,000L TRAILED OKTOPUS SPRAYER - MIN 50PTO HP for sale

Price: $36,960
Trailed air assist Oktopus 2000 litre sprayer with a 115 L/min diaphragm pump, 10 outlets (five per side) for targeted spraying, electric valve controls and Glideflex axle. Ideal for vineyards and berries.

Specifications:

Market: Horticulture, Viticulture
Tank Size (L): 2,000
Connection Type: Trailed
Min PTO HP: 50
Pump Size (L/min): 115
Height / Width / Length (mm): 2500 / 1540 / 3750
Product Weight (kg): 640 (dry)
Application: Vineyards and Berries.

Features:

Pump: Silvan oil-backed diaphragm type with nitrile diaphragms, corrosion resistant, cast anodised aluminium body. APS121:115L/min. capacity, 5000kPa pressure

Fan size: 450mm diameter turbine fan, 10 fishtail outlets.

Nozzles: Flip-over type for dilute/concentrate spraying with ceramic hollow cone nozzles and 10 nozzles (5 per side) twist on/off.

Gearbox: Two speed with neutral position, oil-bath type.

Control: 40 bar electric section valves, master valve, electric pressure regulator and in cab controls.

Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, non-spill lid. 80L flush tank and 15L hand wash tank fitted to 1,000L unit. 40L fresh water tank fitted to 2,000L unit.

Frame: 2,000L: Galvanised steel with jockey wheel & adjustable drawbar.

Agitation: 1,000L & 2,000L: Pump bypass plus venturi agitator

Pressure Gauge: 63mm, 0-60 bar glycerine filled gauge (500L unit)

Filtration: Lid strainer and suction line strainer

Trailed Wheel Equipment: 2,000L: Glideflex suspension axle, 2 x 15" tubeless tyres on galvanised rims (max speed rating 30 km/h)

PTO Driveshaft: Quality driveshaft with quick release pins and safety cover

HP Required: 50PTO HP

Options:

- Bravo 180S automatic rate controller (D99-143)
- Narrow Oktopus fan (D99-82)
- Flotation tyres - 400/60 x 15.5" with fixed axle (in lieu of standard singles) (D99-80)
- Quick turning hitch (2000L only) (D99-170)


All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
