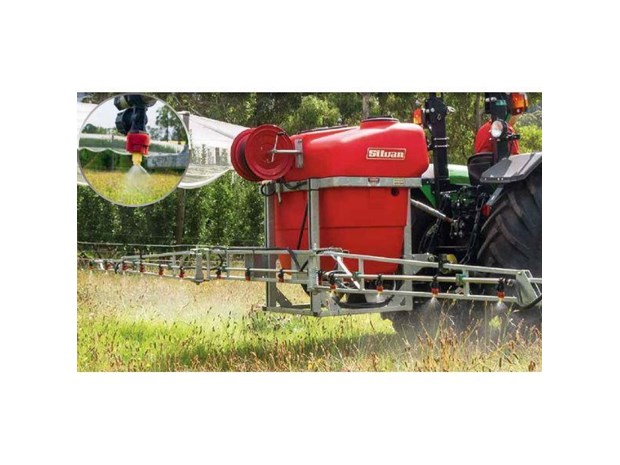

Linkage 800L Pasturepak sprayer with 71 L/min pump, reel, hose & gun and 10m Field boom. Ideal for pasture spraying.

Specifications:

Market: Dairy & Livestock
Tank Size (L): 800
Connection Type: Linkage
Pump Size (L/min): 71
Height / Width / Length (mm): To be confirmed.
Product Weight (kg): To be confirmed.
Application: Pasture spraying.

Features:

Pump: Silvan self-priming oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with raised pump mount. BP60/20: 58 L/min. capacity 2000kPa pressure. BP75/20: 71 L/min. capacity 2000kPa pressure.

Boom: Field boom with stainless steel spray lines, non-drip nozzle holders, fully galvanised frame, nozzle protection and spring loaded safety break back/forward.

Nozzles: Air induction nozzles with strainer in bayonet fit non-drip nozzle holders at 50cm spacings.

Controls: 3 outlet manual control valve with pressure regulator. Mounted forward for easy access.

Tank: Low profile, 400/600/800L polytuff impact resistant polyethylene construction, external sightline with floating ball and non-spill offset screw-down lid with single breather. 15L fresh water tank with screw down lid and on/off tap. 4L toolbox with polyethylene lid.

Frame: Fully galvanised steel, cat I & II linkage on 400L, cat II linkage on 600L and 800L.

Agitation: Bypass agitation.

Pressure Gauge: 0-25 Bar dual stage glycerine filled gauge.

Filtration: Lid strainer, suction line strainer and nozzle strainers.

Hose Reel: Fitted with rear-mounted Eco hosereel, 30m of 10mm hose and Spotjet spraygun with adjustable spray nozzle.

PTO Driveshaft: Quality driveshaft with quick release pins & safety cover.

Options:

- 14L foam marker (single side)
- 16L foam marker (double side)
