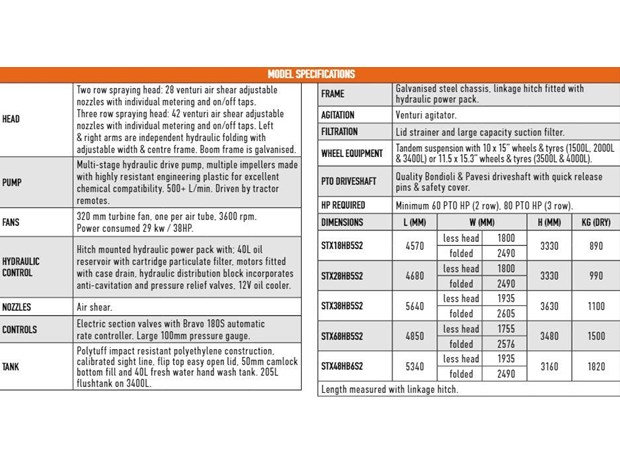

Specifications:

Market: Viticulture.
Tank Size (L): 4,000
Connection Type: Trailed
Min PTO hp: 60
Pump Size (L/min): 500+
Height / Width / Length (mm): 3,160 / 1935 (less head), 2490 (folded) / 5340
Product Weight (kg): 1,820 (dry)
Application: Vineyards

Features:

Head: Two row spraying head: 28 venturi air shear adjustable nozzles with individual metering and on/off taps. Three row spraying head: 42 venturi air shear adjustable nozzles with individual metering and on/off taps. Left & right arms are independent hydraulic folding with adjustable width & centre frame. Boom frame is galvanised.

Pump: Multi-stage hydraulic drive pump, multiple impellers made with highly resistant engineering plastic for excellent chemical compatibility. 500+ L/min. Driven by tractor remotes.

Fan Size: 320 mm turbine fan, one per air tube, 3600 rpm. Power consumed 29 kw / 38HP.

Hydraulic Control: Hitch mounted hydraulic power pack with; 40L oil reservoir with cartridge particulate filter, motors fitted with case drain, hydraulic distribution block incorporates anti-cavitation and pressure relief valves, 12V oil cooler

Nozzles: Air shear.

Controls: Electric section valves with Bravo 180S automatic rate controller. Large 100mm pressure gauge.

Frame: Galvanised steel chassis, linkage hitch fitted with hydraulic power pack

Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, flip top easy open lid, 50mm camlock bottom fill and 40L fresh water hand wash tank.

Agitation: Venturi agitator.

Filtration: Lid strainer and large capacity suction filter.

Wheel Equipment: Tandem suspension axle with 10 x 15" tyres (1500L & 2000L) or 11.5 x 15.3" tyres (3500L).

PTO Driveshaft: Quality Bondioli & Pavesi driveshaft with quick release pins and safety cover.

HP Required: Minimum 60 PTO HP (2 row), Minimum 80 PTO HP (3 row).

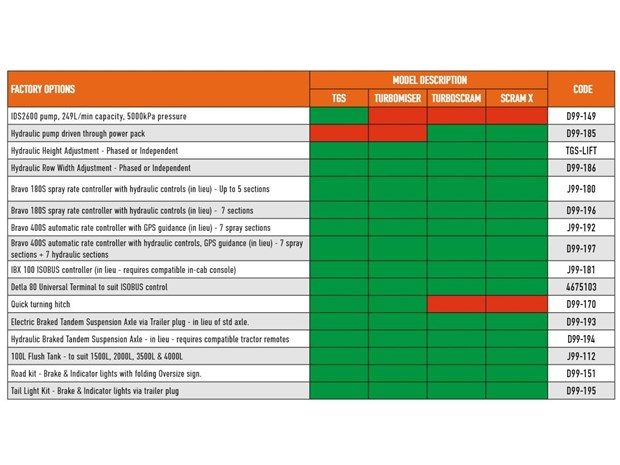

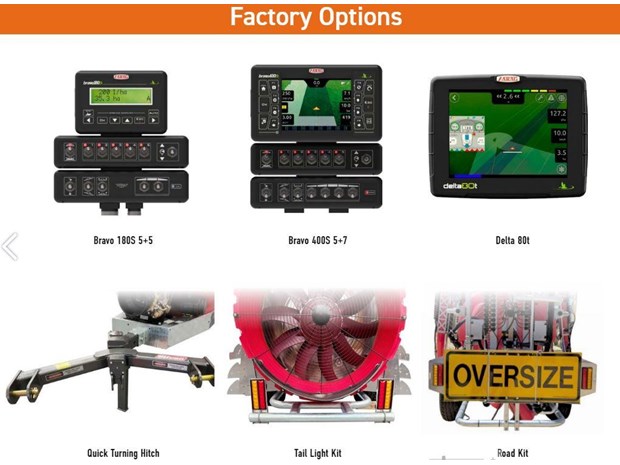

Options:

- IDS2600 pump, 249L/min capacity, 5000kPa pressure D99-149
- Hydraulic pump driven through power pack D99-185
- Hydraulic Height Adjustment - Phased or Independent TGS-LIFT
- Hydraulic Row Width Adjustment - Phased or Independent D99-186
- Bravo 180S spray rate controller with hydraulic controls (in lieu) - Up to 5 sections J99-180
- Bravo 180S spray rate controller with hydraulic controls (in lieu) - 7 sections D99-196
- Bravo 400S automatic rate controller with GPS guidance (in lieu) - 7 spray sections J99-192
- Bravo 400S automatic rate controller with hydraulic controls, GPS guidance (in lieu) - 7 spray sections + 7 hydraulic sections D99-197
- IBX 100 ISOBUS controller (in lieu - requires compatible in-cab console) J99-181
- Detla 80 Universal Terminal to suit ISOBUS control 4675103
- Quick turning hitch D99-170
- Electric Braked Tandem Suspension Axle via Trailer plug - in lieu of std axle. D99-193
- Hydraulic Braked Tandem Suspension Axle - in lieu - requires compatible tractor remotes D99-194
- 100L Flush Tank - to suit 1500L, 2000L, 3500L & 4000L J99-112
- Road kit - Brake & Indicator lights with folding Oversize sign. D99-151
- Tail Light Kit - Brake & Indicator lights via trailer plug
