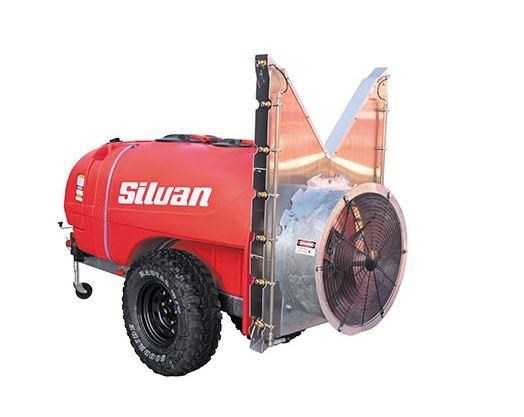

Trailed air assist Compact Supaflo 1000 litre sprayer with a 93 L/min diaphragm pump, 700mm fan and electric valve controls.

Ideal for narrow vineyards, orchards and trellis tomatoes.

Specifications:

Market: Horticulture. Viticulture
Tank Size (L): 1,000
Connection Type: Trailed
Min PTO HP: 40
Pump Size (L/min): 93
Height / Width / Length (mm): 1500 / 1100 / 2860
Product Weight (kg): 300
Application: Vineyards and Orchards

Features:

Pump: Silvan oil-backed diaphragm type with nitrile diaphragms and corrosion resistant, cast anodised aluminium body with brass heads and manifold. IDS960:93L/min. capacity, 5000kPa pressure. IDS1401:135L/min. capacity, 5000kPa pressure.

Fan Size: 700mm axial flow type, 8 bladed fan (or 800mm with 10 blades) with curved nylon reinforced blades and protective mesh cover.

Nozzles: Flip-over type for dilute/concentrate spraying. Ceramic HCI nozzles. 12 double sided nozzles (6 per side) twist on/off (7 per side on 800mm fan).

Gearbox: Single-speed with neutral position, oil-bath type.

Controls: 40 Bar electric section valves, master valve, electric pressure regulator and in-cab controls.

Main Tank: Polytuff impact resistant polyethylene construction, calibrated sight line, flip-top easy open lid, 40mm drain valve.

Flush Tank: 80L flush tank with top fill. Used to flush pump, filter, spray lines and nozzles.

Hand Wash Tank: 15L fresh water hand wash tank.

Frame: Galvanised steel with jockey wheel and adjustable drawbar.

Agitation: Pump bypass plus venturi agitator.

Pressure Gauge: 100mm, 0-60 bar glycerine filled gauge with bar increments.

Filtration: Lid strainer and suction line filter.

Wheel Equipment: 50mm axle with 15" tubeless tyres on painted rims (speed rating 30 km/h).

PTO Driveshaft: Quality driveshaft with quick release pins and safety cover.

HP Required: Minimum 40 PTO HP.

Options:

- IDS1401 pump, 135L/min. capacity, 5000kPa pressure,
- 800mm fan (in lieu)
- Two-sided deflector (700mm fan)

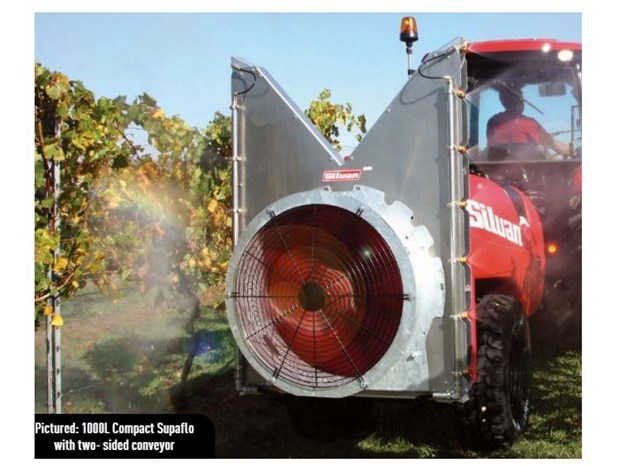

- Two- sided conveyor (700 + 800mm fan)
- Bottom air deflectors
- Wide axle (1650mm)
- Bravo 180S automatic rate controller
