EX240 Spreader - Made in New Zealand.

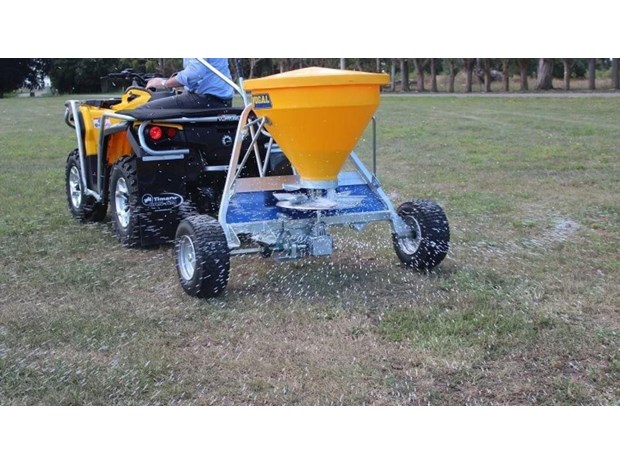

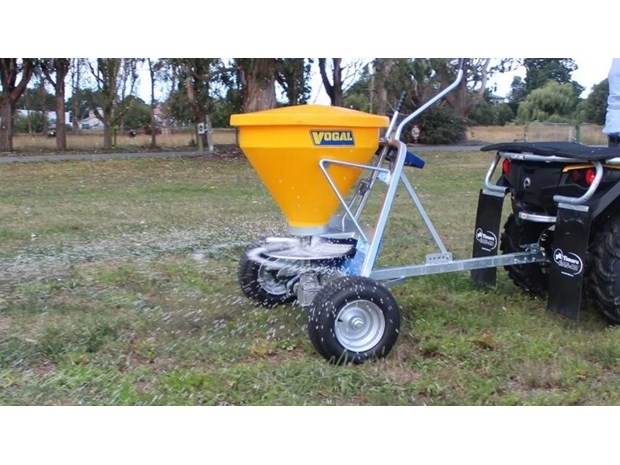

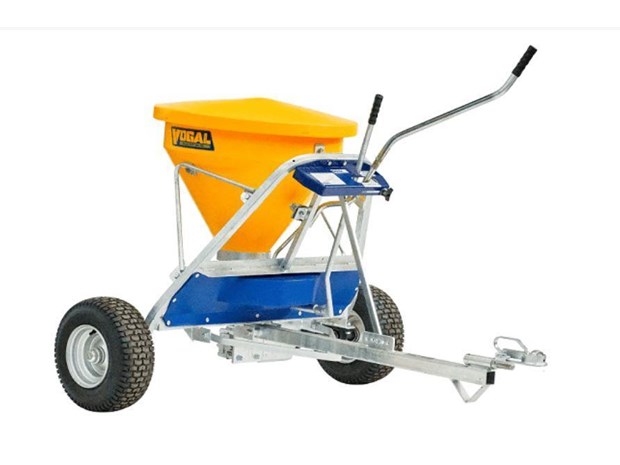

The Vogal EX240 fertiliser spreader is a premium, medium sized ATV / Quad bike spreader.

Incorporating the easy-lock drive engagement system along with the shutter aperture control. Simply select the spread rate you require and drive. The double bearing on the drive wheel also reduces load on the gearbox.

Also included in the design are a wide track width, stainless steel shutters, super strong drawbar, U.V. resistant plastic hopper & lid and adjustable spinner fins.

Built simple, built tough.

Capacity (240L) or (160kg)
Max Spread Width (3m Mag) or (12m Urea)
Dry Weight (92kg)
Overall Width (1,560mm)
Loading Height (1,240mm)

Optional - Mudguards (see pictures)
Optional - Side Chute

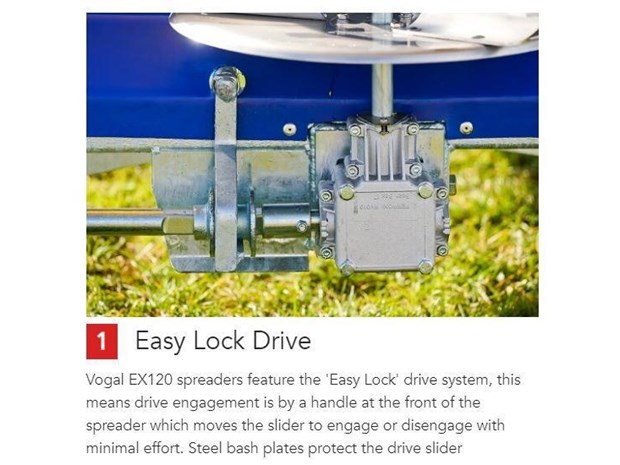

Vogal EX240 spreaders feature the 'Easy Lock' drive system. This means drive engagement is by a handle at the front of the spreader which moves the slider to engage or disengage with minimal effort. Steel bash plates protect the drive slider

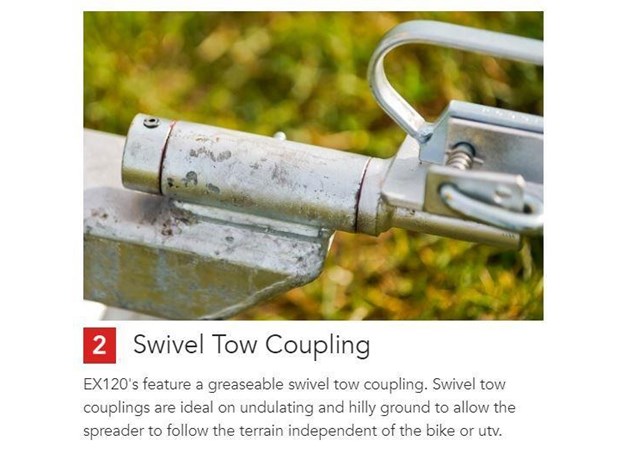

Includes a greaseable swivel tow coupling. Swivel tow couplings are ideal on undulating and hilly ground to allow the spreader to follow the terrain independently of the towing machine.

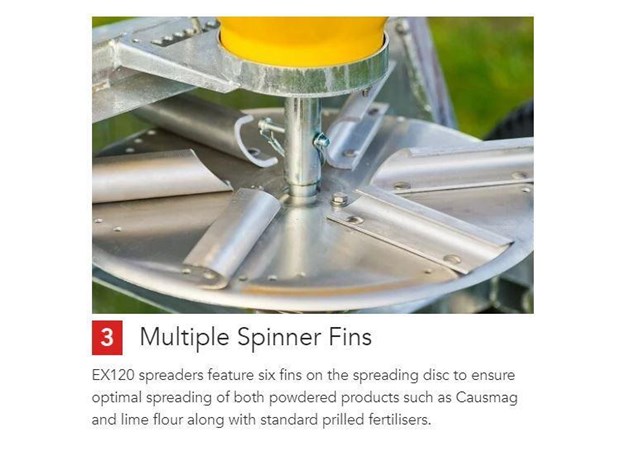

Features six fins on the spreading disc to ensure optimal spreading of both powdered products such as Causmag (Magnesium Oxide) and Lime flour along with standard pellet fertilisers.

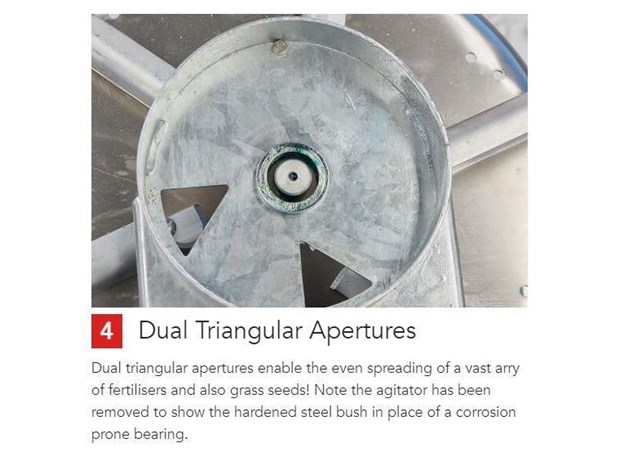

Dual triangular apertures enable the even spreading of a vast array of fertilisers and also grass seeds.

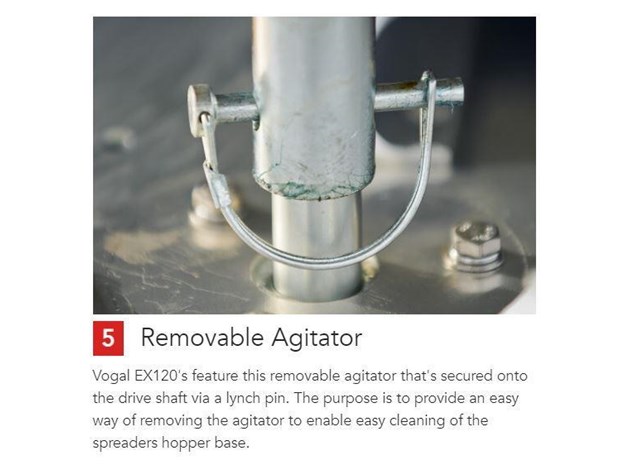

A Removable agitator that's secured onto the drive shaft via a linch pin. The purpose is to provide an easy way of removing the agitator to enable easy cleaning of the spreaders hopper base.

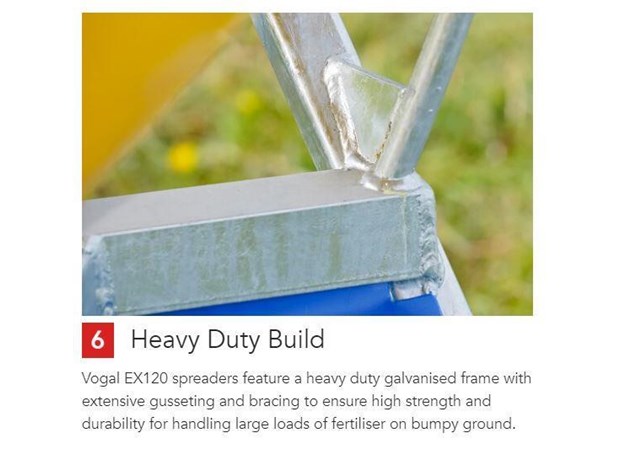

A heavy duty galvanised frame with extensive gusseting and bracing to ensures high strength and durability for handling large loads of fertiliser on bumpy ground.

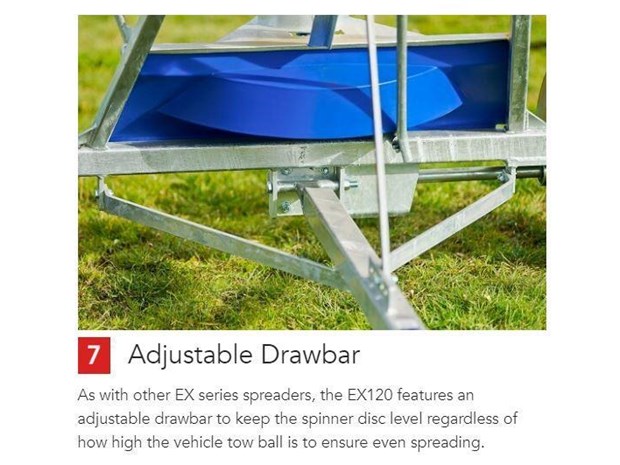

As with other sized EX series spreaders, the EX240 features an adjustable drawbar to keep the spinner disc level regardless of how high the vehicle tow ball is to ensure even spreading.

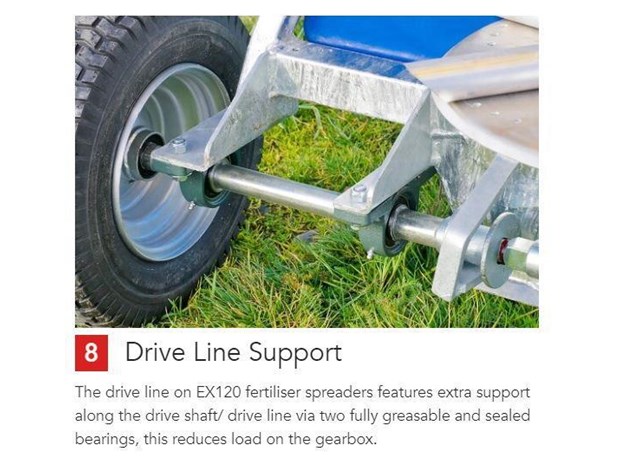

The drive line features extra support along the drive shaft/ drive line via two fully greasable and sealed bearings, this reduces load on the gearbox.

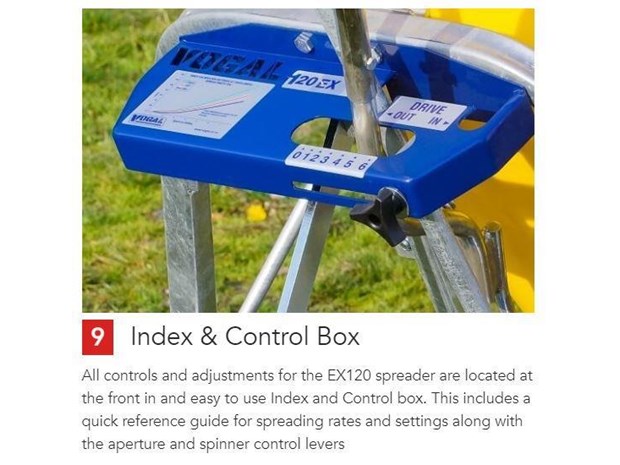

All controls and adjustments fare located at the front in and easy to use Index and Control box. This includes a quick reference guide for spreading rates and settings along with the aperture and spinner control levers.

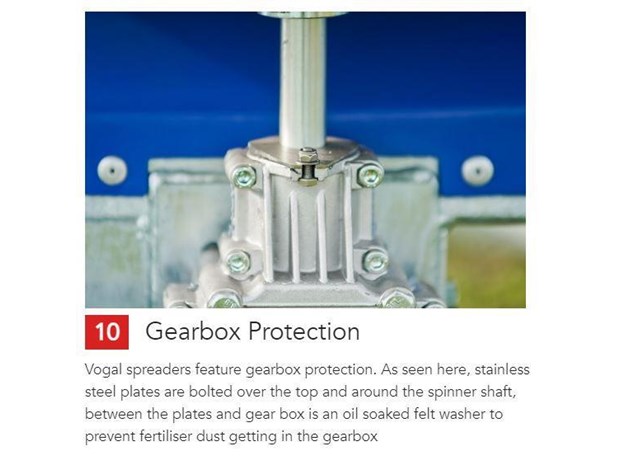

Gearbox protection - stainless steel plates are bolted over the top and around the spinner shaft, between the plates and gear box is an oil soaked felt washer to prevent fertiliser dust getting in the gearbox
