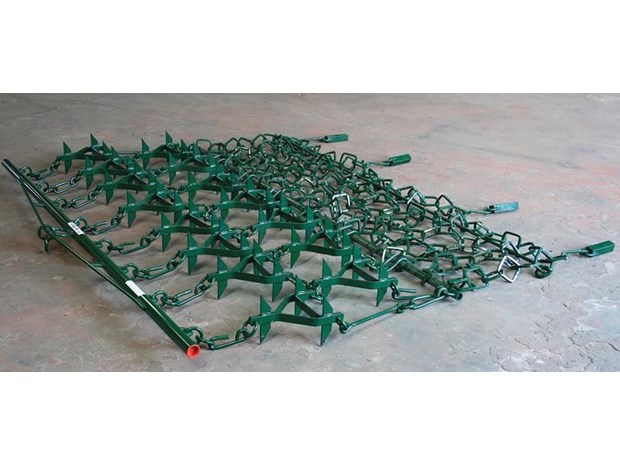

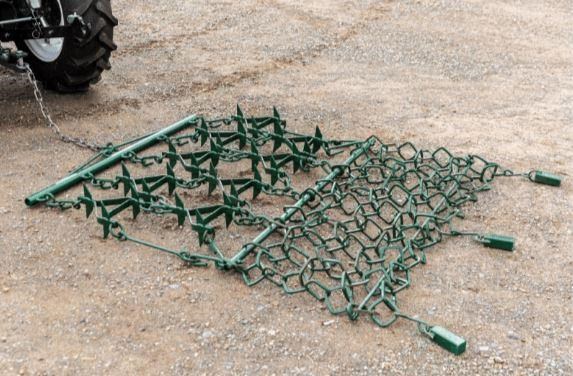

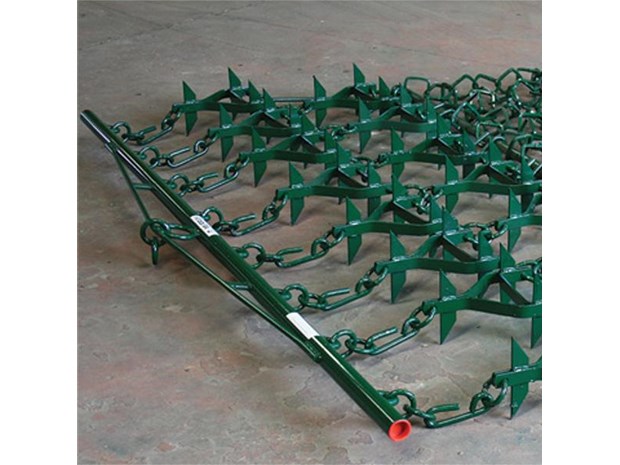

Series 05 Pastureland Harrow System - Light Duty.

Complete light duty harrow systems available from 1.52m (5ft) to 6.09m (20ft) configurations, in standard/single-mesh and super/double mesh versions. Each set of Murray Pastureland Harrows is supplied complete with a steel drawbar.

The Murray Pastureland Harrow System is recommended for pasture establishment, maintenance and renovation applications. Ideal for breaking down and distributing animal manures and other organic matter evenly across the whole pasture, using a Series 05 will encourage pasture growth. This light duty harrow is suitable generally for pasture areas of less than 100 acres (40 hectares) and tows easily behind small and medium size tractors.

Murray Series 05 Pastureland Harrows utilise four rows of double-sided tripod tine units which slice through patts, clods and coarse vegetation. The tripod section is followed by heavy steel square chain mesh which further pulverises and spreads the manure and organic matter and revitalises the pasture. The standard single-mesh chain Murray Pastureland Harrow has 8 rows of chain complete with a spreader bar and drag weights. Where greater penetration and a more aggressive action is needed, the Murray super double-mesh chain Pastureland Harrow may be used, which has 15 rows of square chain mesh. The extra chain length and weight ensure a thorough processing of material.

The Series 05 Pastureland Harrows can be used in conjunction with the Murray Series 21 3-point linkage Harrow Hoist Frame for ease of transportation.

For larger field operations, Murray Agricultural Equipment manufactures the Series 20 Heavy Duty Pasture Harrow System.

100% Australian made and owned.

Features:

- Tine Spacing 51mm (2in)
- Tine Length 85mm (3 11/32in) approx
- Centre to Centre of Front Hooks 305mm (12in)

Drag Type Standard 0.76m (2ft6in) Deep Mesh Chain:

Model 5020 Coverage: 1.52m (5ft) 82kg
Model 5006 Coverage: 1.83m (6ft) 99kg
Model 5021 Coverage: 2.44m (8ft) 129kg
Model 5022 Coverage: 3.04m (10ft) 172kg
Model 5023 Coverage: 3.65m (12ft) 213kg
Model 5024 Coverage: 4.57m (15ft) 269kg
Model 5003 Coverage: 6.09m (20ft) 380kg

Hoist Lift Type (Series 21) Standard 0.76m (2ft6in) Deep Mesh Chain:

Model 5025 Coverage: 5ft 132kg
Model 5007 Coverage: 6ft 147kg
Model 5026 Coverage: 8ft 179kg
Model 5027 Coverage: 10ft 222kg
Model 5028 Coverage: 12ft 263kg
Model 5029 Coverage: 15ft 332kg

Drag Type Super 1.5m (5ft) Deep Mesh Chain:

Model: 5067 Coverage: 1.52m (5ft) 123kg
Model: 5008 Coverage: 1.83m (6ft) 133kg
Model: 5030 Coverage: 2.44m (8ft) 173kg
Model: 5031 Coverage: 3.04m (10ft) 225kg
Model: 5032 Coverage: 3.65m (12ft) 292kg
Model: 5033 Coverage: 4.57m (15ft) 349kg
Model: 5004 Coverage: 6.09m (20ft) 490kg

Hoist Lift Type (Series 21) Super 1.5m (5ft) Deep Mesh Chain:

Model: 5068 Coverage: 5ft 170kg
Model: 5009 Coverage: 6ft 185kg
Model: 5034 Coverage: 8ft 230kg
Model: 5035 Coverage: 10ft 280kg
Model: 5036 Coverage: 12ft 347kg
Model: 5037 Coverage: 15ft 417kg

Complete Set Comprises of Front Drawbar, Tine section, Mesh Chain section (and Series 21 3-Point Linkage Hoist Frame and Lift connectors if Hoist Lift type specified.

Model Numbers 5029 and 5037 also feature a Model Number 5071 Rear Lift / Hoist extension bar.

Individual panels, chains and parts also available for sale.

• Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.
