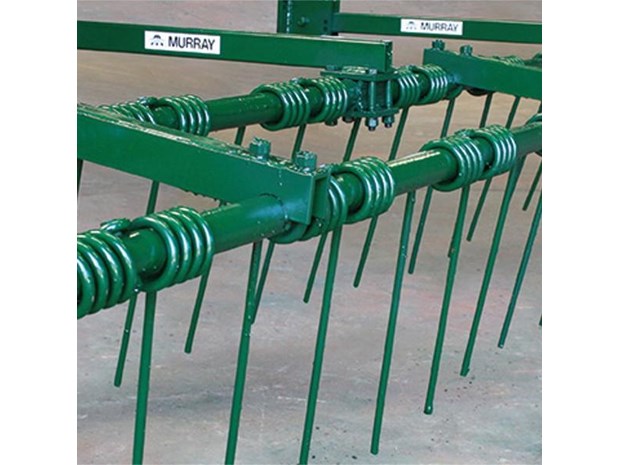

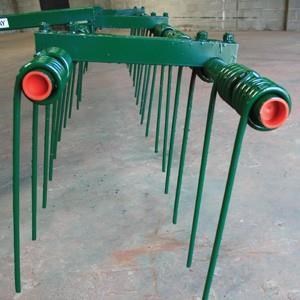

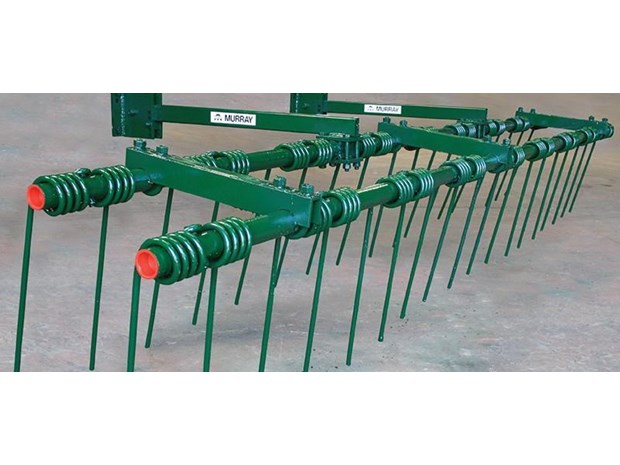

Series 30 2.13m Mounted Spring Tine Harrow System - Light Duty 2 Rank- Straight Tines.

The Series 30 Light Duty is the perfect implement for sandy to light soils. Specifically designed to increase trash flow using wide spacing between each straight tine, the 2 rank is a lighter duty harrow available in five sizes ranging from 1.78m (510) to 3.20m (106). Each section is supplied complete with two mount arms.

Harrow depth control is adjustable by means of specially designed cam-action fitting within the mount arm.

Specifications:
- Coverage: 2.13m
- Weight: 62kg
- Tine spacing 85mm (3 3/8) 2 Rank.
- Tine Diameter 10mm Straight Tine.
- Tine length 385mm (15) approx.
- Rank Spacing 324mm (12 3/4").
- 2 Mount Arms per unit.
- Mount clamp suits 81mm to 100mm (3 1/4 to 4) square frame positioned on the flat or on the edge (Spacers
required for 75mm [3] square frame).

Features:
- May be attached to the rear bar of light duty cultivators, seeding drills, etc.
- Unit features two Series 30 Mount Arms.

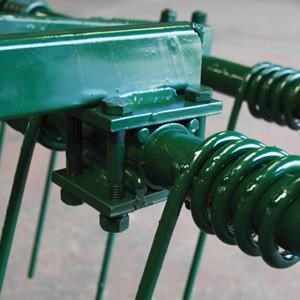

- A cam incorporated in the mount clamp adjusts the height of the Harrow Tine Section.


All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
