Murray 1.37m, Series 06 Kinked Spring Tine 3 Rank Harrow System - Medium Duty- Complete Unit - 6002.

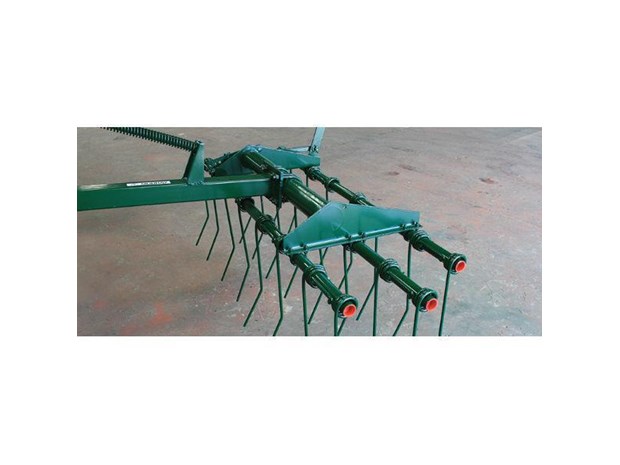

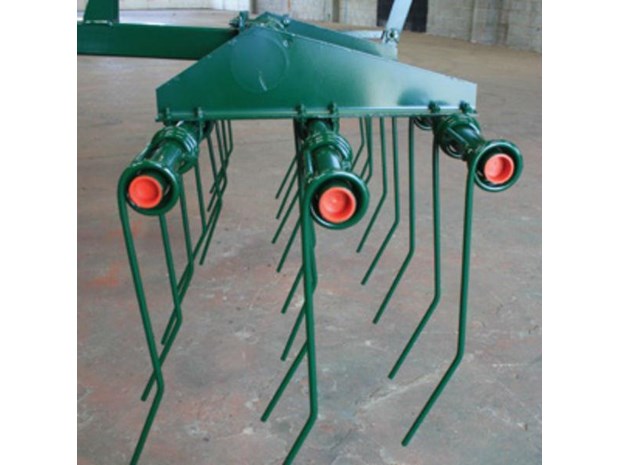

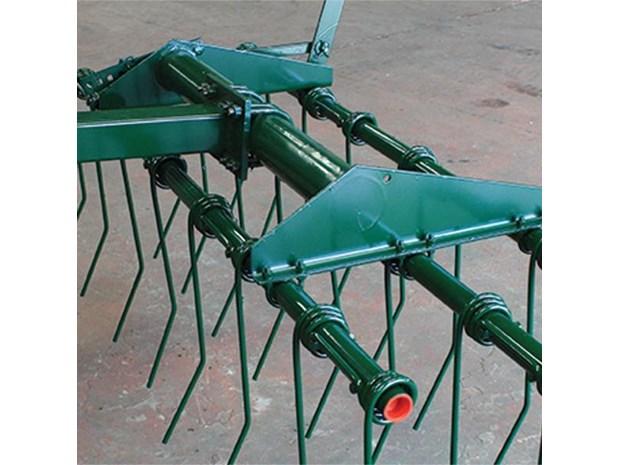

The Series 06 is a medium duty Spring Tine Harrow System popular with farmers for levelling operations in conjunction with primary and secondary tillage implements.

Series 06 Harrows employ double spring tines available in Kinked or Straight Tines, both 10mm in diameter. The tine angle is adjustable to suit your field conditions.

3 rank versions are available in three sizes ranging from 1.37m (4ft 6in) to 2.28m (7ft 6in). Murrays also manufacture an extra wide 14in (335mm) Rank Spacing Straight Tine units which seeks to provide superior trash flow handling capabilities.

Manual lifting has been eliminated with harrows able to be folded and travel with the principal implement.

Specificatons:
- 1.37m
- Weight: 64.5kg
- Tine Spacing for 3 rank models - 75mm (3in)
- Tine diameter is 10mm, Kinked (standard) or Straight Tine (Optional)
- Tine Length 450mm (17 3/4in) approx
- Rank Spacing 235mm (9 1/4in) STD 3 Rank
- 1 Mount Arm per unit

Features:

- Kinked design Tines as standard.
- Straight design Tines optional.
- This Harrow is designed to fit on to the rear bar of scarifiers, chisel plows, cultivators etc.
- Adjustable Tine angle.

Optional:
- Straight Tines

• Murray Harrows must be pulled (towed) by a tractor correctly fitted with an approved rollover protection structure. Murray Harrows are NOT intended for use with an ATV or Ride On Lawn Mower.
