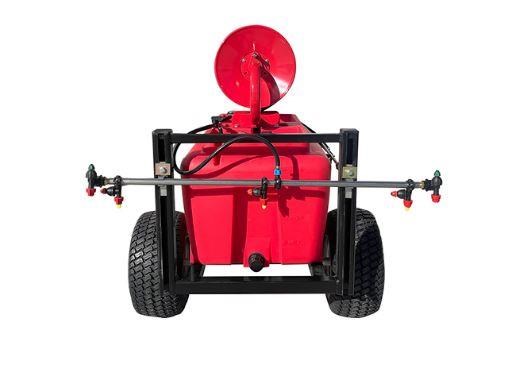

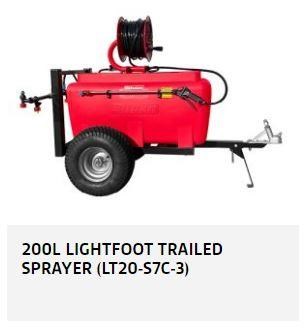

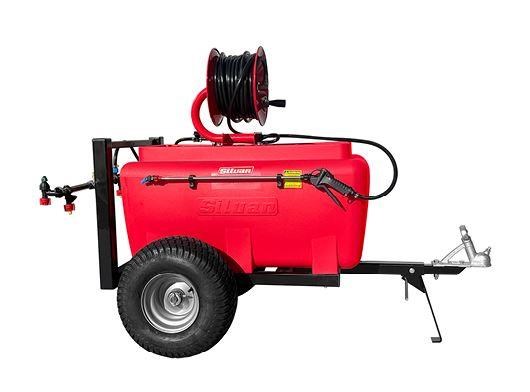

The 200L Lightfoot with General Purpose Boom is a versatile agricultural spraying system.

It features a 12V Smoothflo pulsation-free pump, providing a smooth and consistent spray. With an open flow of 7 L/min or a maximum pressure of 8 Bar / 120 psi, it ensures efficient spraying.

The system includes an on/off switch and a 3m battery cable with alligator clips for easy operation. It comes with a Spotjet spray gun with an adjustable nozzle for precise application.

The general-purpose spray boom offers a wide 4m to 7m spray swath, with the option to independently control all nozzles.

Additionally, it has a convenient 30m manual hose reel for added flexibility.

Tank Size = 200L
Pump Size = 7 L/min
Max Pressure = 120 psi
Product Weight = 79kg
Height / Width / Length (mm) = 1240 / 1000 / 1500

Tank: Impact resistant UV Stabilized Polytuff Tank with moulded 8mm brass inserts in base of tank for securing to the trailer. Fitted with a rear 1 ¼ drain plug assembly and a 255mm breather lid basket strainer and external suction filter

Trailer: Heavy duty and powder coated. Extendable Drawbar (0 - 400mm) and Parking stand. Features a 50mm ball Lockable Coupling. A solid steel 25mm axle with Steel rims along with 4 ply Pneumatic tyres (18 x 8.50-8)

Pump Specifications:

A 12V DC electric Aquatec pump (Model DDP-552A) with auto bypass and electric pressure sensing switch. Pulsation free. Open flow up to 7 litres/minute, maximum pressure 120 psi. Also features an On/Off switch along with 3m of battery cable with alligator clips

Hose Reel: Powder coated steel with lockable hub. A 30m x 10mm ID hose with the ability to mount in a North/ South or East / West position

Spray Gun: A spot jet spray gun with 600mm stainless steel lance and adjustable nozzle (410-51). Stored on the side of the tank for convenience

Spray Boom: A 1/2 Stainless steel spray tube where all 5 nozzles can be independently turned on and off. A 3 x AIXR11002-VP Air Induction Nozzles fitted to non-drip nozzle bodies at 50 mm spacing's. 2 x OC-04 Off Centre End Nozzles and a spray width up to 7 m with sliding adjustable boom height
