450MM 4 Series Auger (Heavy conditions-(MFT) Multi Facet Tungsten-Hard ground) up to 5T for Ramdrill PHD -Hydraulic Driver.

Price inclusions: Auger, teeth, pilot, pin and clip.

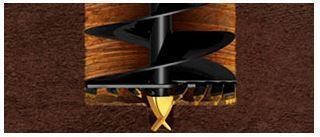

A4 earth

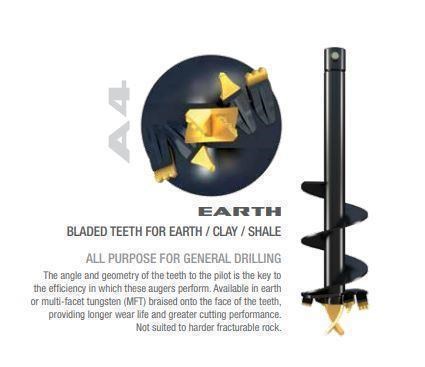

Drill holes in light earth conditions and clay. Numerous teeth options are available for most ground conditions. Available in Earth, Tungsten, or MFT for general drilling. Easy PADLOC knock in and out teeth require no special tools.

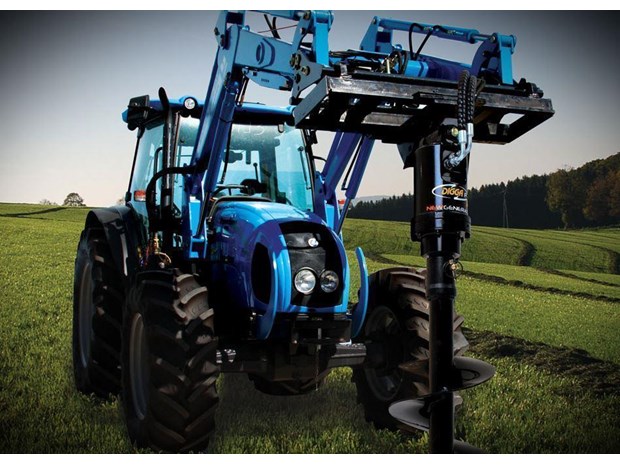

Our 4 Series augers boast effective cutting heads for efficient drilling, and suit mini loaders, skid steer loaders, and excavators up to 5T. Depending on ground conditions, you can choose a bladed or tapered cutting head, or rotating rock picks. For deeper holes, a full range of auger extensions are available for your specific requirement.

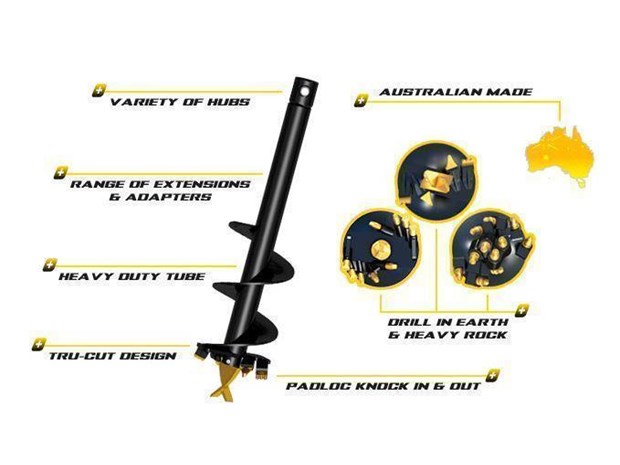

Features:

- True cut design ensures a 300mm Auger drills a 300mm hole.
- Drive adaptors & extensions to maximise drilling depth.
- Shallow pitch flights for optimum removal of spoil
- Robust Auger body construction for long life
- Heavy duty tube with highest grade steel
- Variety of hub options.

Specifications:

- Drilling Conditions: General & Clay
- Standard Hub: 65mm Round

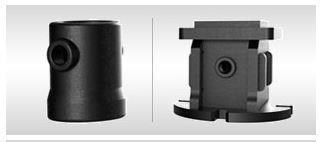

- Hub Options: 50.8 mm Round / 57 mm Square / 75 mm Square
- Overall Length: 1200 mm
- Flights (Lead): 8 mm
- Flights (Carry): 8 mm
- Teeth: TS
- Pilot: PM-SQ
- Ideal Drives: ML / PDD - PD4

Optimum Drilling Speeds - RPM:

- Earth: 55-65
- Clay: 45-55
- Shale (Fracturable Rock): 25-45
- Heavy Rock: N / A


All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
