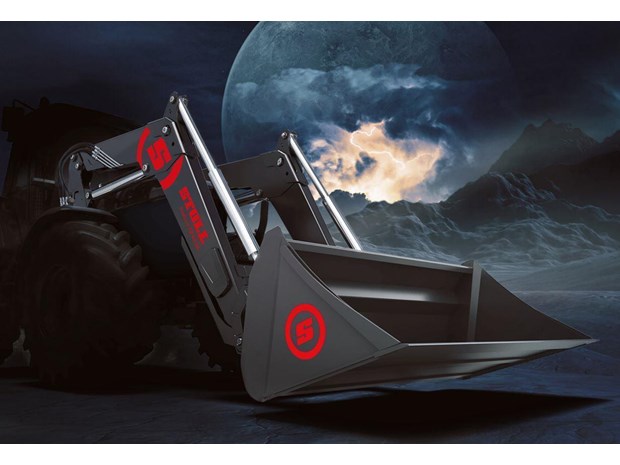

BURDER STOLL FZ45 FRONT END LOADER (90 - 140 HP) (41 - 29 LPM) for sale

Price: $31,559
Experience the full power of the STOLL ProfiLine Next Generation. The amazing best values in all areas ensure the highest quality in lifting capacity and lifting height, stability and loading speed. In addition to this, the individually selectable accessories from the ProfiLine Next Generation fit in perfectly with your needs as a farmer or contractor. True professionals for professionals.

German engineering is known all around the world for its high quality, performance and reliability. That is why we develop all STOLL front loaders with precisely these values in Germany. They combine state-of-the-art technology with innovative solutions and this is exactly what we expect from high-quality German products.

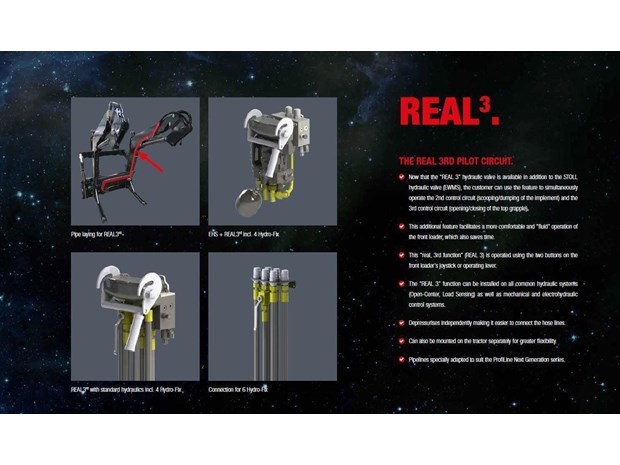

All Stoll FZ Loaders include Premium Internal Self Level System, 3rd Function and Manual Soft Ride, Single Lever Joystick, 2 Bank Valve and tractor hydraulics, Rams Horns Bump Guard and Subframe kit.

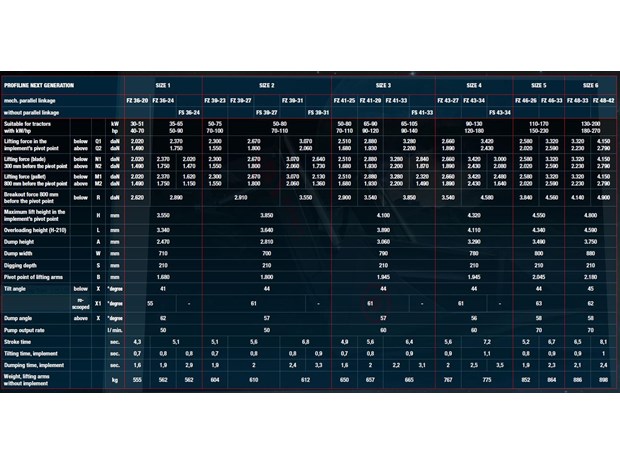

FZ45 Specifications:

Oil Flow: 41 - 29
HP Range: 90 - 140

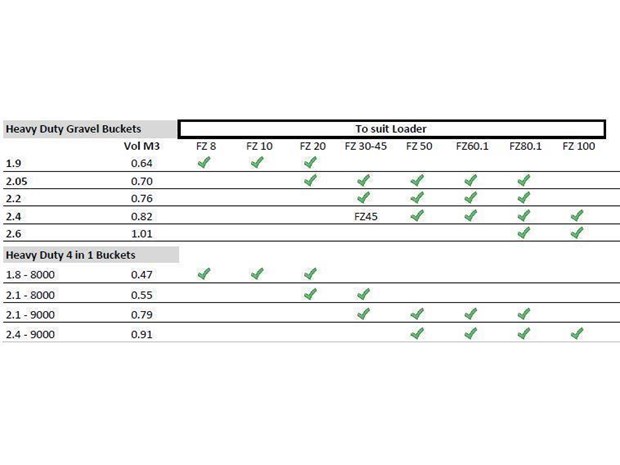

Buckets That Suit This Loader:

2.05, 2.2, 2.4 Heavy Duty Gravel Bucket
2.1 - 8000, 2.1 - 9000 Heavy Duty 4 in 1 Bucket

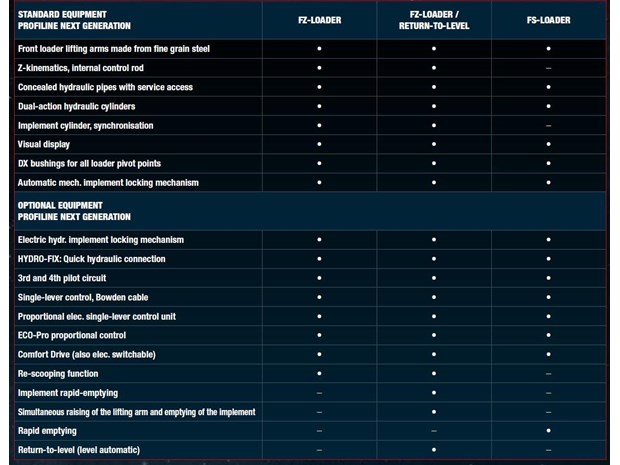

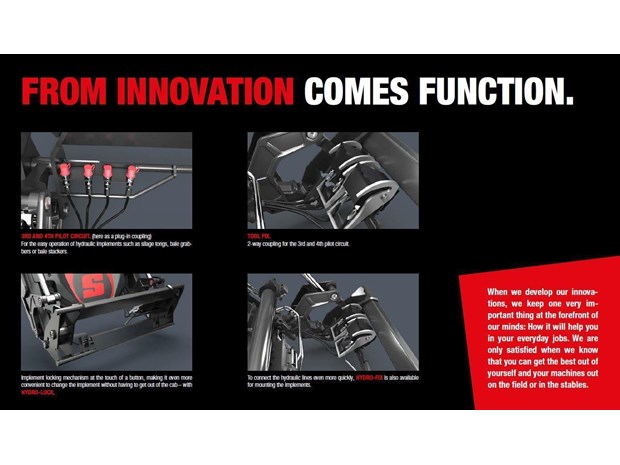

Loader Options:

- 4th function

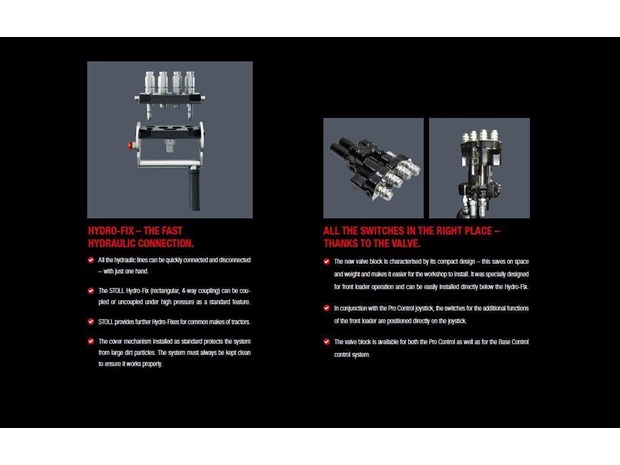

- Hydro fix - attachments per circuit
- Hydro fix - attachment side only

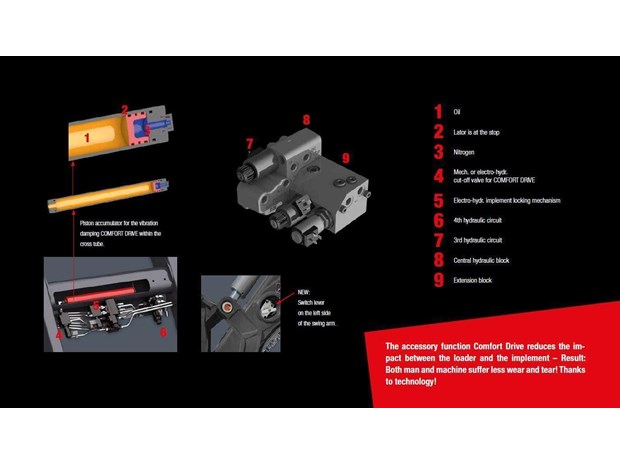

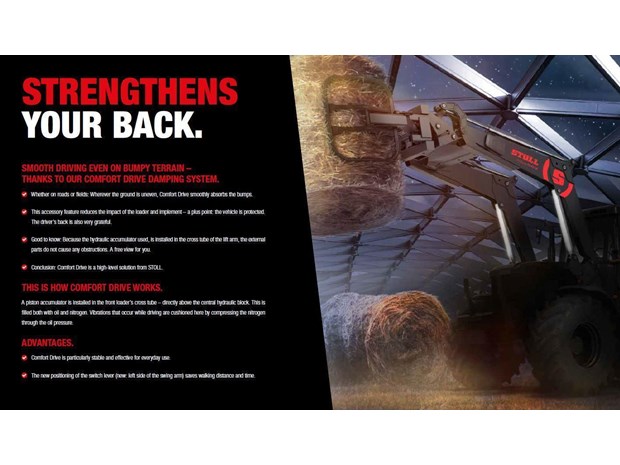

- Electric comfort drive upgrade

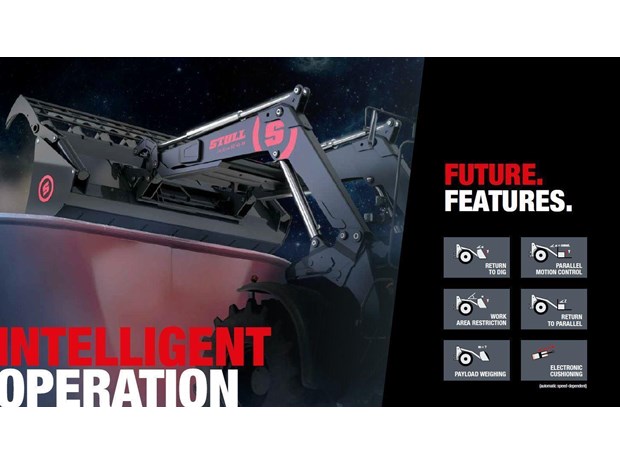

- Return to level
- Plus function
- Colour code sticker set
- Hydraulic quick change
- Full mesh grille guard

Control Options:

- Hoses to mid remotes
- Double rear diverter upgrade
- Tap and tee manual

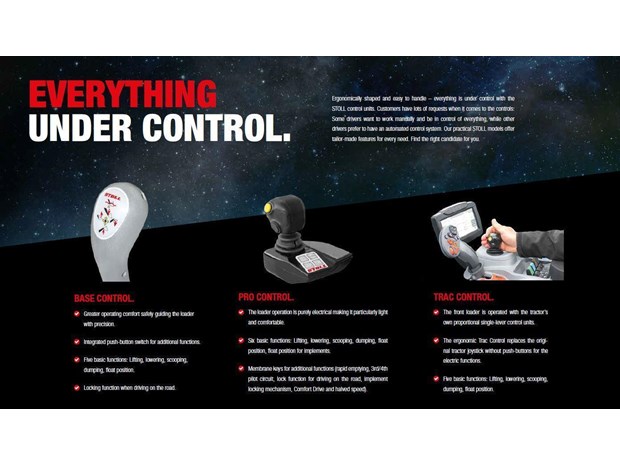

- Pro control joystick system upgrade

Further Information on this Loader:

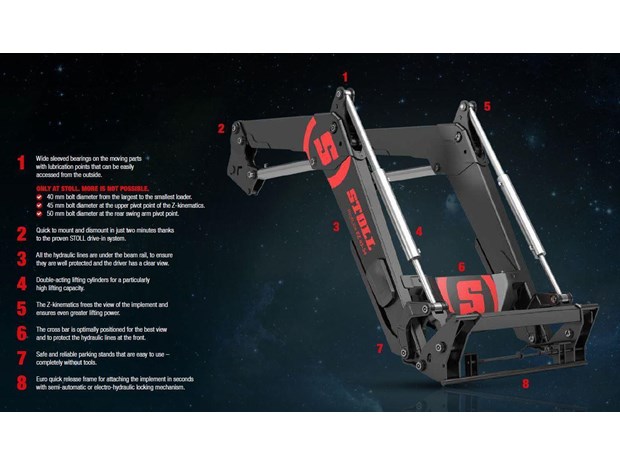

Full Power - Maximum Stable Construction:

- The ProfiLine FZ front loaders are made of fine grain steel - Advantage: Highest stability with maximum torsional rigidity at the same time.
- The lifting arm boom is bent from a single piece of steel - The control rods are installed inside the beam. All the hydraulic lines are well protected but can be freely accessed under the beam.
- Kinematics of the entire swing arm body adapted to modern tractors. This results in optimum positioning of the swing arm to relieve the front axle and the best possible clearance for steering angle and axle swing path.
- In order to avoid the need to regularly replace the hose lines by the lifting arms in accordance with DIN 20066, we use wear-free steel hydraulic pipes instead.

Stoll Attachment Components - less load on the tractor and a greater accurate fit:

- The attachment components can be installed perfectly on all common tractors that is why the designers at STOLL individually adapt every tractor model.
- Reduced load on the front axle thanks to the optimal positioning of the attachment components close to the drivers cab. This shifts the centre of gravity of the entire front loader to the centre of gravity of the tractor.
- Often the windscreen can only be opened together with a STOLL attachment component.
- The attachment components fit perfectly as they are individually adapted to each tractor.

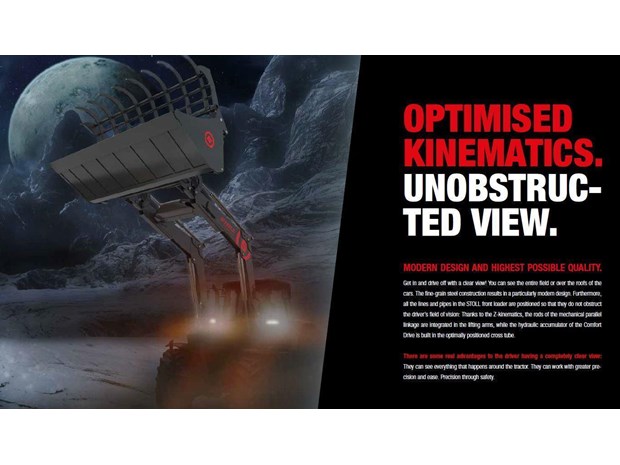

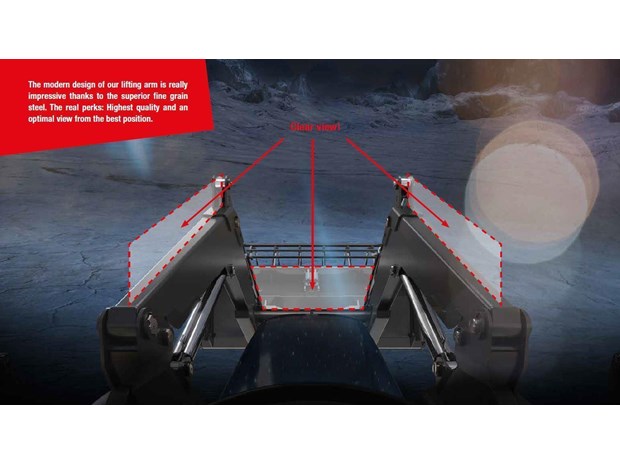

Z-Kinematics - best view and high performance:

- The rods of the mechanical parallel guide are located in the lifting arm booms - the basis of the Z-kinematics.
- This frees up the view for the driver. No parts above the lifting arms obstruct or are in the way. Another benefit: The front loader can also be mounted closer to the drivers cab - result: Reducing the load on the tractor by optimally positioning the attachment components.
- Front loaders with Z-kinematics have even greater lift capacities and breakout forces. There is no loss of lifting power.

Convincing benefits for you:

- The various front loader models fit perfectly on tractors from 50 to over 300 hp.
- Best quality fine-grained steel for a front loader with high torsional rigidity and stability.
- The extremely high values for the lifting capacity and height are impressive.
- Z-kinematics and the optimally positioned cross tube provide the driver with the best view of the implement.
- For maintenance work, all you need is a commercially available spanner to get to the lines.
- Best equipment for optional features so you can work with even greater efficiency:

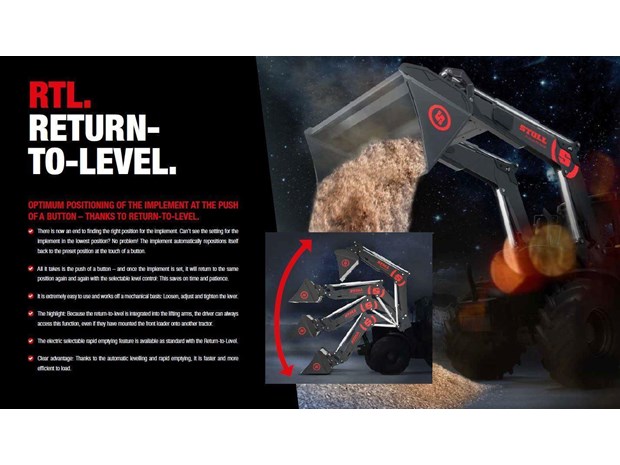

- Return-to-level, rapid emptying and re-scooping.

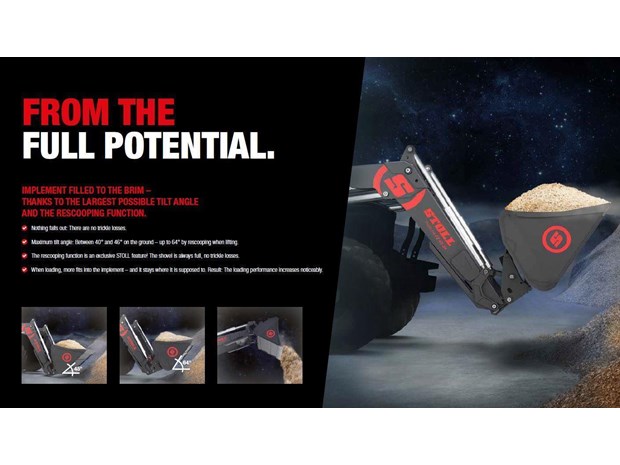

- Re-scooping series.

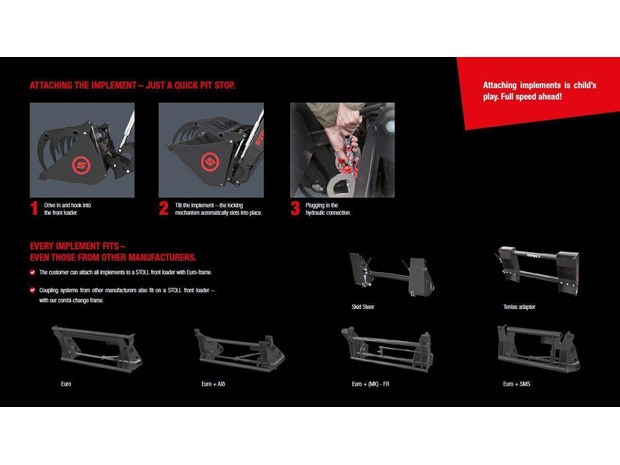

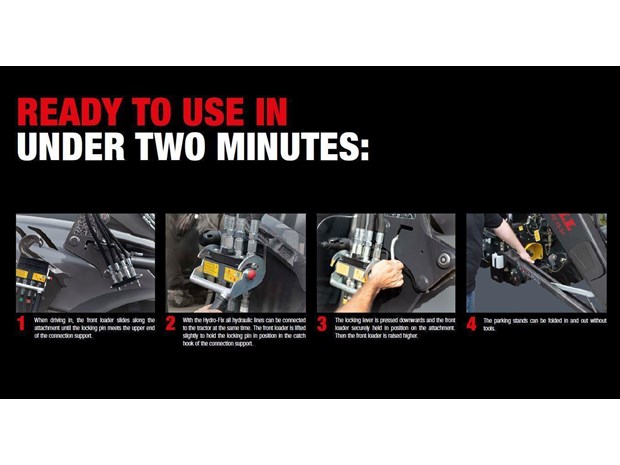

- Depending on the loader model, quick release frames are available for other coupling systems STOLL offers full flexibility.

So much more information included in the pictures!


All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
