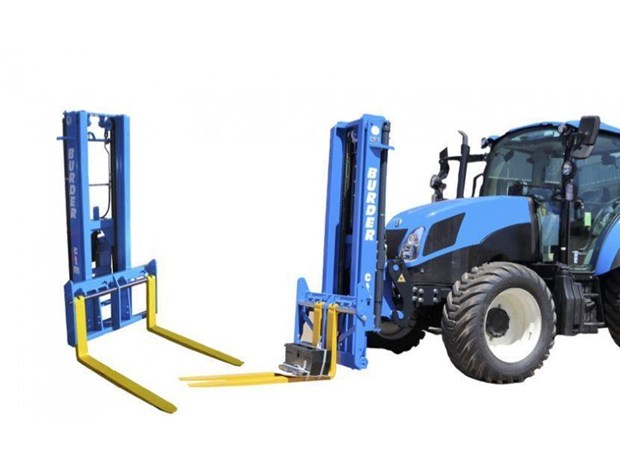

2 stage forklift. Mounted height at 300 ground clearance.

Burder builds 2 stage and 3 stage mast forklifts. The 2 stage mast is suitable for users with low height requirements. The 3 stage mast is the most common build for forklifts and is suitable for users who require more lift height than the 2 stage mast forklift.

Specifications:

Lift Height: 2500mm
Approx. Mast Height: 1950mm

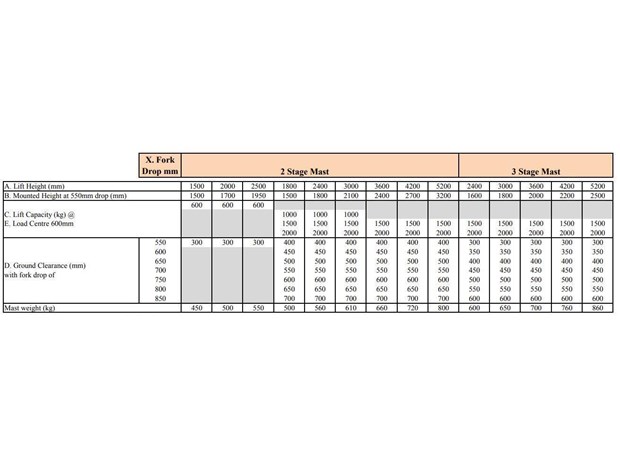

Capacity: 300kg Min, 600kg Max (further info in images)
Mast Weight: 550kg

Options:

Quick detach sub frame & compact tilt mechanism
Super steer sub frame
Side shift requires extra circuit on valve including hoses on mast
Hoses for tractor remotes 2ccts mid or rear
Hoses for tractor remotes 3ccts mid or rear
2 bank valve
3 bank valve ROPS only
4 bank valve ROPS only
Joystick for ROPS
Cables and joystick
3rd function electric
3rd & 4th function electric
1 x extra hose on mast including couplers
2 x extra hose on mast including couplers
Linkage mount including tilt ram
Fixed high back frame
Bolt on high back frame
Tine retainers (Anti Flip-Up)
Hydraulic soft ride (included in 4.2m & 5.2m units)
Hydraulic soft ride electric
Quick detach hooks for subframe
Weight sensor (pressure sensor in lift circuit, screen in cab) - Dinamica generale fork
Couplers on side shift rams & hoses
Anti-drop valves counterbalance style per circuit


All prices include GST. Please allow extra for freight.
Delivery is available Australia Wide.
Dealer enquiries welcome.
Finance is now available!
Contact Farm Supplies today for sale or more information!

Photos are for illustration only, and actual product may vary from those shown.
Prices are correct at time of posting the ad, but are still subject to change.
E & OE.
